Высококачественный Лидер продаж 24 в 94 Вт 3000 об/мин Н см 42 мм Bldc бесщеточный двигатель постоянного тока для
- Категории: DC Motor >>>
- Поставщик: Shanghai,PrimoPal,Precision,Motor,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Features
Description
PrimoPal’s PBL series brushless DC motors offer high performance, long life and low maintenance for applications requiring stable velocity control over a wide speed range, with frame size ranging from 42mm (NEMA 17) to 110mm (NEMA 42).
These 3-phase and 8-pole brushless motors are provided with hall signals for commutation and velocity loop feedback. Three designs are available to optimize your application’s performance with best cost-effective solution, which are transmission type, high torque type and high efficiency type. In addition to our standard models, custom-design brushless DC motors with a comprehensive accessory line of encoders, brakes, planetary and right angle gear reduction to meet your specific application needs.
Motor Customized Specification, Please Contact Us.
Model | PBLT42BS58-230 | PBLT42BS78-230 | PBLT42BS98-230 |
No. of Phases | 3 | 3 | 3 |
No. of Poles | 8 | 8 | 8 |
Rated Voltage (VDC) | 24 | 24 | 24 |
Rated Power (W) | 31 | 63 | 94 |
Rated Current (A) | 2.0 | 4.0 | 6.0 |
Peak Current (A) | 6.0 | 12.0 | 18.0 |
Rated Torque (N.m) | 0.1 | 0.2 | 0.3 |
Peak Torque (N.m) | 0.3 | 0.6 | 0.9 |
Rated Speed (rpm) | 3000 | 3000 | 3000 |
Rotor Inertia (g.cm2) | 37 | 42 | 49 |
Torque Const. (N.m/A) | 0.05 | 0.05 | 0.05 |
Back EMF Const. (V/Krpm) | 5.235 | 5.235 | 5.235 |
Line-Line Resistance (Ω) | 1.5 | 0.9 | 0.5 |
Line-Line Inductance (mH) | 1.3 | 0.6 | 0.3 |

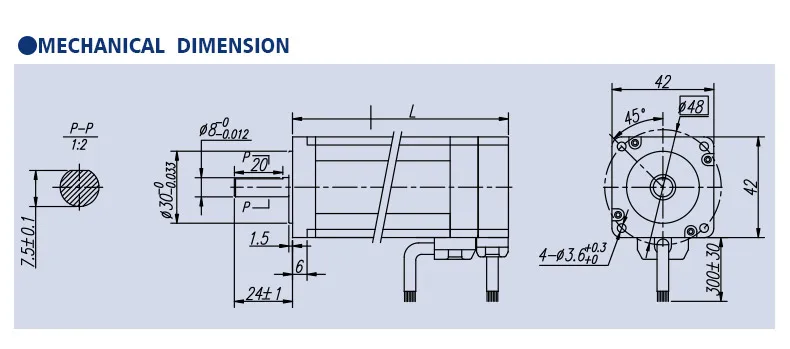

Length (mm) | 58 | 78 | 98 |
Weight (kg) | 0.4 | 0.9 | 1.3 |
Company Profile
Shanghai PrimoPal Precision Motor Co., Ltd.
PrimoPal Motor was established in 2004, located at the free-trade zone of shanghai, China, mainly focusing on stepper motors, linear actuators, brushless dc motors, servo motors, spindle motors , AC induction motors, DC motors, hub motors and other types of motors and related motion control products. Besides China's domestic markets, our products are also exported to many countries and regions, such as Europe, North, America, Russia, South Korea, India, Brazil, Singapore, Malaysia, Turkey, and so on.
Since establishment, PrimoPal Motor is committed to provide outstanding quality, economical solutions, impeccable support and after-sales service for every client. Our manufacturing bases are equipped with advanced quality testing devices, precise injection molding machines, auto high-speed punches, auto winding machines and other advanced manufacturing equipment. It makes us have the ability of continuously providing products with superior quality. Besides, we have an engineering team with many years of experience in motor design and application engineering. It can realize the different customized needs of customers.
For PrimoPal, the customer is not only a buyer, but also the friend who can grow up together.
Packing & Shipping
Product packaging
1. The lining uses EPE material for better protection.
2. Tight packaging to prevent the motor from sliding.
3. High-quality carton, not easy to break.
3. High-quality carton, not easy to break.
Transportation advice
If your delivery time is very urgent, we suggest you choose by courier or by air.
If it is not very urgent, we will suggest you choose by sea, which helps you save a lot of logistics cost.
If it is not very urgent, we will suggest you choose by sea, which helps you save a lot of logistics cost.
FAQ
Q1: Can I get more details and a better price?
Yes, please contact us firstly, thanks!
Q2: Are you a manufacturer?
Yes, we are manufacturer, having involved in the motor industry for 16+years.
Q3: Do you provide samples?
Yes, please contact us for sample request.
Q4: What's the delivery time?
Motors in stock: 1-3 days/Customized motor: 1-4 weeks.
Delivery date for bulk order depends on specific products and order quantity.
Q5: What's your warranty?
Our warranty is 12 months from shipment out of factory.
During the warranty period, we will repair or replace products which are proved to be defective.
If you have any questions, please contact us, we are very happy for your inquiry
