CM6241 обычный металлообрабатывающий горизонтальный токарный
- Категории: Machine Tool Equipment >>>
- Поставщик: Jiangsu,Bestech,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

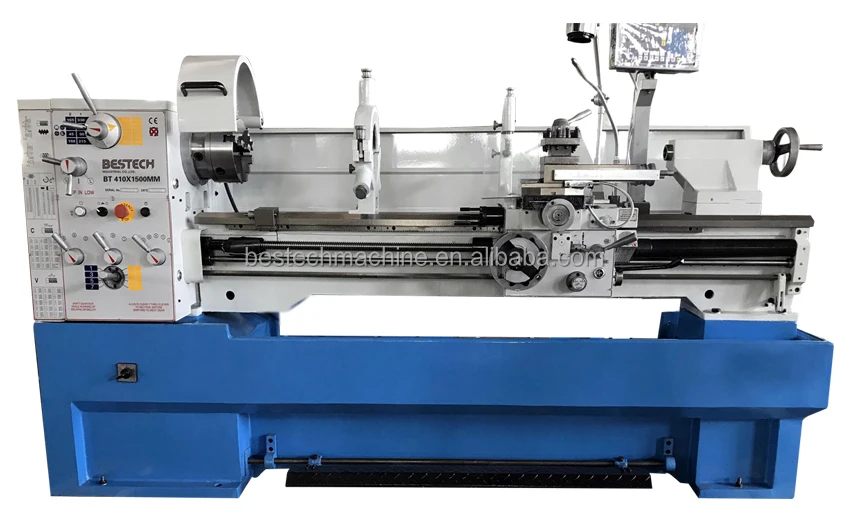

CM6241 Conventional metal working horizontal lathe machine
1.Widely useful, like Education, Factory use ect, operation easy.
2.Various speeds and thread cutting function are avaiable with gear box.
3.Induction-hardened and ground prismatic bed made from cast iron.
4.High precision and hardened spindle.
5.Safety magnetic and lock key European-standard switch.
6.Cost-efficient,precise and stable value.
2.Various speeds and thread cutting function are avaiable with gear box.
3.Induction-hardened and ground prismatic bed made from cast iron.
4.High precision and hardened spindle.
5.Safety magnetic and lock key European-standard switch.
6.Cost-efficient,precise and stable value.
Model | BT410 |
Swing over bed | 410mm (16") |
Max.swing over cross slide | 255mm(10) |
Swing in gap diameter | 580(22) |
Height of center | 205mm(8) |
Distance between centers | 1000mm(40)/1500mm(60) |
Width of bed | 250mm(10) |
Cutting tool max section | 20*20mm(3/4*3/4) |
Total travel of cross slide | 210mm(8.5) |
Compound rest travel | 140mm (5.5) |
Spindle bore | 52mm(2) |
Spindle morse taper in bore | D1-6 |
Lead screw thread | 4T.P.I |
Spindle speed range | 16 steps 45-1800rpm |
Threads imperial pitches | 45kdins 2-72 T.P.I |
Threads metric pitches | 39kinds 0.2-14mm |
Longitudinal feeds | 0.05-1.7mm/rev(0.002-0.067/rev) |
Cross feeds | 0.025-0.85mm(0.001-0.0335/rev) |
Range of module pitches | 18kinds 0.3-3.5M.P |
Range of diametral pitches | 21kinds 8-44D.P |
Tailstock quill diameter | 50mm(2) |
Total travel of tailstock quill | 120mm(4.75") |
Taper in tailstock quill | MT4 |
Spindle drive motor(double speeds) | 2.2/3.3kw(3/4.5HP) |
Coolant pump motor | 100W (1/8hp) |
N.W/G.W | 1160/1350kg or 1340/1565kg |
Packing Size | 2060/2560*900*1640mm |
Standard Accessories | Optional Accessories | ||
3-jaw chuck | Chip tray | Quick change tool post | |
4-jaw chuck | Follow rest | MT4 Rolling center | |
Dead center | Steady rest | CE Standard | |
Change gear set | Face plate | Holder guard | |
Wrench set | Toolbox &tools | 2 axis Digital readout | |
Oil can | Stand | 3 axis Digital readout | |
Splash guard | Cooling pump | Tapet turning attachment | |
Foot brake | Working lamp | ||
Details Images

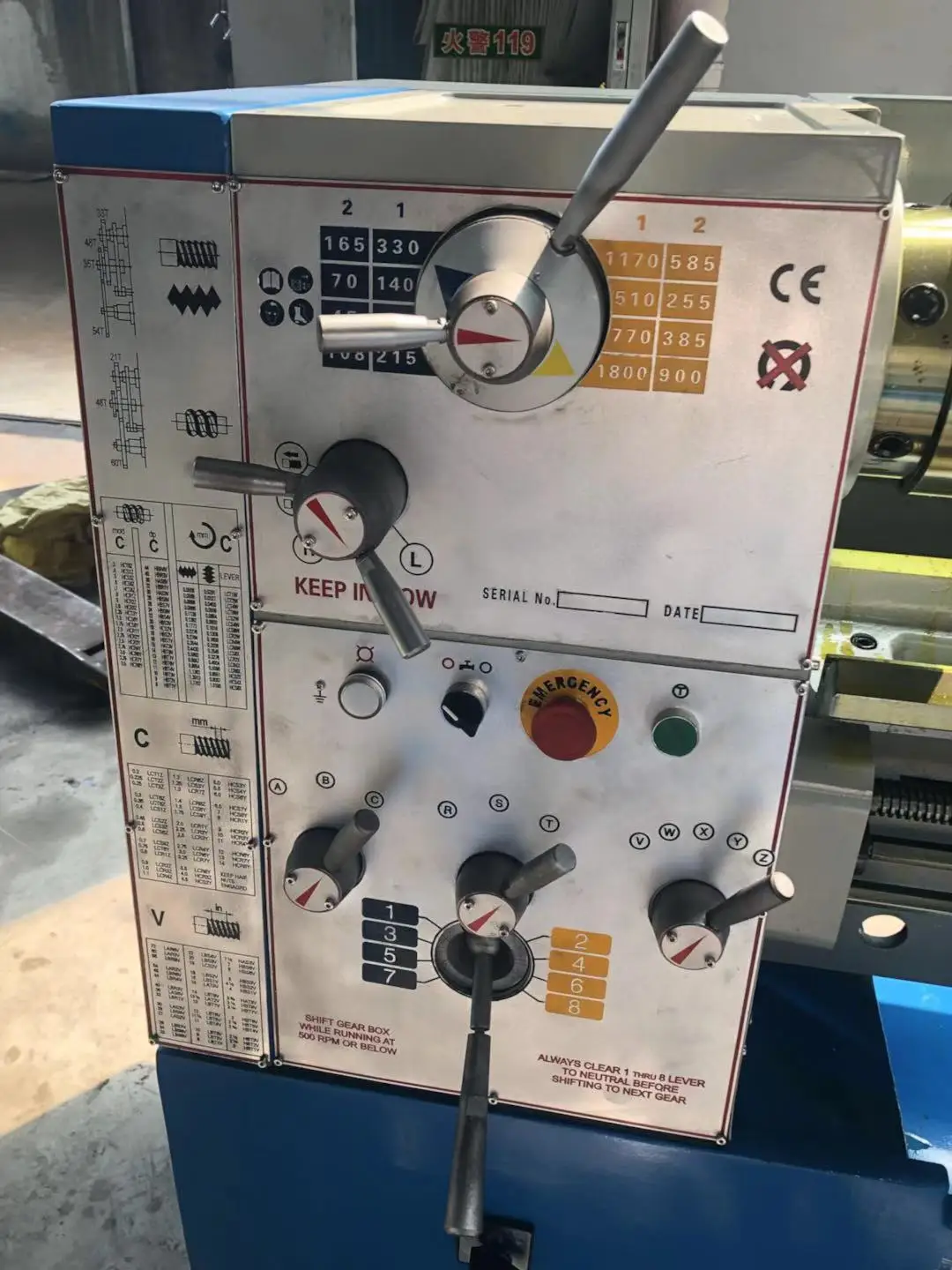

1) Hardened and ground
2) Running in an oil bath
3) Running on 2 readjustable precision taper roller bearings
4) Main spindle gearwheel smooths running,hardened and ground

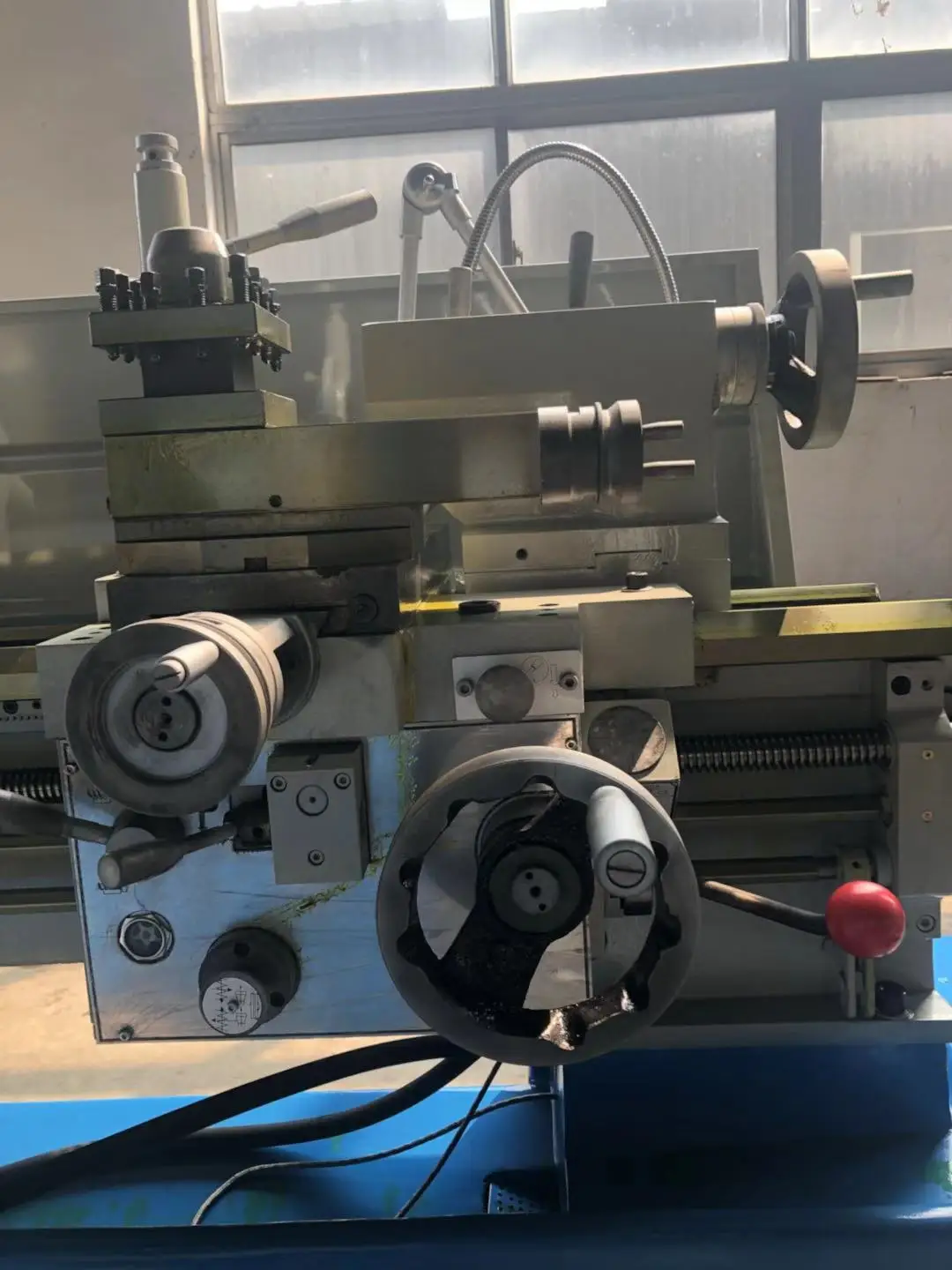

1) precisely worked
2) Quadruple tool holder
3) Handwheel with adjustable precision of 0.04/0.02mm
4) Range of adjustable via V-ledges
Company Profile
Related Products
FAQ
1)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba. We can reply you within 1 hours on work days, and within 24 hours on holidays.
2)Q:About us, trading company or manufacture?
A: We are the manufacture with more than 15 years experience, welcom to visit our factory.
3)Q:Can we start with start with small quantity? What's the MOQ?
A:We can accept orders with 1 unit.
4)Q: Can I customized my products and packages?
A: Of course sure, you can. We accept OEM, make your trademark on your machine body and do the package with you need.
5)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website according to your request. Or you can let our sellers know what is your request
secification or what is your parts, so let our sellers recommend suitable machine to you.
We do the machine more than 10 years, we are specialied, we have more than 10 QC contral the quality. Every machine will be tested
more than 6 times from the machine little details.
6)Q: How long can I get the machine?
A: Some machines we have stock, when get your payment we can send you at once.
We can delivery the samples within 5-10 day after getting your payment.
Usually, we also can send you the mass goods within 45 days.
We want to know:
(1)What is your Industrial Voltage?
(2) We strongly suggest you tell us size, material of your workpiece for our evaluation, if possible, better to send us your
workpiece drawing, so that we can recommend yuo mst suitable model!
A: You can make the inquiry online on Alibaba. We can reply you within 1 hours on work days, and within 24 hours on holidays.
2)Q:About us, trading company or manufacture?
A: We are the manufacture with more than 15 years experience, welcom to visit our factory.
3)Q:Can we start with start with small quantity? What's the MOQ?
A:We can accept orders with 1 unit.
4)Q: Can I customized my products and packages?
A: Of course sure, you can. We accept OEM, make your trademark on your machine body and do the package with you need.
5)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website according to your request. Or you can let our sellers know what is your request
secification or what is your parts, so let our sellers recommend suitable machine to you.
We do the machine more than 10 years, we are specialied, we have more than 10 QC contral the quality. Every machine will be tested
more than 6 times from the machine little details.
6)Q: How long can I get the machine?
A: Some machines we have stock, when get your payment we can send you at once.
We can delivery the samples within 5-10 day after getting your payment.
Usually, we also can send you the mass goods within 45 days.
We want to know:
(1)What is your Industrial Voltage?
(2) We strongly suggest you tell us size, material of your workpiece for our evaluation, if possible, better to send us your
workpiece drawing, so that we can recommend yuo mst suitable model!
