YT-H4E Высокая точность Бумага Электронный толщиномер ткани
YT-H4E Высокая точность Бумага Электронный толщиномер ткани
YT-H4E Высокая точность Бумага Электронный толщиномер ткани
YT-H4E Высокая точность Бумага Электронный толщиномер ткани
YT-H4E Высокая точность Бумага Электронный толщиномер ткани
YT-H4E Высокая точность Бумага Электронный толщиномер ткани
YT-H4E Высокая точность Бумага Электронный толщиномер ткани

YT-H4E Высокая точность Бумага Электронный толщиномер ткани


Поделиться:

Цена:2 700,00 $ - 2 850,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики





Product Overview

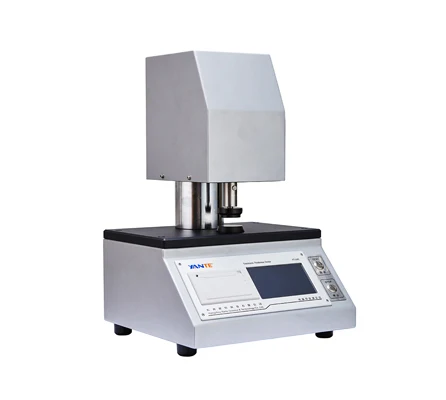

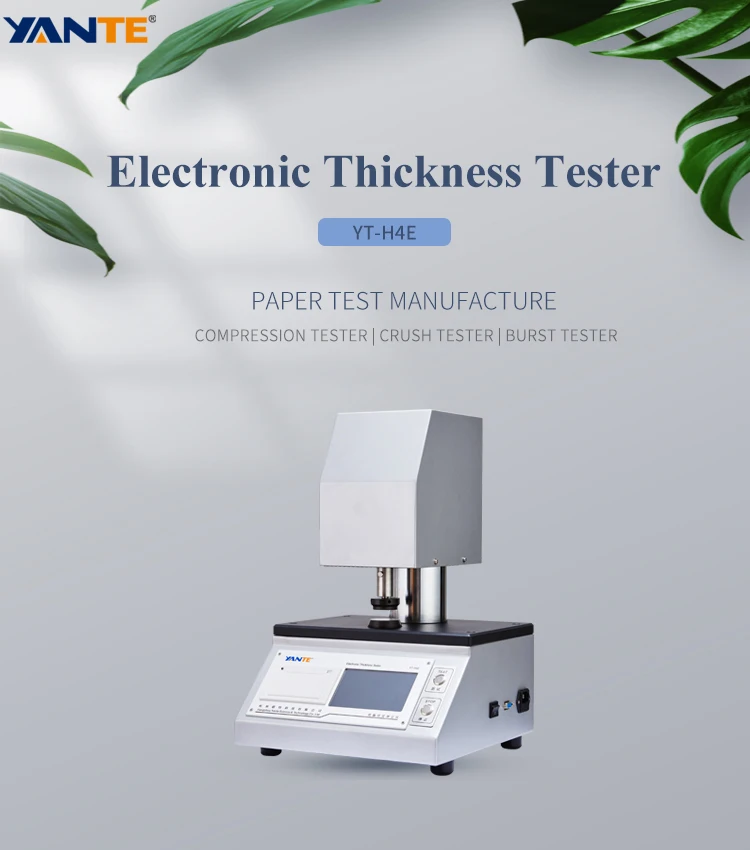

Tissue Paper Thickness Tester is a special instrument for measuring the thickness of paper and paperboard. It is widely used for measuring the thickness of toilet paper and other sheet materials and corrugated paperboard. It is an ideal testing equipment for papermaking, packaging, scientific research, product quality supervision and inspection industries and departments.


Features At A Glance



One-click test, easy to understand.
ARM processor improves the response speed of the instrument, and the calculation is accurate and fast.
The rising and falling speed of the probe can be adjusted.
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Automatic measurement, statistics, and printing of test results.
Communication with computer software (purchased separately)


Details Images


Application Range
Tissue Paper


Execute Standard
GB/T 451.3，QB/T 1055，GB/T 24328.2，ISO 534


Sales And Service Network




Product Paramenters


No.
Parameter item
Technical index
1
Power Supply
AC(100～240)V，(50/60)Hz 50W
2
Working Environment
Temperature(10~35)℃, Humidity≤ 85％
3
Display
5 inch color touch screen
4
Measuring range
(0～10)mm
5
Resolution
0.001mm
6
Indication error
±0.003mm or ±0.5％
7
Indication variability
≤0.003mm or ≤0.5％
8
Parallelism between measuring surfaces
≤0.0004mm
9
Contact area
(1000±5) mm²
10
Contact pressure
（2±0.1)kPa
11
Probe descending speed
（0.5～10）mm/s Adjustable
12
Print
Built-in thermal printer
13
Communication Interface
RS232(Default) (USB, WIFI optional)
14
Dimension
325×310×485 mm
15
Net Weight
24kg around
