CK6150 токарный станок с ЧПУ для токарной обработки металла и резьбы по экспортной
- Категории: Токарный станок с ЧПУ >>>
- Поставщик: LIAOCHENG,DONGYUAN,MATERIALS,INDUSTRY,CO.,LTD
Поделиться:
Описание и отзывы
Характеристики

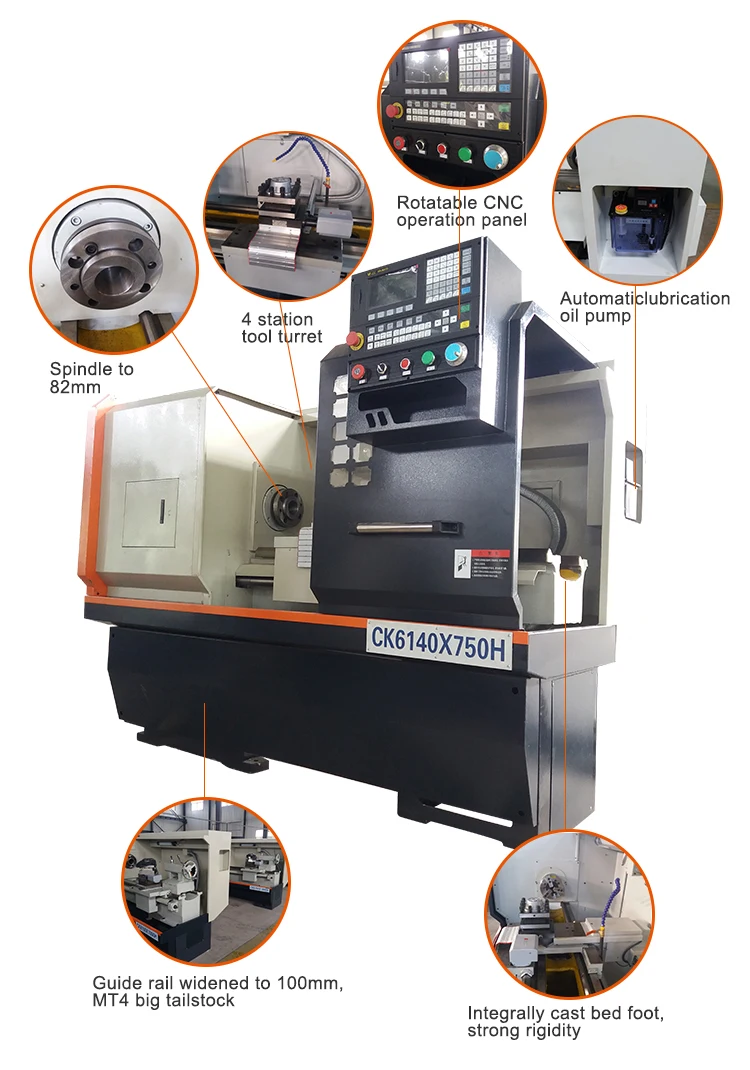

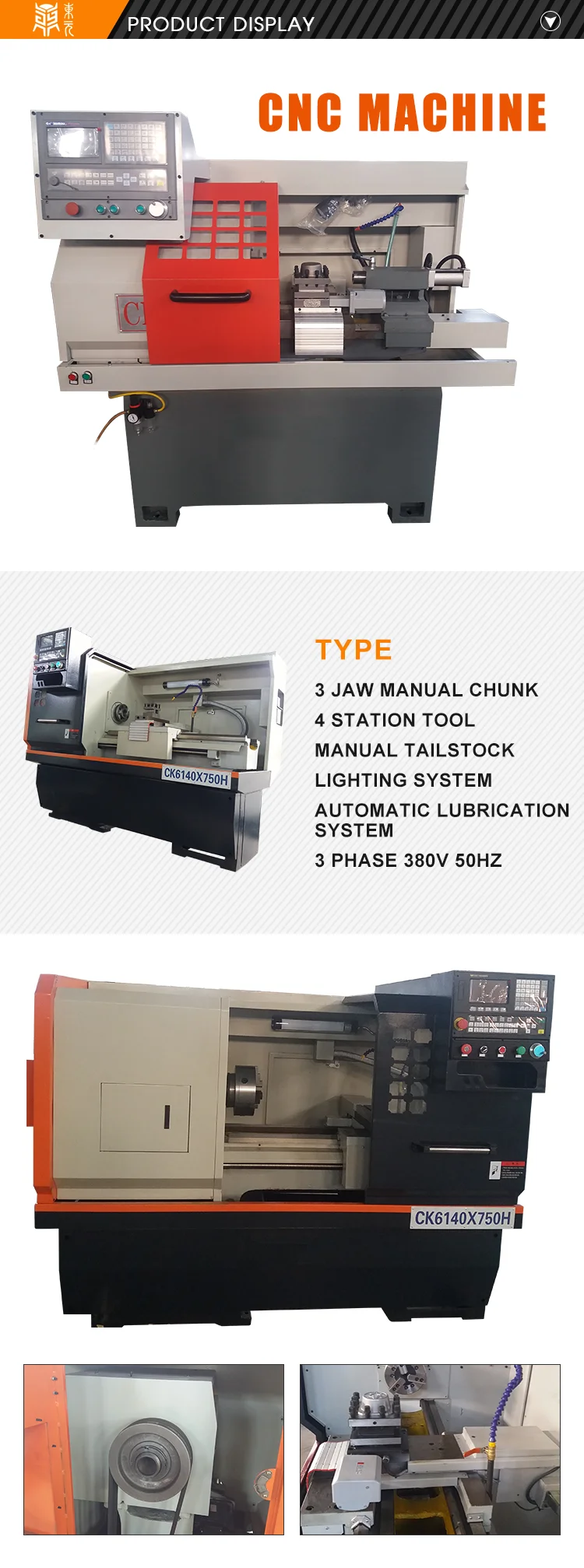

CK6150 Export price cnc lathe machine sale in dubai
| OBJECTS | CK6150 |
| MAXIMUM TURNING DIAMTETER OVER MACHINE | 510MM |
| THE LARGEST DIAMETER ROTARY SLIDE | 300MM |
| DISTANCE BETWEEN CENTERS | 500-1500MM |
| X AXIS TRAVEL | 260MM |
| Z AXIS TRAVEL | 500-1500MM |
| REPEATABILITY POSITION ACCURACY | 0.01MM |
| X AXIS RAPID TRAVERSE | 6000MM/MIN |
| Z AXIS RAPID TRAVERSE | 8000MM/MIN |
| SPINDLE BORE | 82MM |
| SPINDLE SPEED | 100-1800R/MN |
| NUMBER OF TOOLS | FOUR STATION TURRET |
| TAPER OF TAILSTOCK QUILL | MT5 |
| DIAMETER OF TAILSTOCK SLEEVE | 75MM |
| TRAVEL OF TAILSTOCK SLEEVE | 100MM |
| POWER | 7.5KW |
| SIZE(L*W*H) | 2200*1800*1600MM |
| WEIGHT | 2350KG |
| CONTROL SYSTEM | WX (DOMESTIC) |
| VOLTAGE | 3 PHASE 380V 50HZ |
| SERVICE | VIDEO TEACHING, SYSTEM SETTING |
| PAYMENT | 30%TT IN AVDANCE,THE BALANCE BEFORE LOADING |
Product Description
This product with beautiful appearance,high configuration,superior performance,low fuel consumption,wide operation range.Use the quick hitch can add the attachment tools like attachment tools like auger,hydraulic hammer,loading bucket,gripper and so on.
Company Information
Certifications
PRODUCTION PROCESS
Packaging & Shipping
FAQ
1.Q.What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
2.Q.What payment method do you accept?
A:We accept T/T and L/C.
3.Q.How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your machine?
A: Our standard is 3 phase, 380V, 50/60Hz. All can be custom made.
4.Q:How long is your delivery time?
A: Generally it is 5 days if the goods are in stock. or it is 20 days if the goods are not in stock, it is according to quantity.
5.Q.Is it convenient to see visit your factory and how go there?
A:Welcome everyone to come to visit our factory,we are in Liao4cheng city Shandong province.Make sure your trip date we will arrange it for you.
