DETAILS:
Size | customized |
Certification | ISO9001//TS16949 |
Material | Steel+CuPb10Sn10 |
Max load capacity P | 140N/mm² |
Max line speed V | Grease Lubrication 2.5m/s,Oil lubrication 5m/s |
PV value limit | Grease Lubrication 2.8N/mm²·m/s,Oil lubrication 10N/mm²·m/s |
Friction coef u | Grease Lubrication 0.05~0.15,Oil lubrication 0.04~0.12 |
Max Working temperature | Grease lubrication 150℃,Oil lubrication 250℃ |
Mating Axis | Hardness ≥53 HRC,Roughness Ra=0.32~0.63 |
Alloy layer hardness | 60~90HB |
Thermal conductivity | 47W/(m·k) |
Coefficient of linear expansion | 18×10-6/K |
Application | con-rod of automobile engines, engineering and agriculture machinery, heavy duty construction machinery |

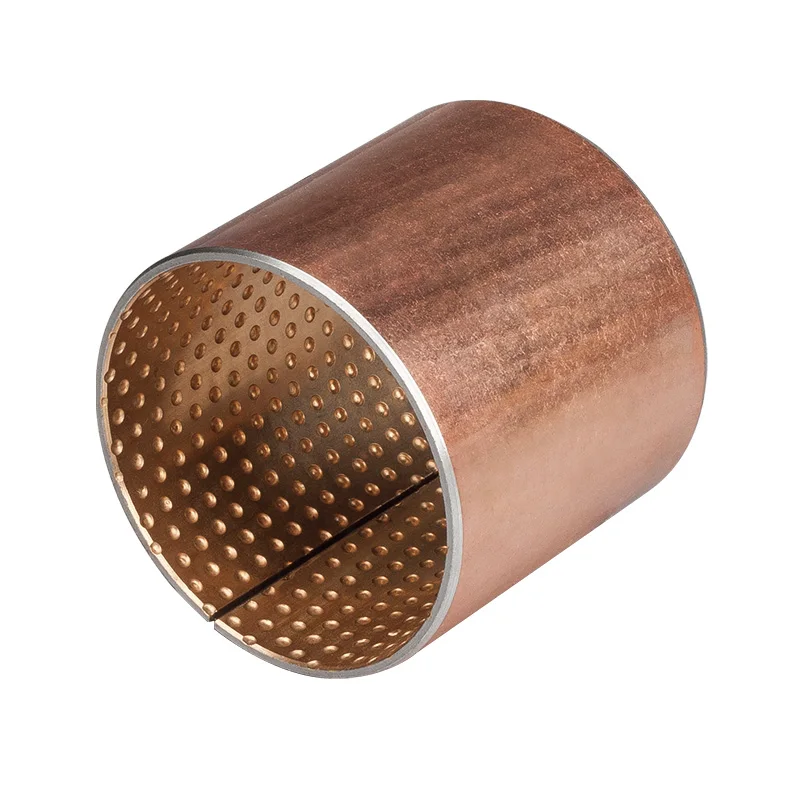

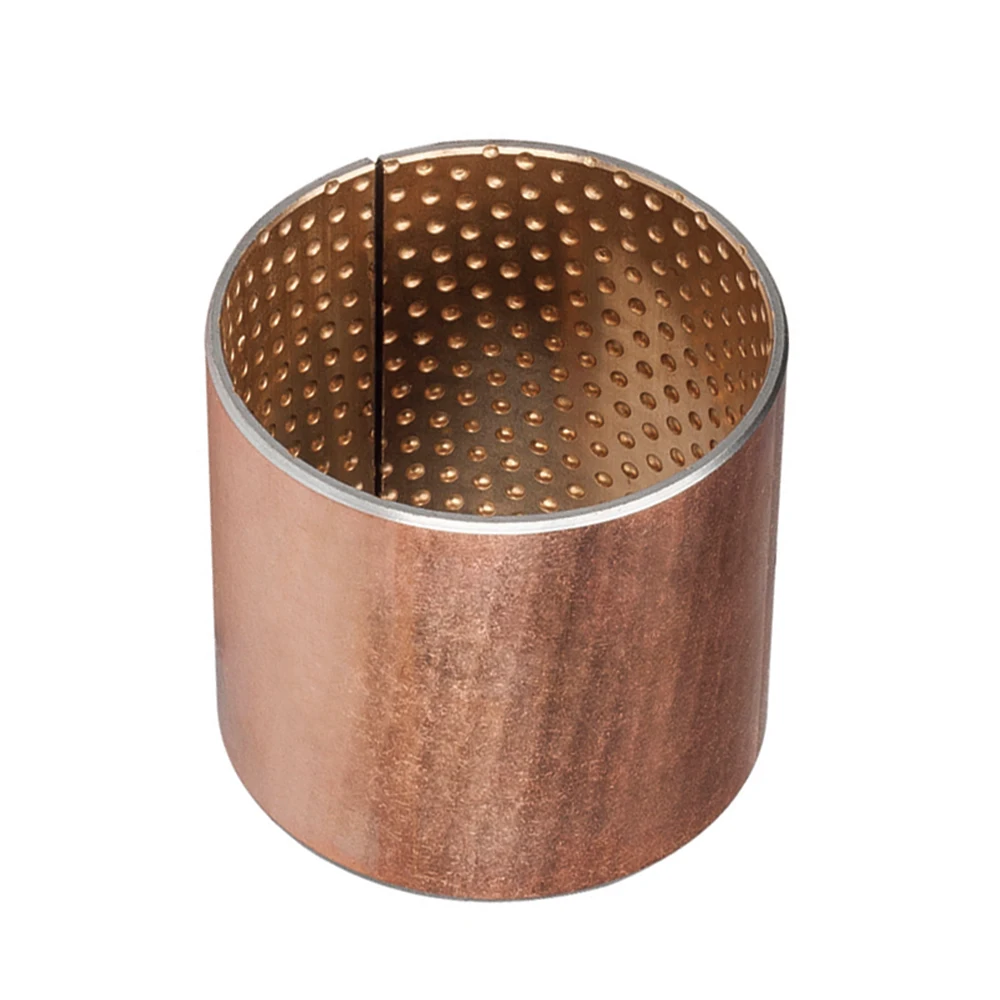

Explanation:TCB301 bimetal bushing is backed with high quality low carbon steel with tin-lead-bronze alloy(CuSn10Pb10) sintered on its surface. To effectively decrease abrasion, its alloy surface can be machined with ball shaped oil sockets for easier oil storage. When necessary, it could be plated copper or tin on the steel back. It can be applied to conditions of mediate load with mediate or high running belocity and conditions with enormous impact load. In mechanical applications, TCB301 is used to make wrapped bushes, thrust washer and bushes on connecting rod level of gas engine.
Q: Are you trading company or manufacturer?
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. TEHCO is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.
Q: Hong long is your delivery time?
A: Generally 10-25 days after order. It depends on the quantity.
Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.
Q: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
Q: Do you like to serve the customers only with small orders?
A: We are always glad to grow up together with all our customers whatever big or small.
We hope our customers become stronger and stronger to be with us.
