Сборный дом-контейнер-душевая-стальная конструкция/сэндвич-панель-сборный дом-простая установка 6055*2435*2896 mobile

US $300.00-$500.00

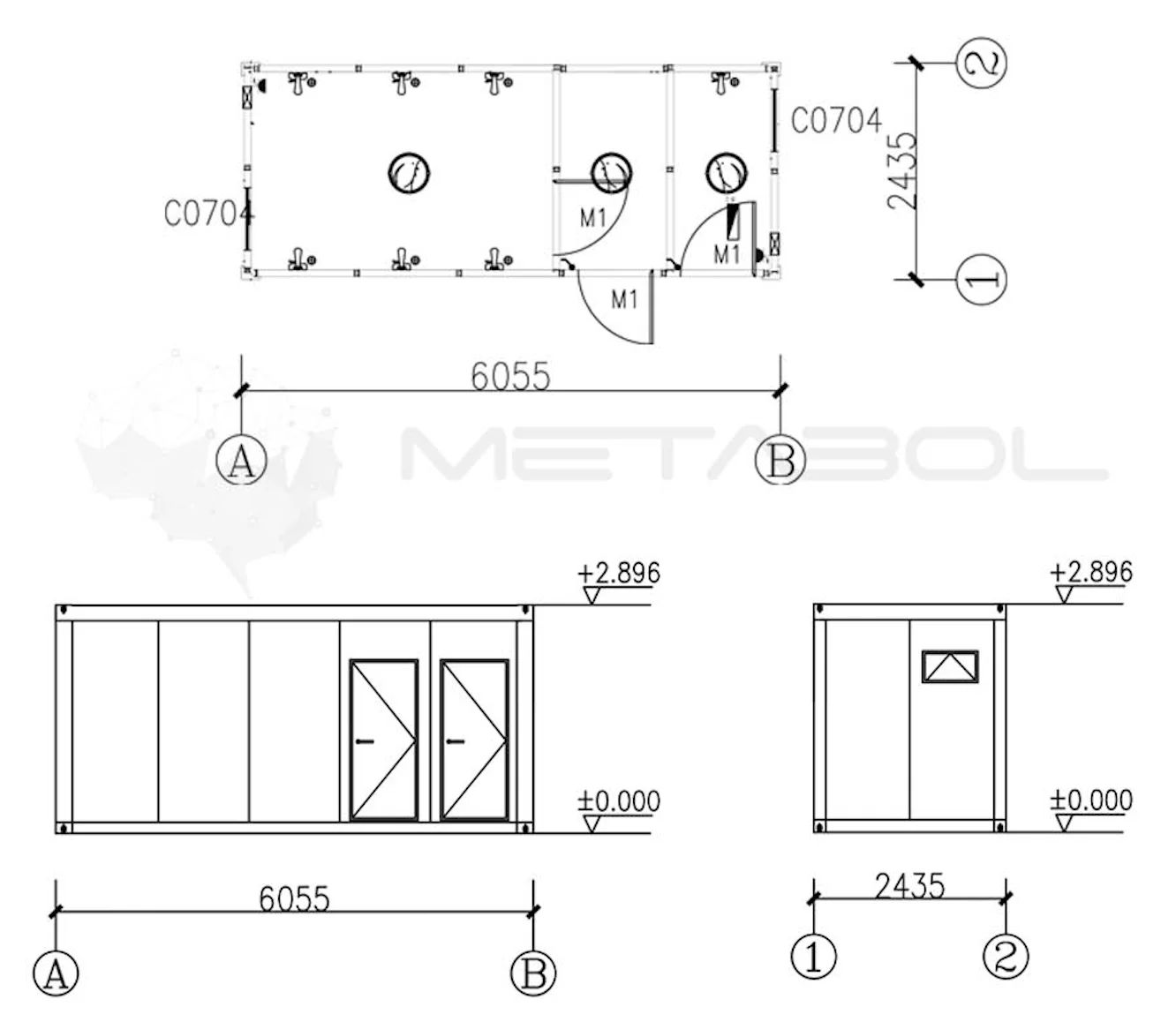

Dimensions	6055mm * 2435mm * 2896mm
Frame	Roof steel structure	6055mm2435mm175mm Galvanized roof beam: 3mm thickness, 160mmm height. Galvanized sub-beam: C90, 1.5mm thickness.
		Floor steel structure	6055mm2435mm160mm Galvanized floor beam: 3.5mm thickness, 140mm height. Galvanized sub-beam: steel square tube, 1.8mm thickness.
		Steel corner post	210mm150mm2555mm Corner post: 3mm thickness
		Painting	Modified acrylic polyester paint
Roof	Galvanized color steel plate	0.45mm, White gray
		Glass wool as insulation, with Moisture sealer	100mm thickness, 14kg/m3
		Profiled color steel ceiling	0.5mm thickness
Floor	Glass Magnesium Board	18mm
		PVC Floor	1.6mm
		Glass wool, single faced aluminium foil + Moisture stealer	100mm thickness, 14kg/m3
		Galvanized color steel plate + sealant	0.35mm
Electric system	Sunken distributer	7-9 ways
		CEE industrial socket	220V, 50Hz, 3 phase, 32A
Drainage channel	White gray	2130mm/5630mm
Decoration line	PVC decoration accessories	for ceiling edge, white, 5665/2045
				for corner post, white, 2445
				for floor edge, brown, 5845/2225
				for roof joint corner
Screw upper end fastener		Galvanized
Double M10 screw		2615mm
Hook angle		Galvanized
*M1235 hex socket bolt and washer**
Upper and lower packages of wall pannel		for 75 wallboard

Сборный дом-контейнер-душевая-стальная конструкция/сэндвич-панель-сборный дом-простая установка 605524352896 mobile
