Фрезерный станок с ЧПУ Xh7125 3 оси для резки
- Категории: CNC Milling Machines >>>
- Поставщик: WMT,CNC,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

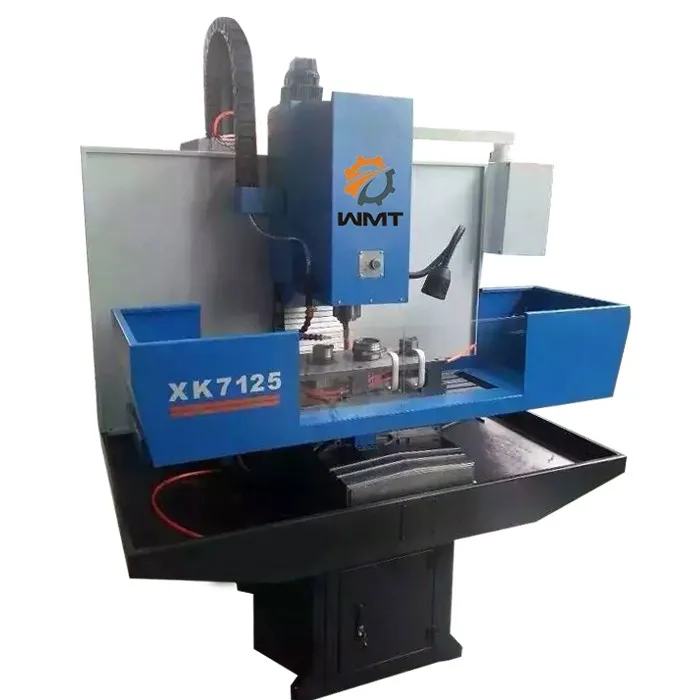

CNC milling machine XH7125
high quality box guideshigh spindle speed with Taiwan brand spindle
powerful axis servo
Specification | XH7125 |
Main motor power | 2.2kw |
Highest spindle speed | 6000rpm or 8000rpm |
X/Y/Z to the motor torque | 6/6/7.7N.M |
The spindle taper hole | BT30(optional:ISO40) |
Table size | 900x250mm |
X/Y/Z axis travel | 450x260x380mm |
Distance between spindle center and surface column | 330mm |
The distance of spindle end face to the workbench | 50-430mm |
Rapid movement(X/Y/Z) | 6/5/4m/min |
T-slot | 3/14/35 |
Table load | 250kgs |
Positioning accuracy | 0.02mm |
Repeat posotioning accuracy | 0.01mm |
Machine tool appearance size(L x W x H) | 1200x1500x2100mm |
Ball screws diameter axis X Y and Z | 25/25/32 mm |
Net.Weight | 1800kgs |
Products Show

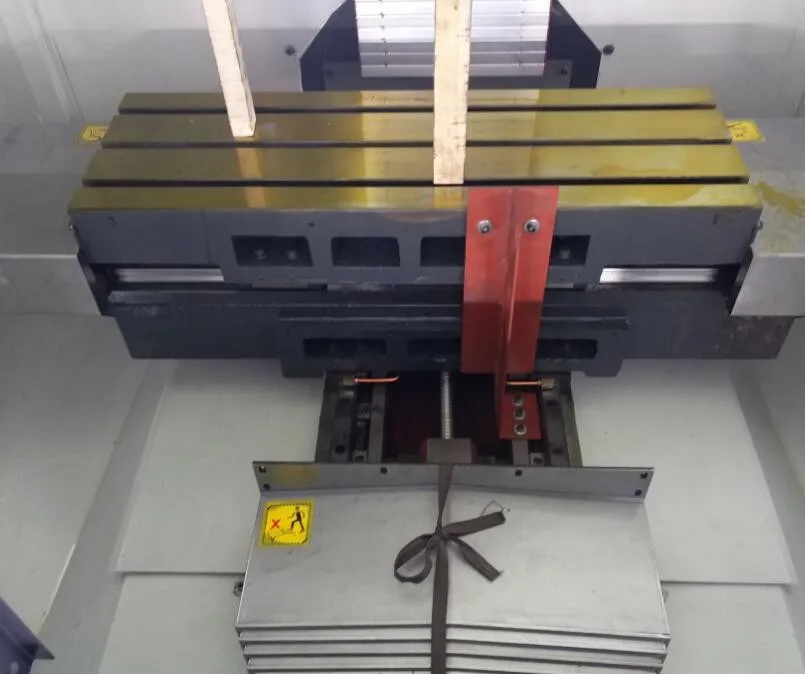

Large Work table size 900x250mm

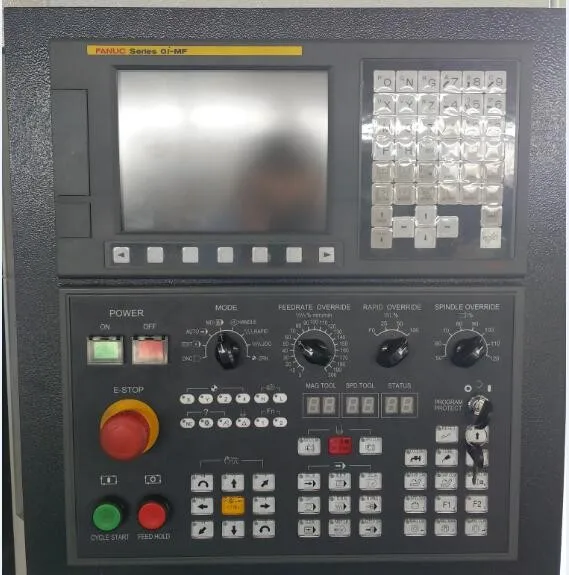

CNC controller :GSK,SIEMES,Fanuc
10pcs ATC and 4th axis
Export stnadard electrical

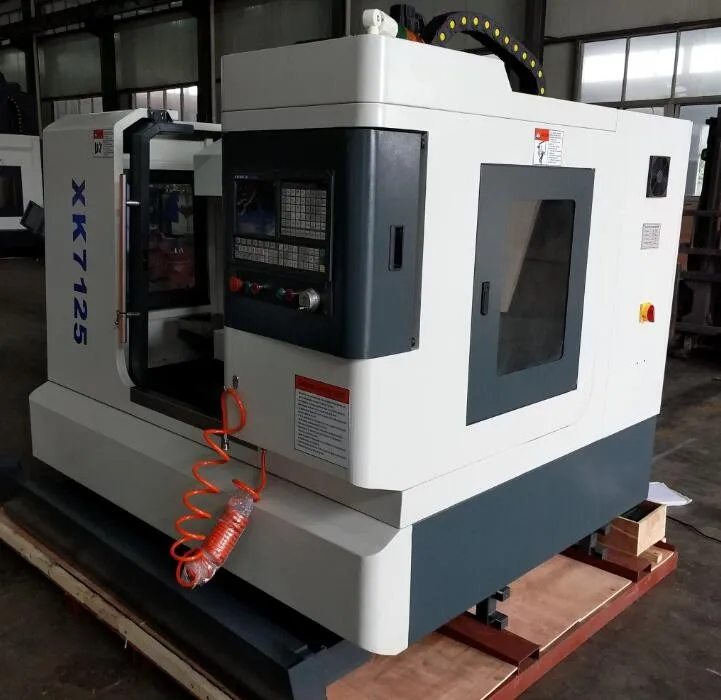

CNC milling machine XK7125 with full metal cover
Our Company
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
