Product Description

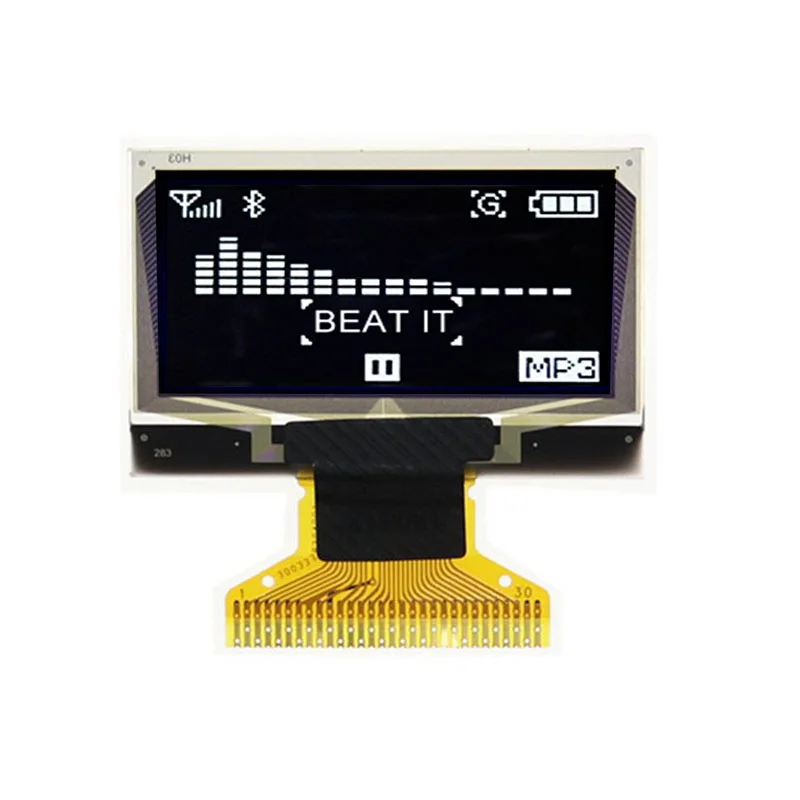

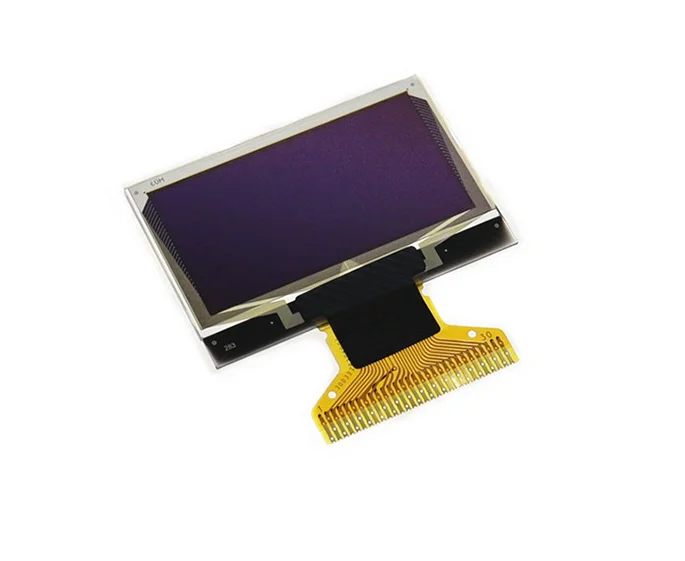

1.3 inch oled display
| Diagonal Screen Size | 1.3inch |
| Color | Mono(White) |
| Model number | GME12864-70 |
| Resolutions | 128x64 |
| Outline dimension | 34.5 x 23.0 x 1.4 mm |
| Active area | 29.42 x 14.7mm |
| Pixel pitch | 0.23 x 0.23mm |
| Pixel size | 0.21 x 0.21mm |
| Driver IC | SH1106 |
| Voltage | 3-5V |
| Interface | 8-bit Parallel, 3-/4-wire SPI, I2C |
| Operating temperature | -40~85℃ |
| Storge Temperature | -40~85℃ |
| Assemble | Soldering |
| Pins | 30P |

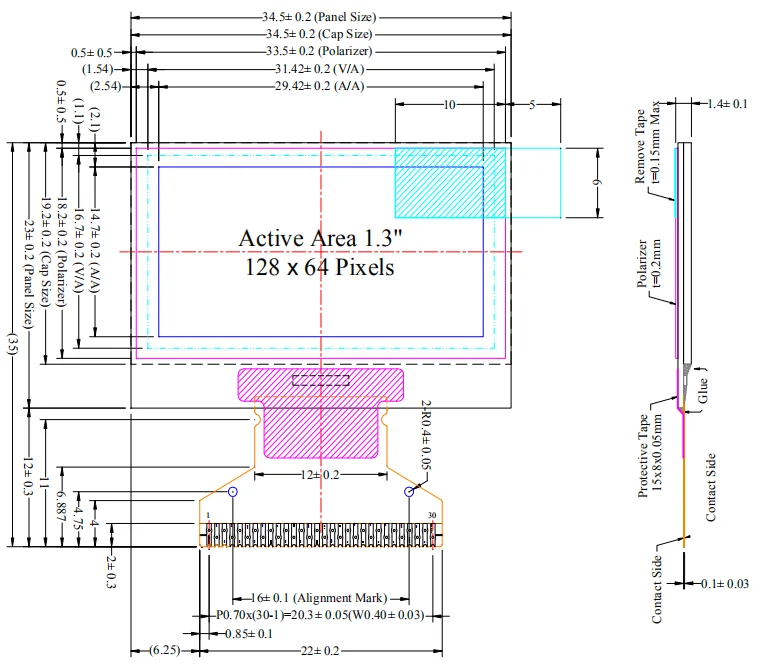

Drawing(1.3" white oled)

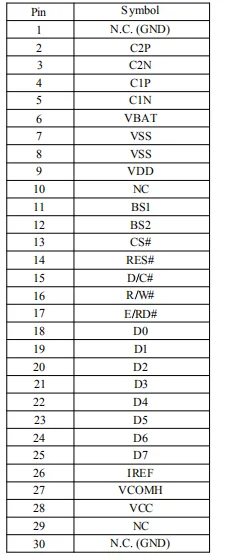

Pin Assignment(1.3" oled,Pins:30P)
Application
Company Information
Our Services
Packaging & Shipping
Customer feedback
FAQ
Contact us
