Product Description

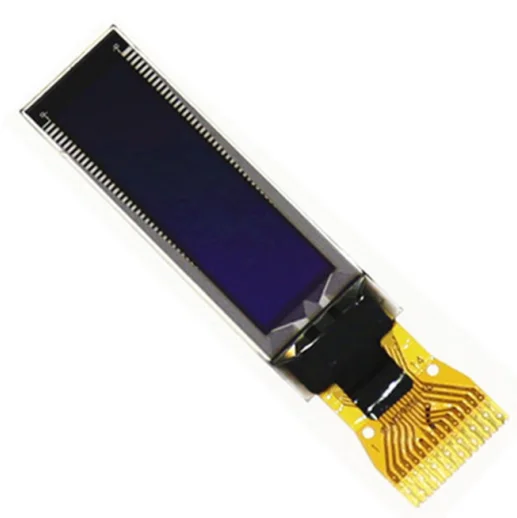

0.86" oled display
| Diagonal Screen Size | 0.86inch |
| Color | Mono(White) |
| Model number | GME9632-01 |
| Resolutions | 96x32 |
| Outline dimension | 29.1x9.2x1.2mm |
| Active area | 21.6x6.06mm |
| Pixel pitch | 0.22x0.19mm |
| Pixel size | 0.2x0.17mm |
| Driver IC | SSD1316 |
| Voltage | 3-5V |
| Interface | 12C |
| Operating temperature | -40~85℃ |
| Storge Temperature | -40~85℃ |
| Assemble | Soldering |
| Pins | 14P |

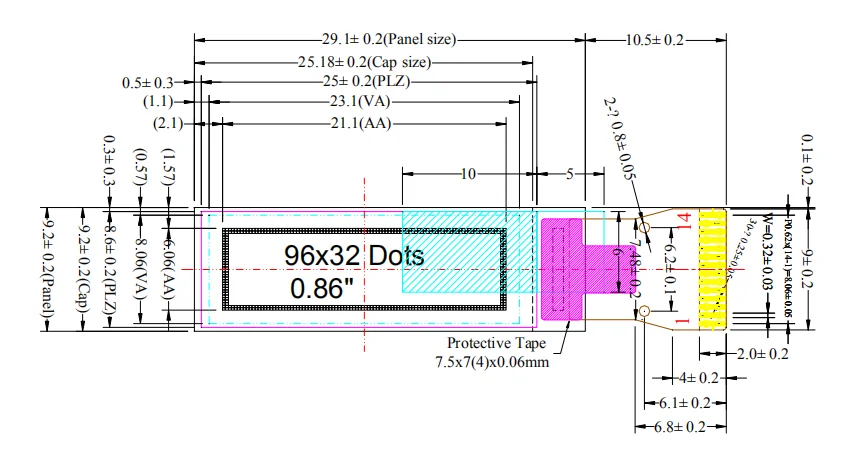

Drawing(0.86" oled)

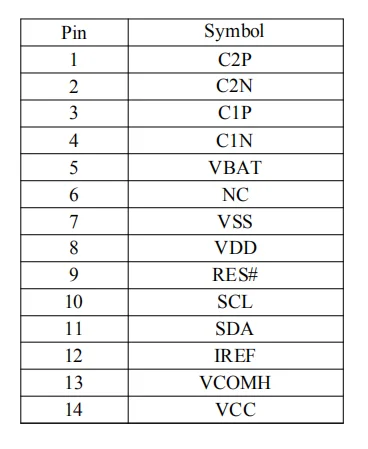

Pin Assignment(Pins:14P)
