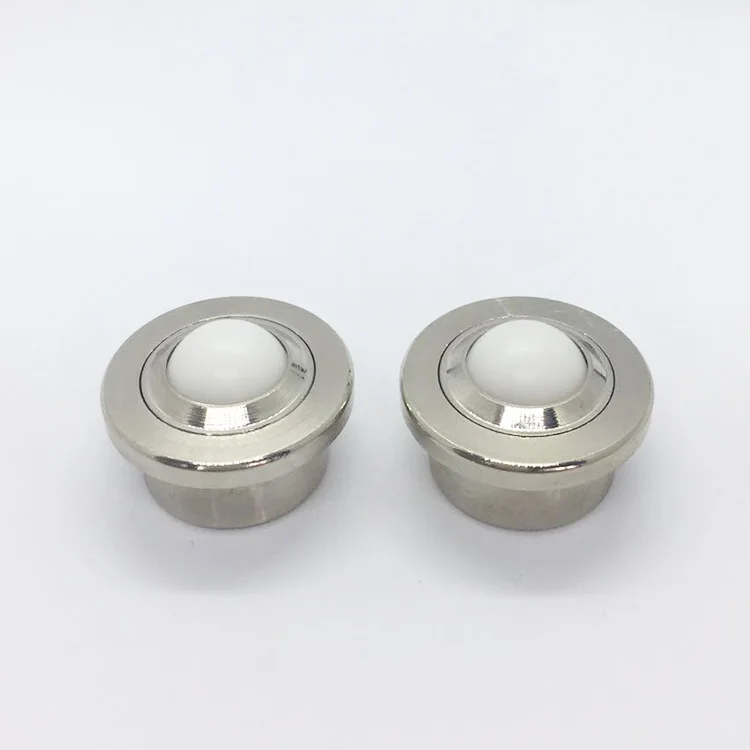

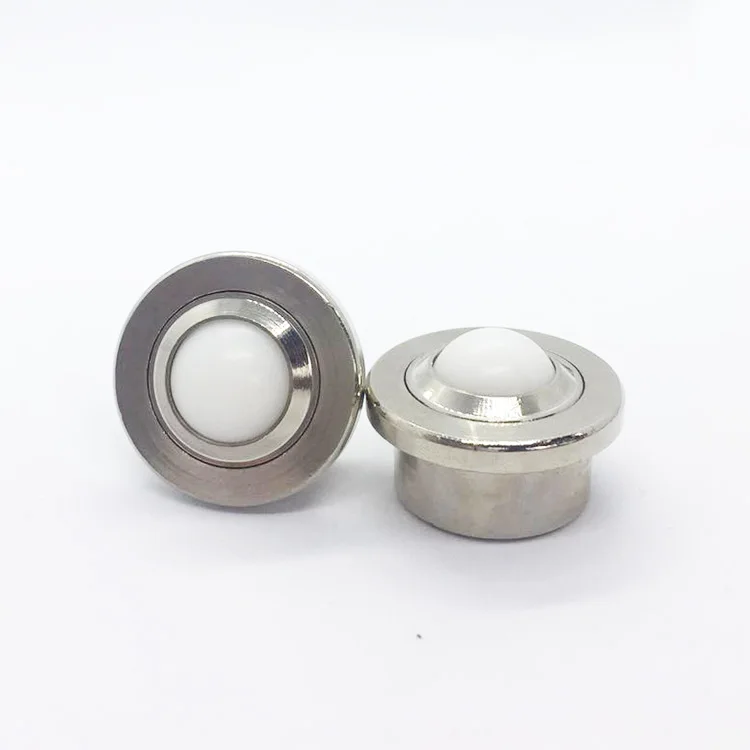

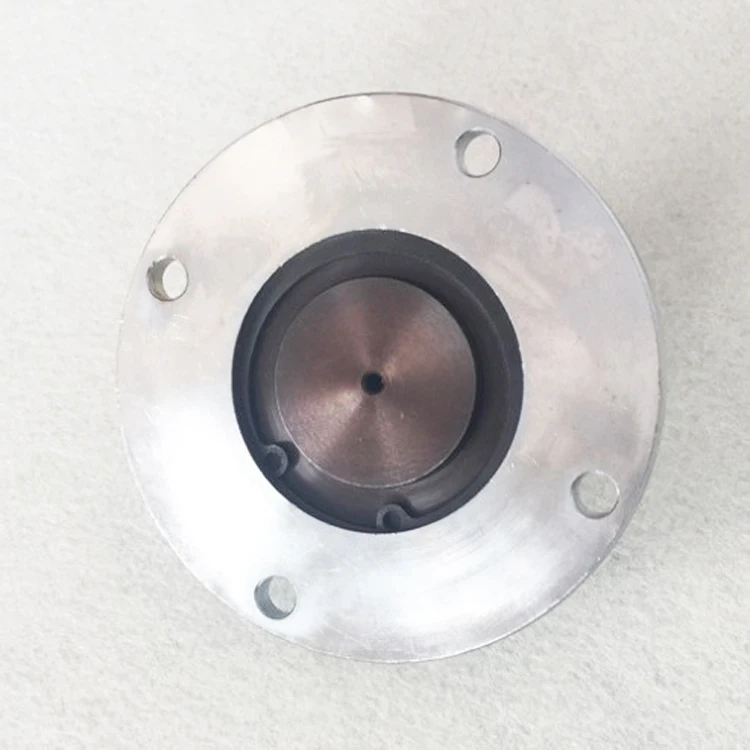

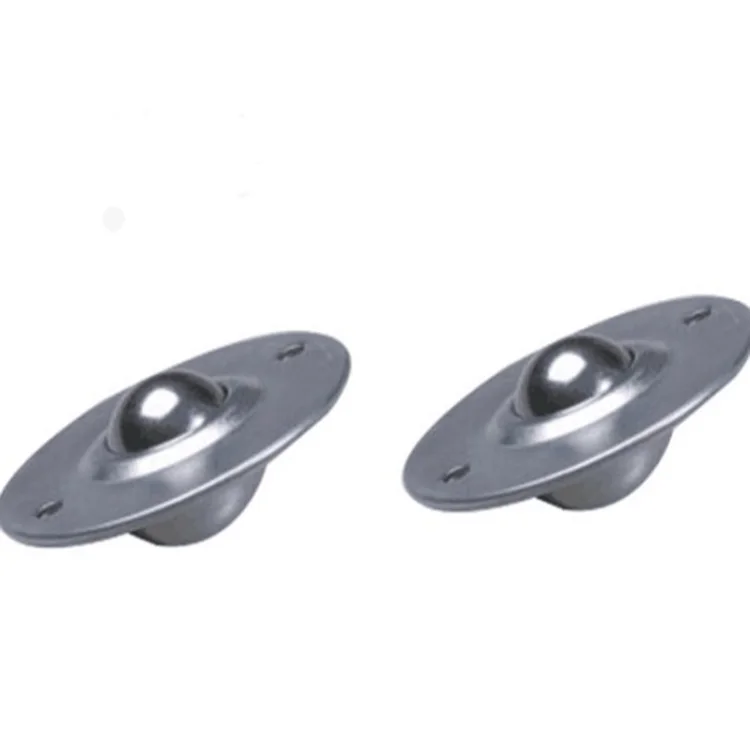

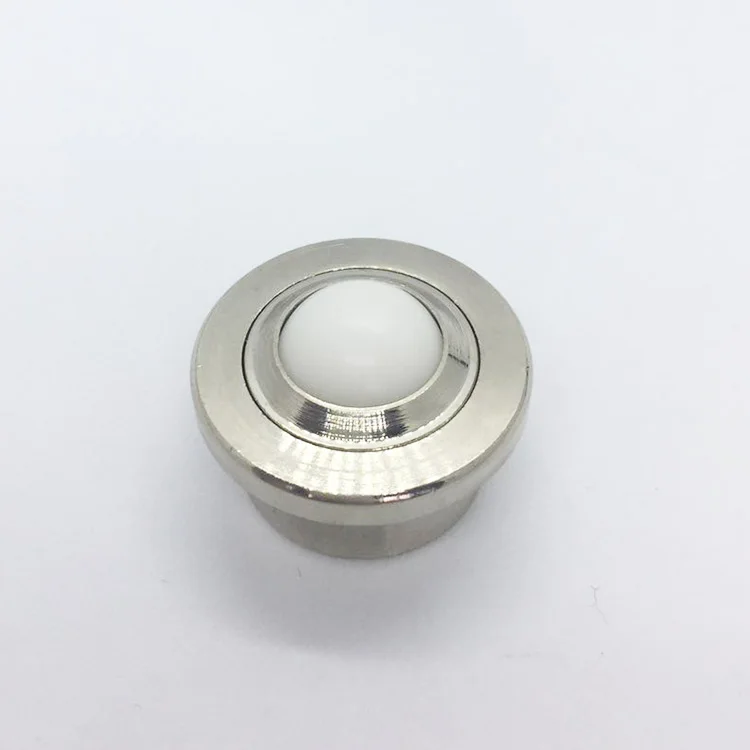

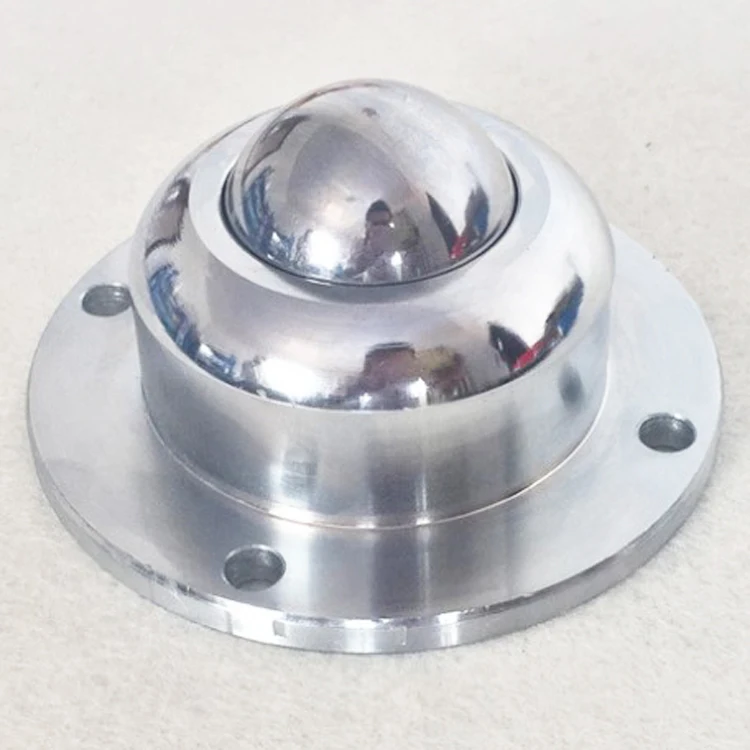

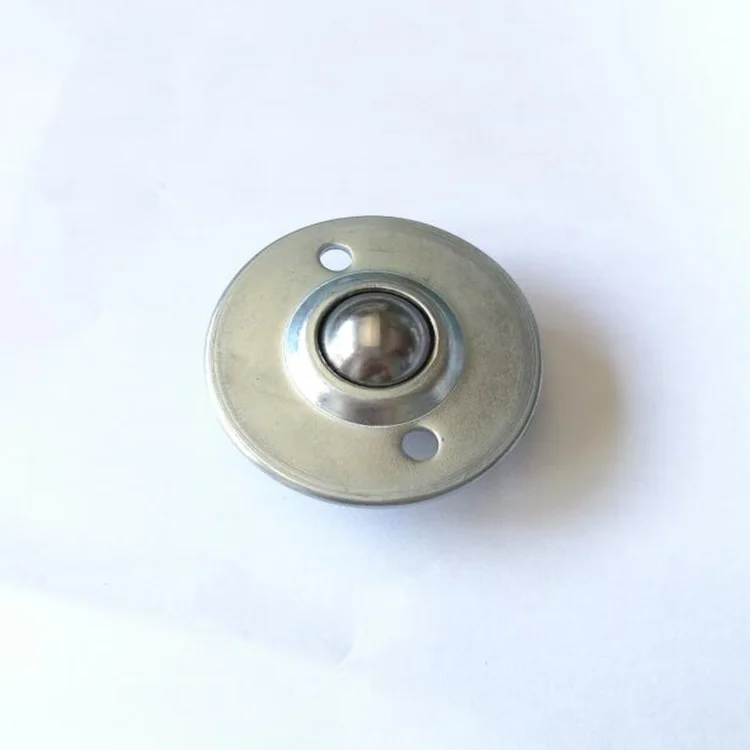

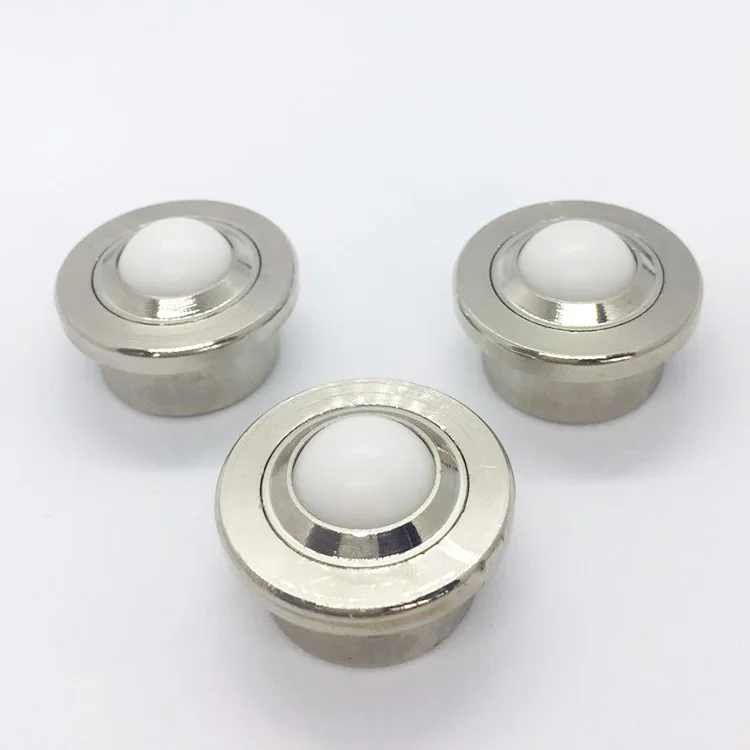

Ball transfer units are omni-directional load-bearing spherical balls mounted inside a restraining fixture. They are identical in principle to a ball computer mouse upside-down, or a trackball, except there is an array of them side-by-side. Typically the design involves a single large ball supported by smaller ball bearings.

They are commonly used in an inverted ball up position where objects are quickly moved across an array of units, known as a ball transfer table, a type of conveyor system. This permits manual transfer to and from machines and between different sections of another conveyor system. They are used in airports for luggage delivery, or in industry as part of manufacturing systems. Prior to the invention of the ball transfer unit, first patented by Autoset Production Ltd in 1958, these applications were solved by the use of inverted casters. However, casters recognize a trail, meaning that the wheels had to align before directional change could be achieved.

Ball transfer units can also be used non-inverted ball down position as a type of caster, however this use is restricted by load-bearing limitations and the type of floor. Manufacturers have addressed this problem with ball transfer units incorporating re-circulating ball principles, however the inverted position is still the most common application and the least problematic.

Ball Transfer Material: stainless steel, plastic, nylon, carbon steel, etc.

Housing: galvanized steel, stainless steel, nylon, carbon steel hardened, galvanized steel

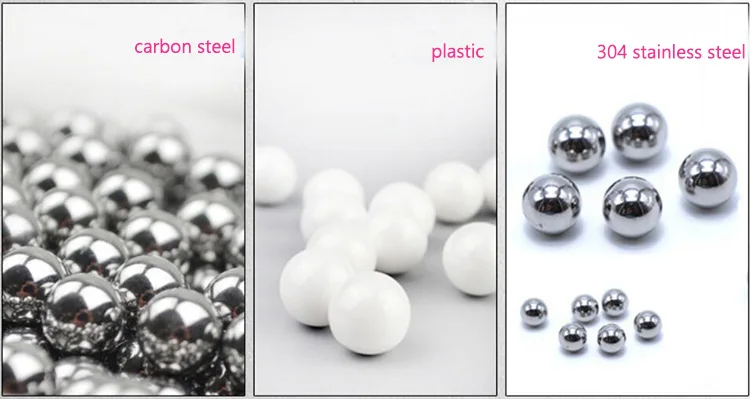

Ball / Ball: Carbon steel, galvanized steel, steel, plastic, nylon, steel ball bearings

Ball Transfer Static load :1-480kg

Ball Transfer Dynamic load :1-300kg

 Ball Transfer Weight :1-500g

 Ball Transfer  Ball Transfer Features:

Convenient one-piece conveyed the steering, rotate, horizontal push, as a component widely used in transmission systems.

Rolling flexible, flexible slip;
Greatly reduce the labor intensity;
Ball can set the distribution density;
You can choose a different universal ball bearing capacity.

Ball Transfer Use process: Need to add oil
