OLED-дисплей 3 37 дюйма с разрешением 256x64 SPI I2C
- Категории: >>>
- Поставщик: Shenzhen,Goldenmorning,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

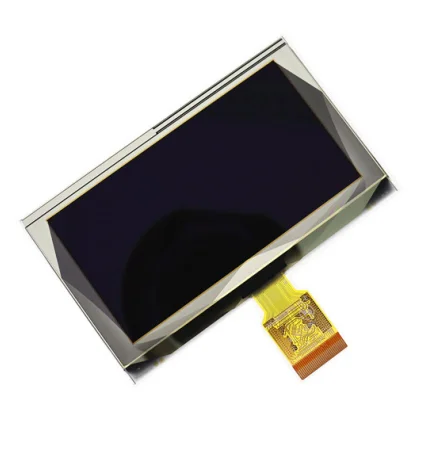

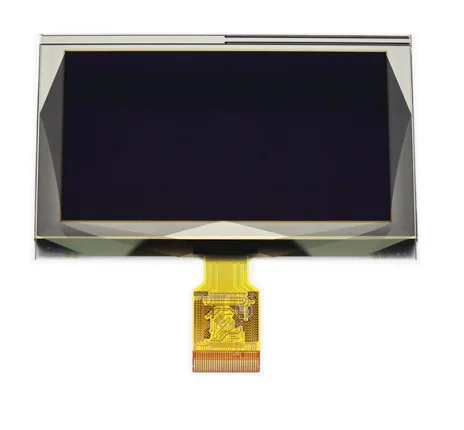

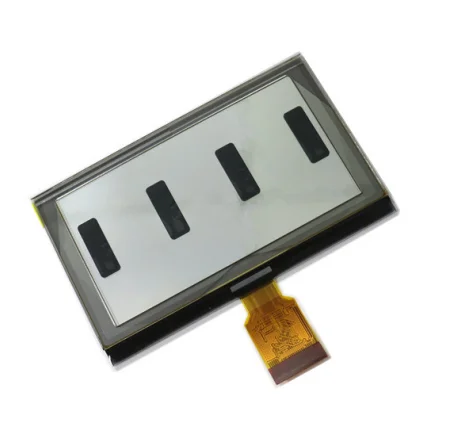

3.37" yellow oled display
| Diagonal Screen Size | 3.37inch |
| Color | Mono(Yellow) |
| Model number | GME240128-01 |
| Resolutions | 240 × 128 |
| Outline dimension | 89.52 x 54.41×2.05mm |
| Active area | 75.58 x 40.30mm |
| Pixel pitch | 0.315 x 0.315 mm |
| Pixel size | 0.290 x 0.290 mm |
| Driver IC | SSD1322 |
| Voltage | 3-5V |
| Interface | 8 bit Parallel, 4-wire SPI |
| Operating temperature | -20~70℃ |
| Storge Temperature | -30~80℃ |
| Assemble | Soldering |
| Pins | 15P |

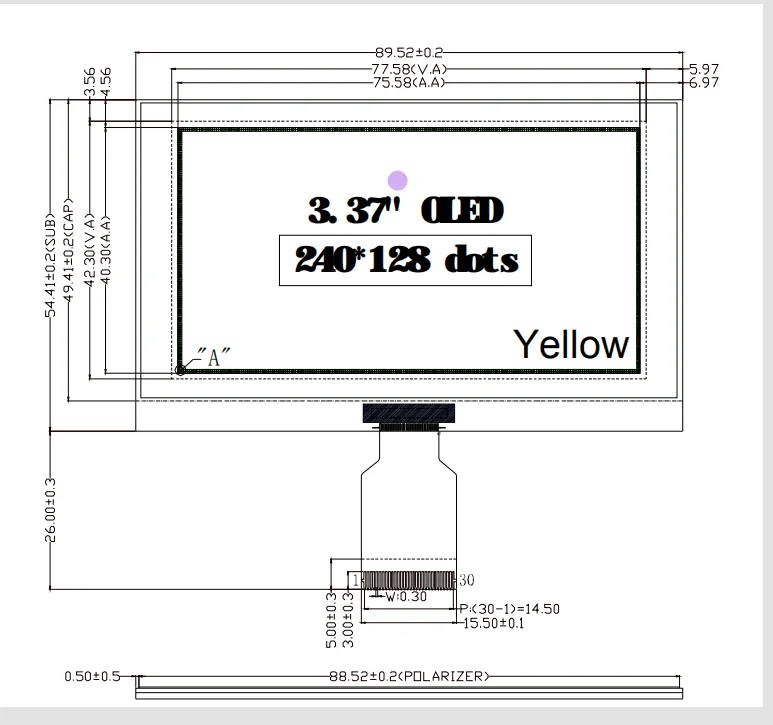

Drawing(3.37" oled)

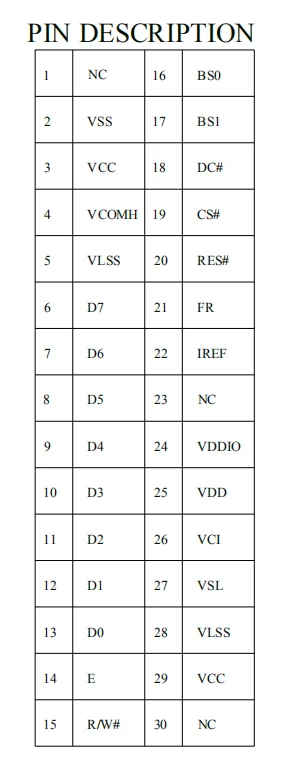

Pin Assignment(3.37" oled,Pins:15P)
Application
