Чистая мощность солнечный инвертор IP67 1300

Описание и отзывы

Характеристики

Input Data(DC)	Sun1300G2-US	Sun1300G2-EU	Sun1300G2-SAA
Recommended input	1300G/210-370w(4 piece)
Max input DC voltage	60v
Peak power tracking voltage	25v-55v
Operating range	20v-55v
Min/Max start voltage	20v/60v
Max DC short circuit current	13A
Max input current	10.4*2/10.4*4
OUTPUT DATA(AC)
Peak output power	1300w
Max output power	1300w
Nominal output power	5.416A
Nominal voltage /range	208V/183V-229V 240V/211V-264V	a.c.184-265v @230v ac	a.c.200-270v @230v ac
Nominal voltage/range	60/59.3-60.5hz	50/47.5-51.5hz	50/45-55hz
Extended frequency/range	60/59.3-60.5hz	50/47.5-51.5hz	50/45-55hz
Power factor	>0.95
Max units per branch	8/4
EFFICIENCY
CEC weighted efficiency	95%
Peak inverter efficiency	96.50%
Static MPPT efficiency	99%
Night time power consumption	50mW
MECHANICAL DATA
Ambient temperature range	-40℃-+65℃

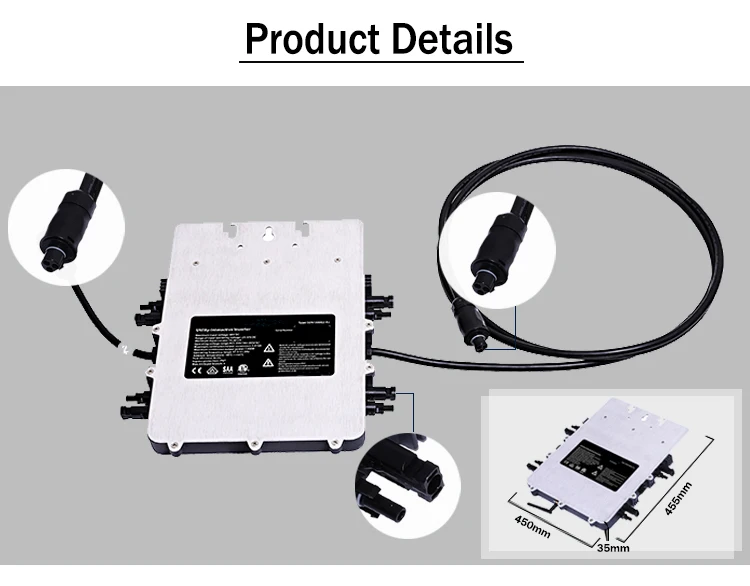

Dimensions (W*H*D)	187.6mm*163.6mm*29mm(without mourting bracket and cable) 450mm*455mm*35mm(without mounting bracket and cable)
Weight	2.2kg/6.5kg
Cooling	Natural convection-No fans
Enclosure environment rating	Outdoor-NEMA6/IP67
FEATURES
Compatibility	Compatible with 60-82 cell PV madules
Communication	Power line/Zigbee
Compliance	UL1741,VDE0126,VDE4105,IEC62109,CE,SAA
Warranty	10 years



Q1: Can I have sample order for mirco inverter?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2: What about the lead time?

A:Sample needs 10 days, mass production needs 2-3weeks for order quantity more than one container



Q3: what’s the warranty ?

A:3 years



Q4: How can i pay the mirco inverter ?

We could accept payment by T/T, Paypal, West union, Alibaba Trade Assurance order etc.



Q5: How can I contact  you?

Please contact us by Trade manager, Email, Whatsapp or wechat, surely call me when you need
