switching dc power supply voltage regulators 9-36v to 13.8v buck boost dc converter 15A 20A 25A 28A 30A
Product Name | DC to DC Boost Buck Converter |
Model No. | XW-0936-13.8-207W~414W |
Module Properties | Non-isolated Module |
Rectification | Synchronous Rectification |
Input Voltage | DC 12V 24V |
Input Voltage Range | DC 9-36V |
Output Voltage | DC 13.8V |
Output Current | 15A/20A/25A/28A/30A |
Output Power | 207W/276W/345W/386W/414W |
Conversion Efficiency | >93% |
Cable Length | 13-14cm |
Ripple (Full load test) | <170mV |
No-load current | 40mA |
Working Temperature | -40~80℃ ( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
Waterproof Rating | IP67 |
Protection | Over-current /Over-voltage/Over-heat/Short-circuit |
Waterproof, Anti-shock , Anti-dust protection | |
Shell Material | Aluminum |

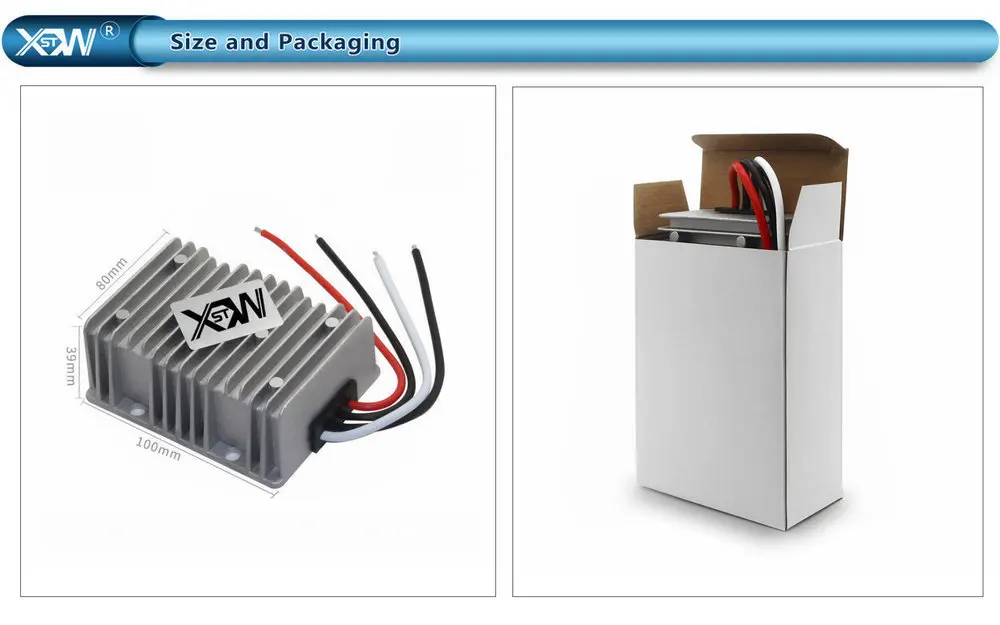

Size /Packing | 100*80*39mm, 550g, White Box |
Warranty | 12 months |
Attention:

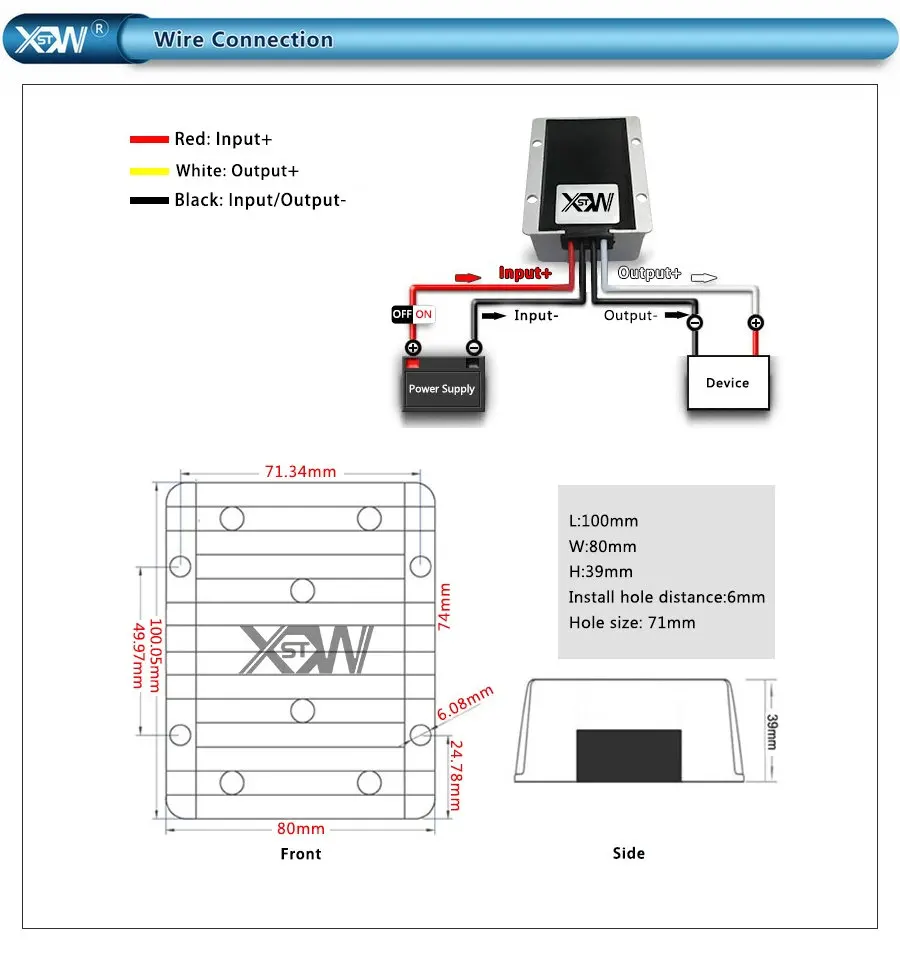

Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
Huizhou Xinwei Technology, former as Shenzhen Xinwei Technology, is a professional leading manufacturer engaged in power conversion solutions more than 8 years. Our mian products include power supply DC-DC boost converters, DC-DC buck converters, Auto Buck and Boost DC-DC Converter ,Isolated DC-DC Converter and others . We have 600 square factory with 3 product line by advanced equipments and developing teams. XWST is international trademark. We look forward to cooperate with you in near future.
