36 В 350 Вт Новый брендовый велосипедный генератор для электрического
- Категории: Мотор для электровелосипеда >>>
- Поставщик: Changzhou,Epower,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
EPOWER EPF02 SPECIFICATION
| Basic Specification | |
| Model | EPF02 |
| Nomical Voltage | 36V |
| Design | brushless |
| Rated Power | 350W |
| Position | Front Motor |
| construction | Gear Motor |
| RPM | RPM 200-370 |
| Max Torque | 35N.m |
| efficiency | 80% |
| color | Black /Silver |
| Mounting Parameters | |
| Brake | V/Disc Brake |
| Weight | 2.5kgs |
| Installation Width | 100mm |
| Max.Housing Diameter | 133mm |
| Cable in | Shaft Center, Right |
| Spoke Specification | 12G/13G |
| Further Specifications | |
| Cadence(Pulses/Cycle) | 1/1 |
| Reduction Ratio | 1/4.35 |
| Magnet Poles | 20 |
| Noise | <50dB |
| Hall Sensor | Optional |
| Connector | Waterproof |
| Tests & Certifications | |
| IP-Code | IP 65 |
| Certifications | ROSH/CE |
| Packaging & Delivery | |
| Selling Units: | Single item/6Pcs/CTN |
| Single package size: | 20x20x27cm/53X34X20 cm |
| Single gross weight: | 2.5kgs |

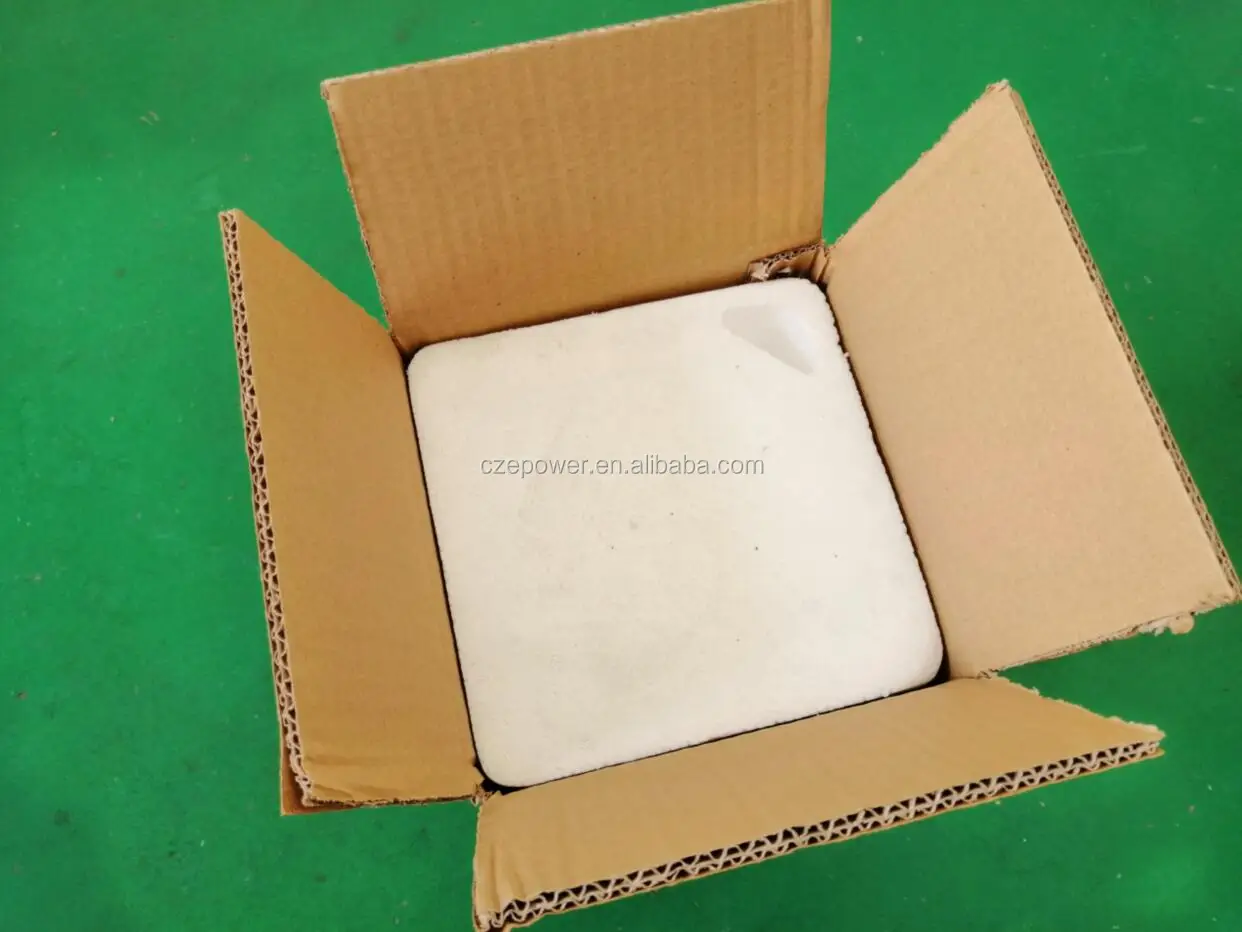

| Package Type: | standard packing box with foam |

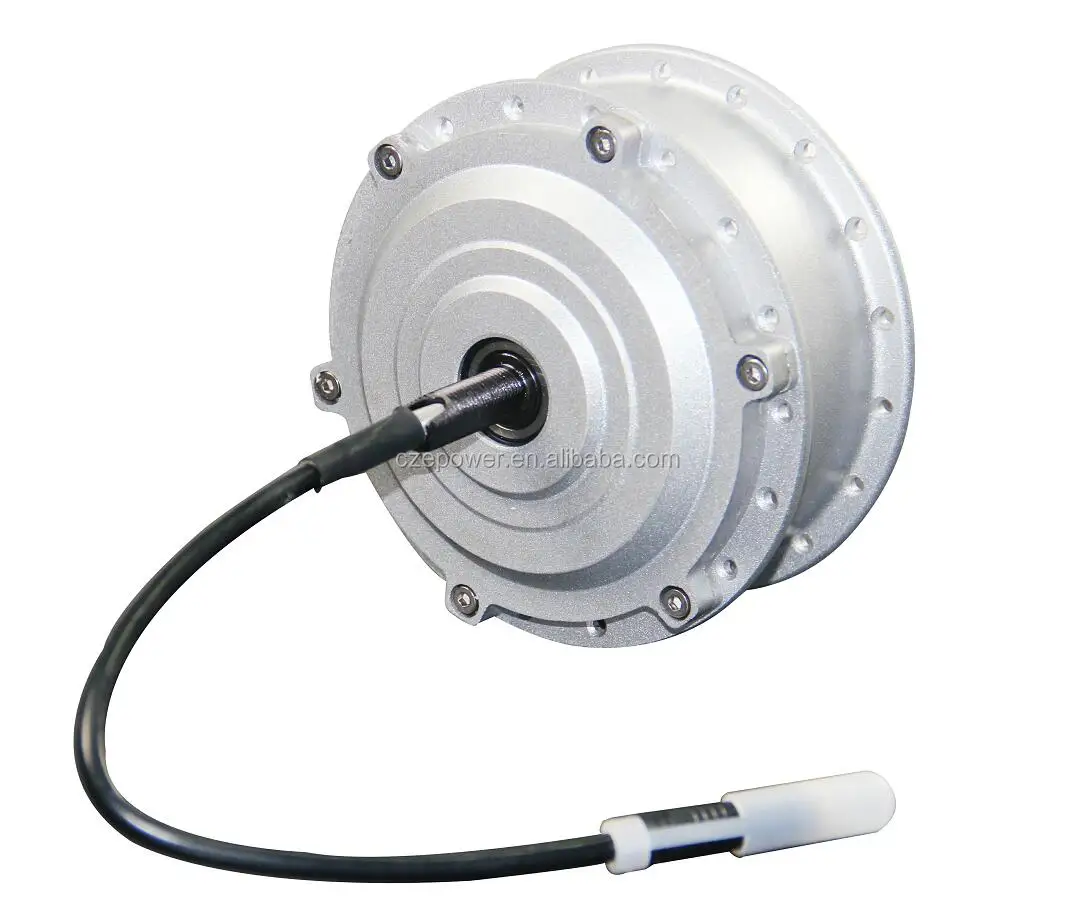

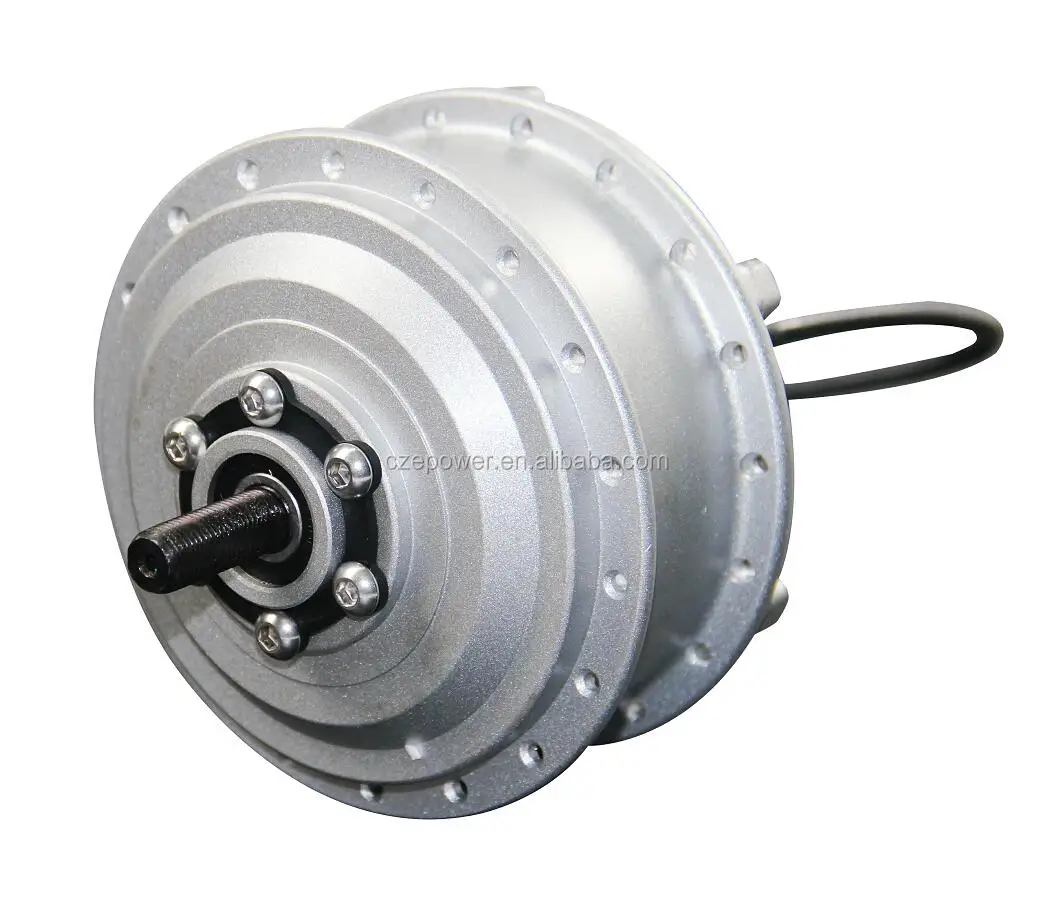

PRODUCT PHOTOS

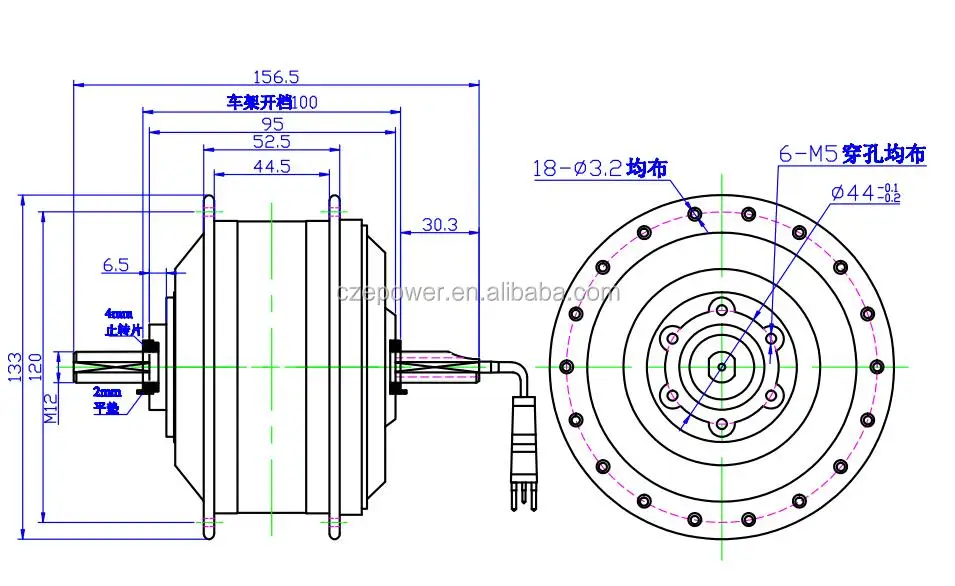

DRAWING

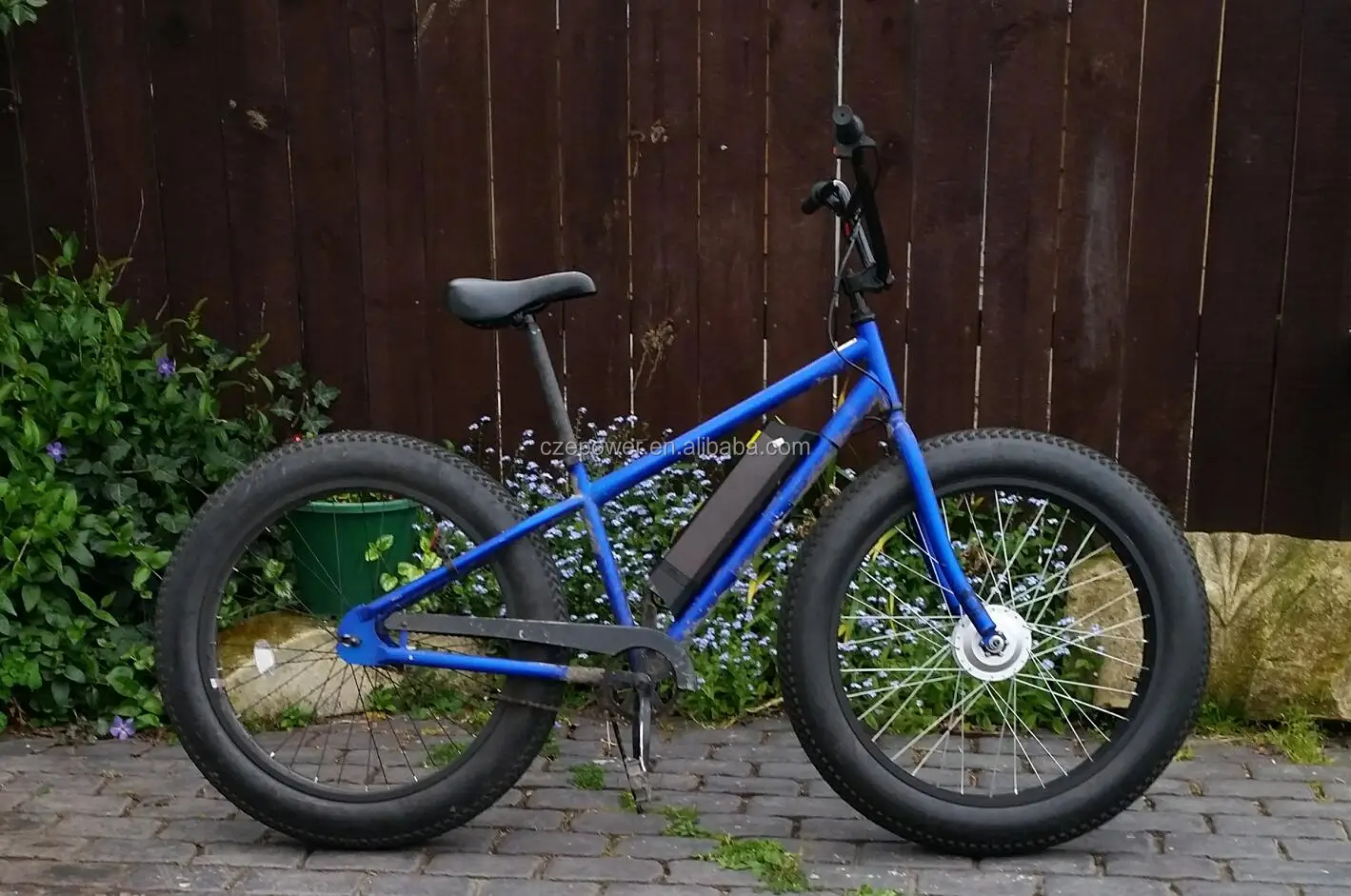

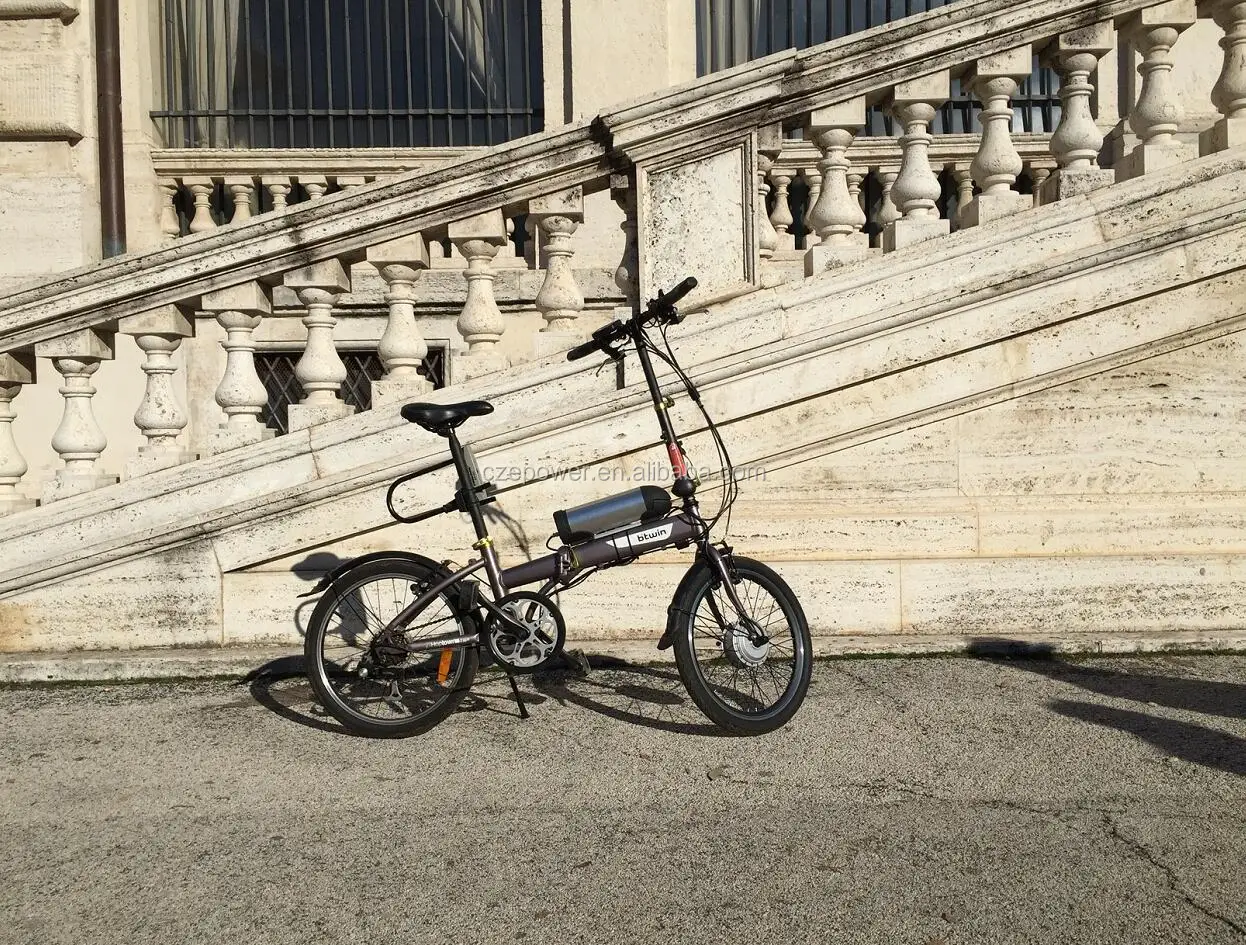

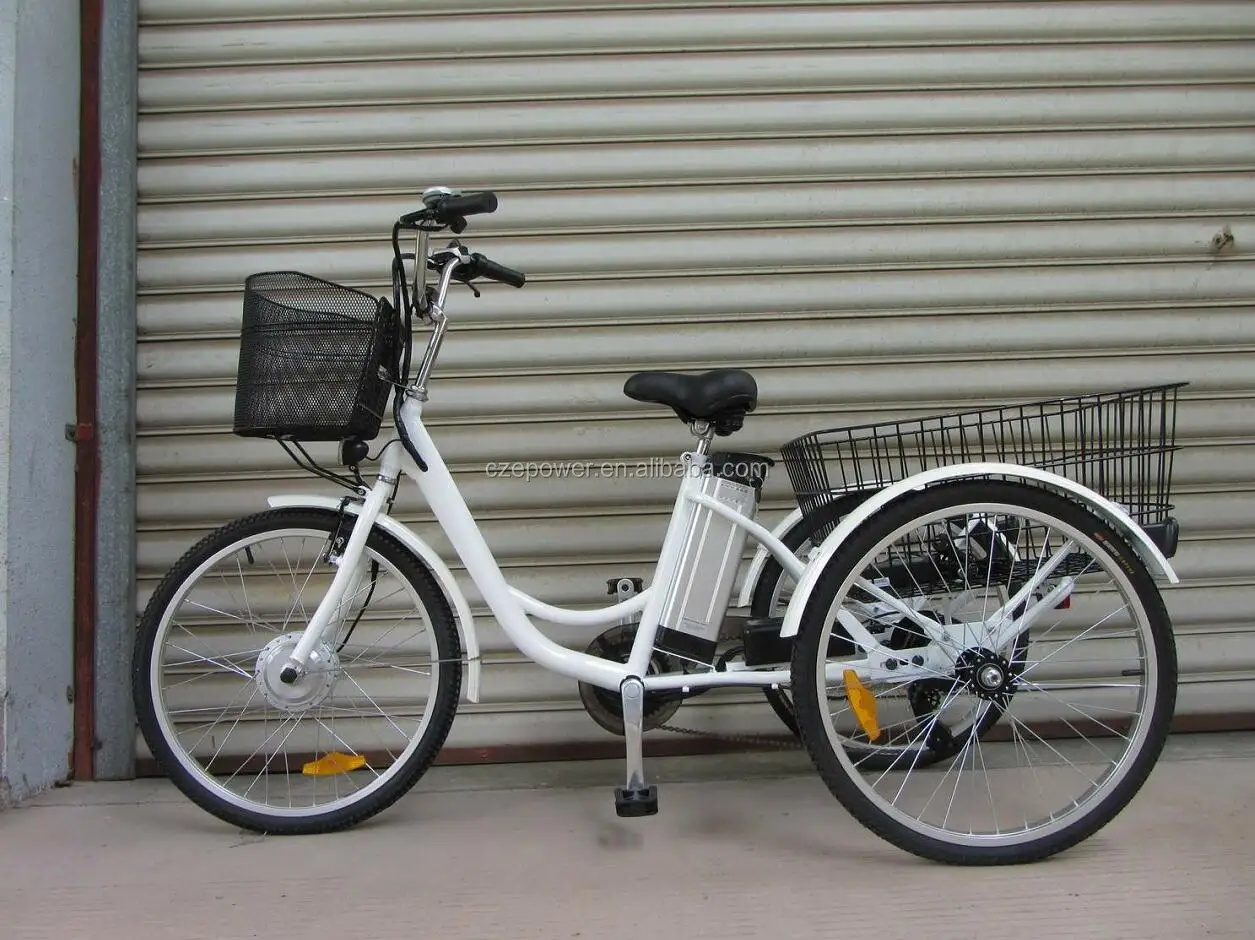

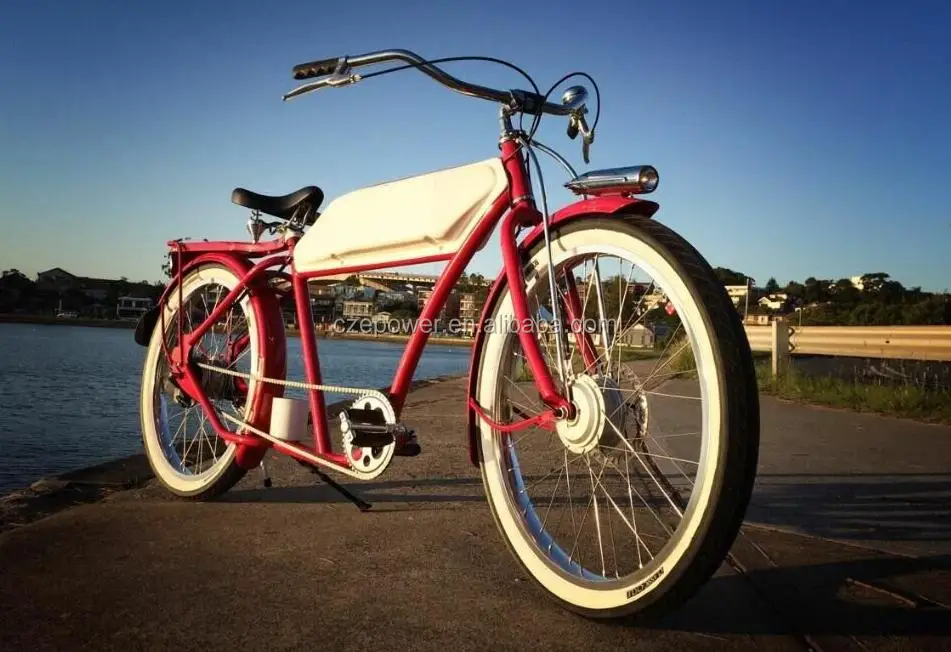

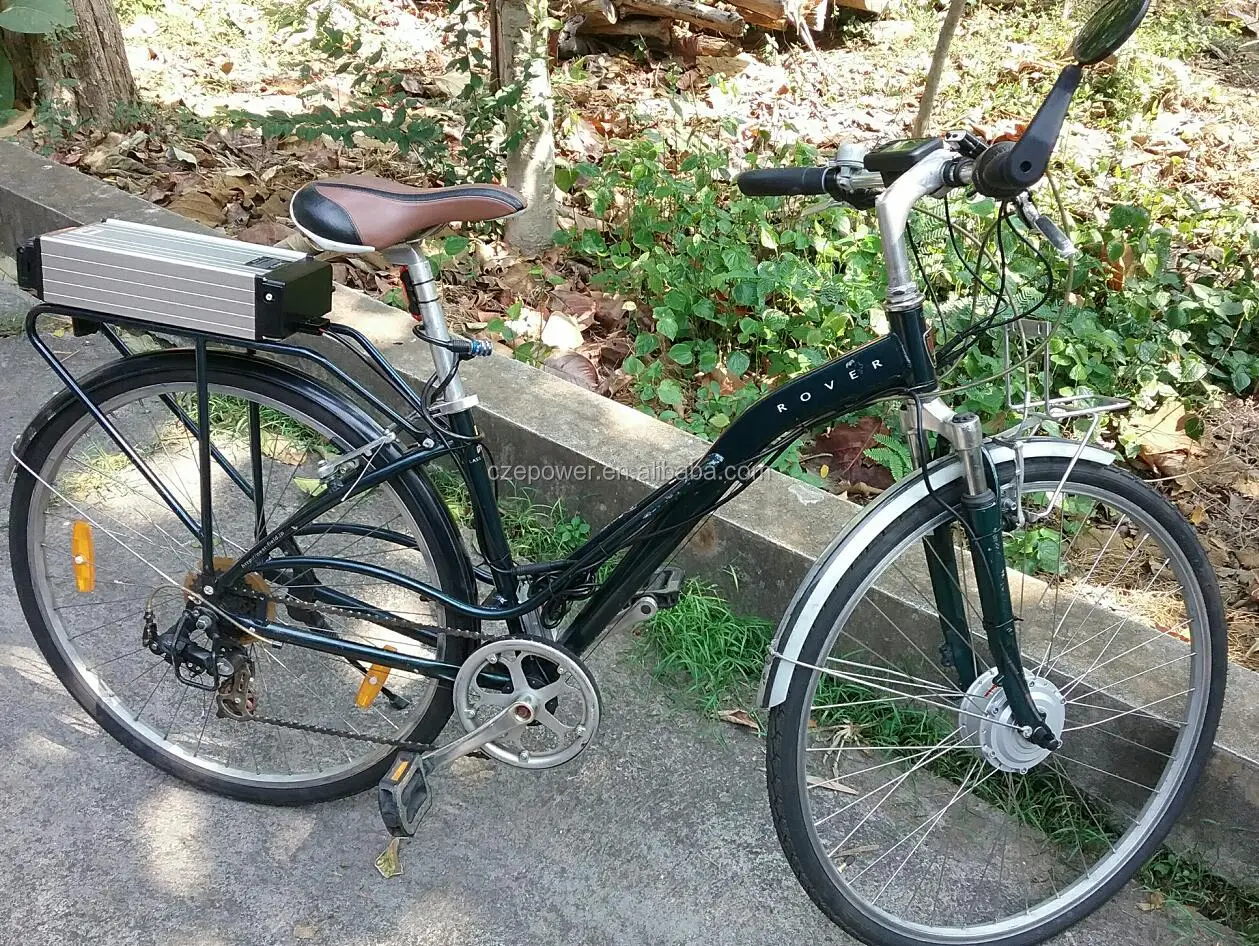

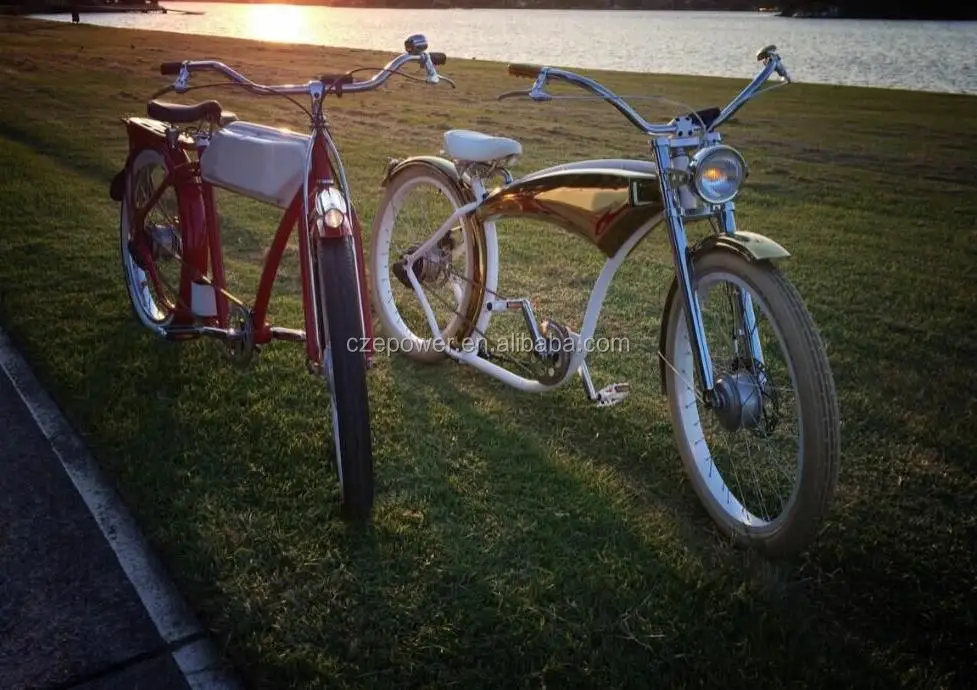

EPR02 SILVER MOTOR APPLICATION

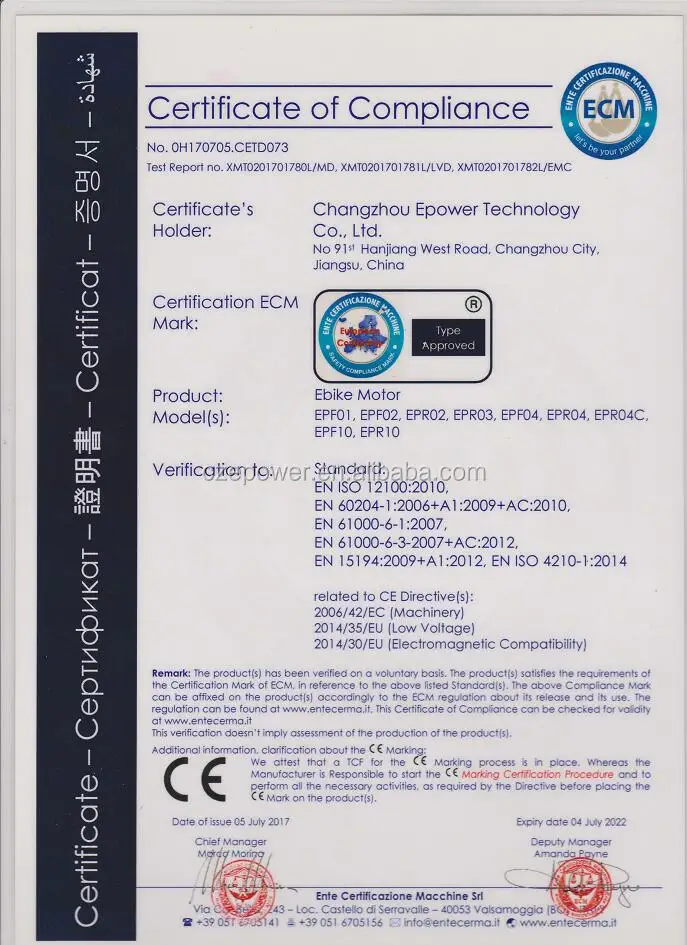

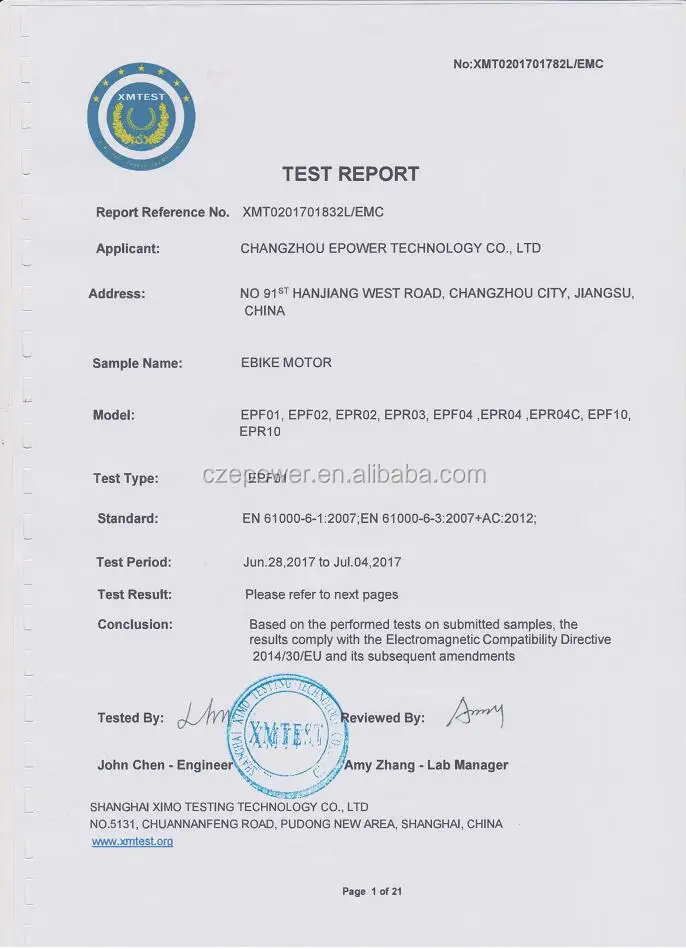

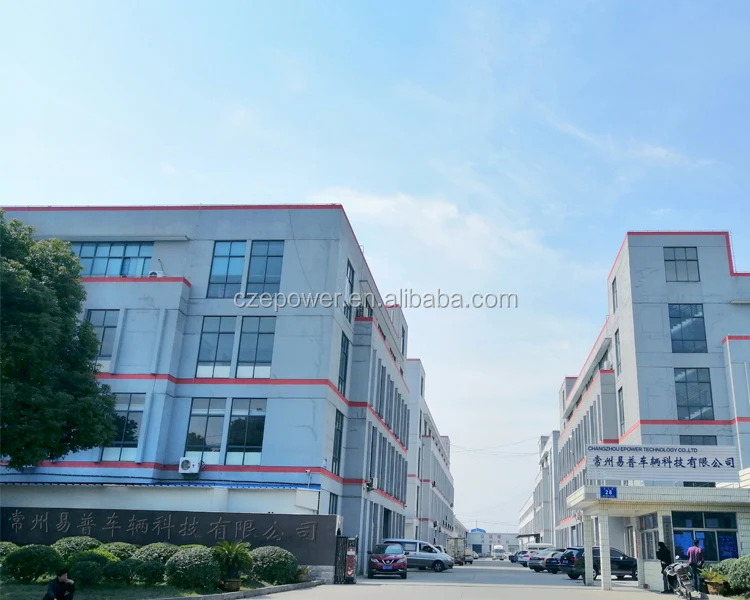

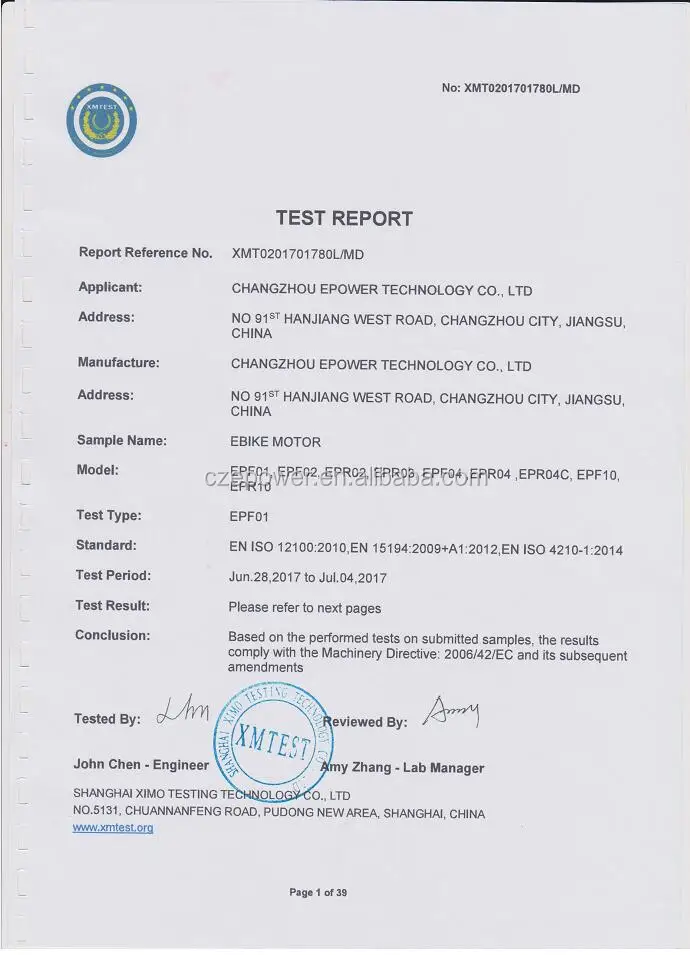

EPOWER PROFILE AND CERTIFICATION
Warranty:
Epower gives two years warranty to EPF02 Motor. During the warranty period, we will send the repaired parts and replacement to client once the motor is approved problem.
