General Description

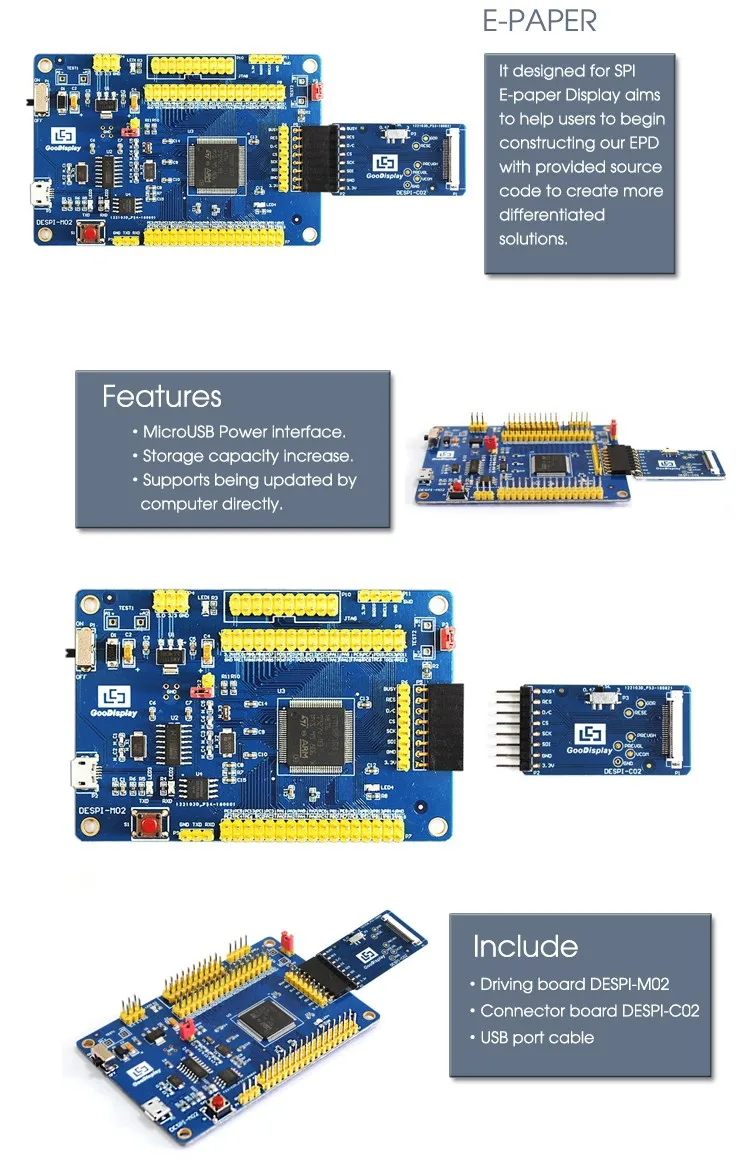

What's included in the package
No. | Standard Accessory Name | Qty |
1 | Driving board DESPI-M02 | 1 |
2 | Connector board DESPI-C02 | 1 |
3 | USB port cable | 1 |
4 | Come with helpful development demo kit with resources and manual (Please contact our sales, we will send the you the documents by email, thanks) | 1 |
Main Parameters
Part Number | DESPI |
Platform | STM32 |
Function | Drive E-paper Display |
Outside Dimension | 90x60mm (DESPI-M02) 41x22mm (DESPI-C02) |
Power Interface | USB Interface |
Power Input | DC5V |
Feature | Fully and Partial refresh |
Grey scale Level | Max 16 grey scale |
Operating Temp. | -20~70℃ |
Example Code | Available |
Reserved Function | USB to serial port, indicator light, keys, current detection and so on. |
