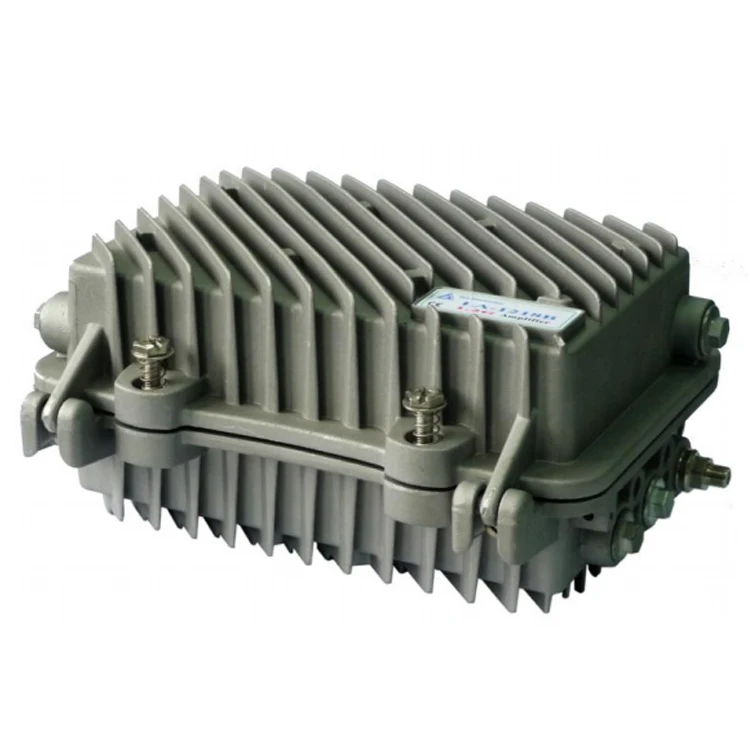

Высокая надежность структура слежения за дружественный макет Gaas технологии SQLA-1218B

Описание и отзывы

Характеристики





Item		Units	Value
Pass Band		MHz	85/105/258 - 1218
Gain		dB	34
Frequency Response		dB	± 0.75
Reference Output Level		dBuV	107@862MHz
Attenuator Adjustable Range		dB	0 - 20, 1 dB step
Equalizer Adjustable Range		dB	0 - 20, 1 dB step
Return Loss		dB	16 @ 85 - 1000 MHz 14 @ 1001 - 1218 MHz
RF Test Point		dB	-20
Noise Figure		dB	≤7
CTB @ PAL D/K 59+Digital		dB	≥70
CSO @ PAL D/K 59+Digital		dB	≥70
Hum Modulation @ 10 A		dB	70



Notes:
1. Forward Gain and Noise Figure measured with 9 dB input EQ and 0 dB input pad.
2. Distortion performance reference output level is 107 dBµV (1 port, Slope, 9dB @ 862 MHz). Digital refers to
550 MHz to 1.2 GHz loading with QAM carriers at -6 dB relative to analog CW carrier levels.

Table 2. Return Path Specifications



Item		Units	Value
Pass Band		MHz	5 - 65/85/204
Gain		dB	24
Frequency Response		dB	± 0.75
Return Loss		dB	18
RF Test Point		dB	-20
Noise Figure		dB	≤ 6





Table 3. General Specifications

Item		Units	Value
Power Consumption (High Gain / Low Gain)		W	≤25
Supply Voltage		V AC	26 - 65
RF Connectors		-	F - female, Imperial
Dimensions ( W x H x D)		mm	280 x 200 x 130
Weight		kg	2.8
Water/Dust Ingress Protection Rating		-	IP 67
Operating Temperature		℃	- 40 - + 55
Storage Temperature		℃	- 40 - + 80
Relative Humidity Range		-	5% - 95%



 Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 20°C.



 Features
♦ Supports 1.2 GHz bandwidth
♦ On site changing frequency split
♦ Compact design, small and exquisite
♦ GaAs technology in use
♦ Improved ESD and Surge protection
♦ Low noise figure
♦ Standard JXP plug-in PADs for all adjustments of attenuation and equalization
♦ Second output can be selected via splitter or tap
