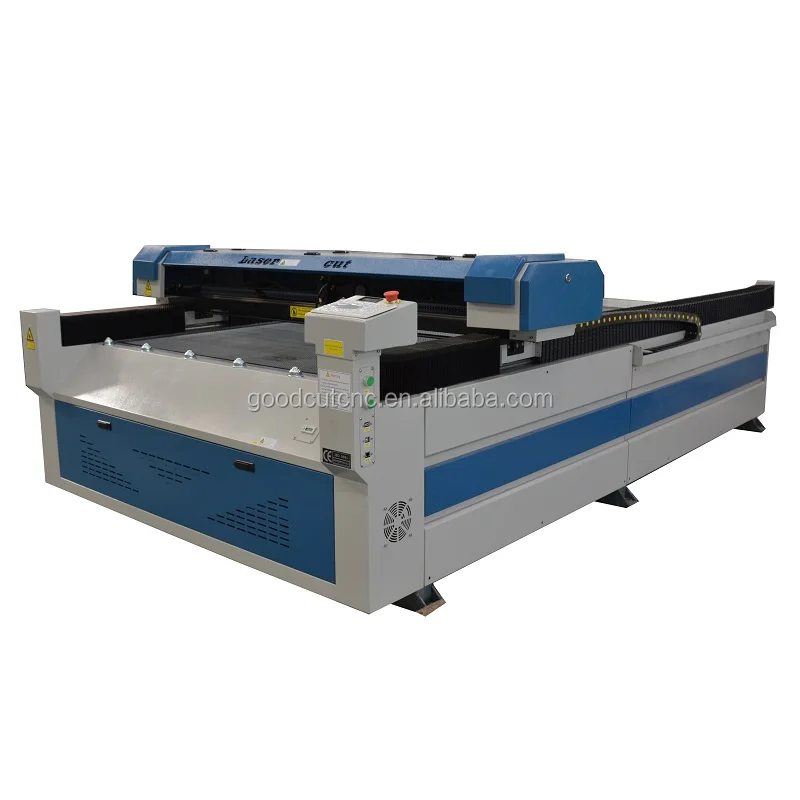

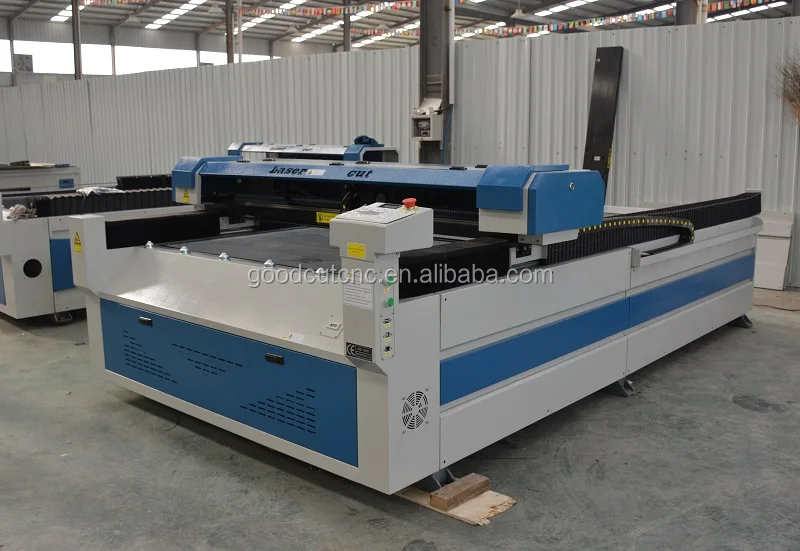

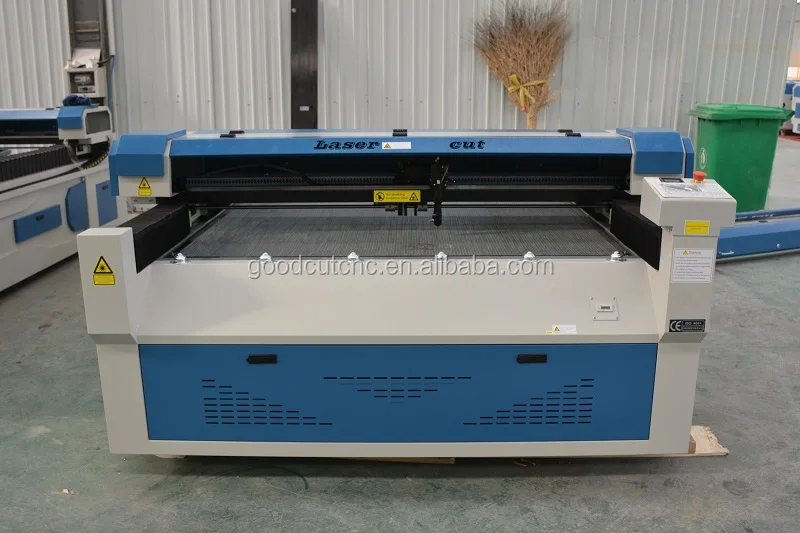

Acrylic wood mdf cardboard plastic rubber PVC foam fabric leather CO2 tube laser cutting machine



Instructions of CO2 tube laser cutting machine:

• 1300*2500mm table size.

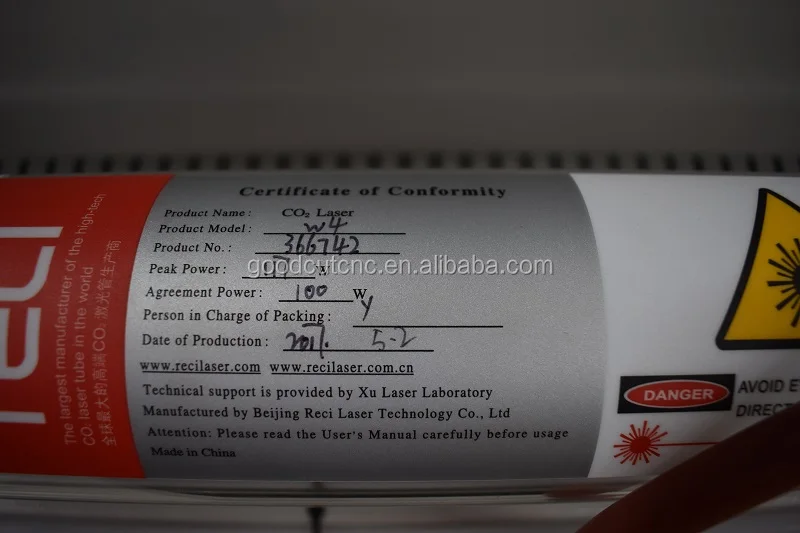

• RECI laser tube W6 model

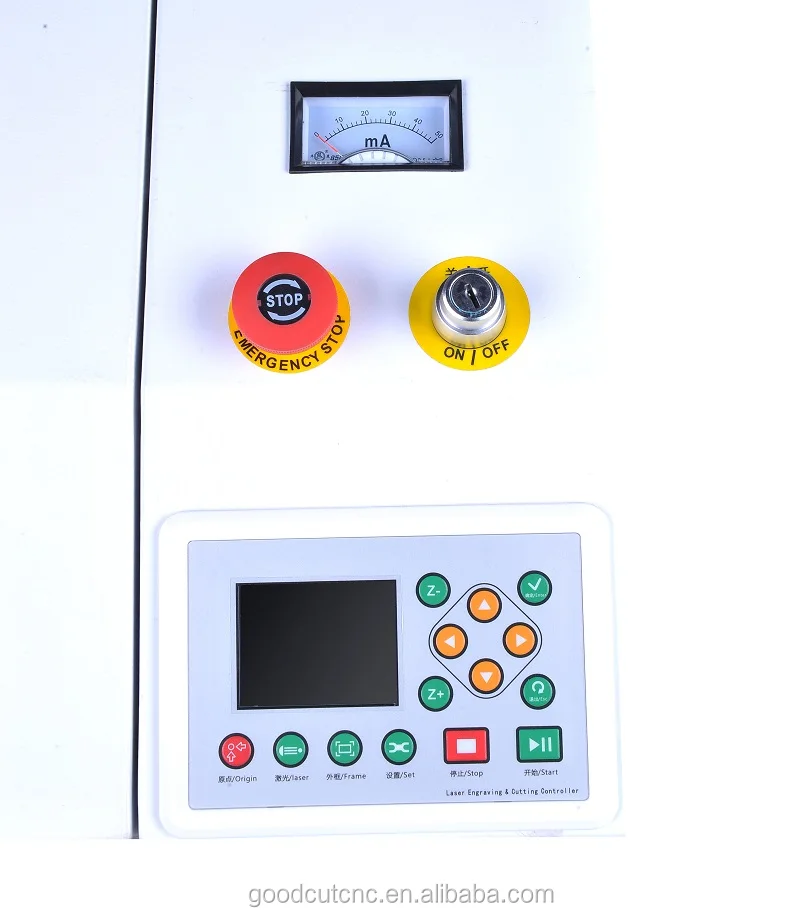

• Ruida laser controller with colored screen


• Auto focus laser head for metal sheets cutting with assistance gas.


• CW5200 water chiller.


• Adjust table hight. 1/3


• Extra rotary device for cylindrical cups:100mm rotary diameter



Features of CO2 tube laser cutting machine:

• Mixed-cut: metal steel such as stainless steel,carbon steel,and nonmetal such as acrylic,wood,etc.


• High precision: X/Y axis adopt Leadshine servo motor with high precision belt transmission,improve the response speed and cutting precision,extend service life.


• Good stability: optimized the nc system control,it can meet the precision parts processing,stable dynamic performance,also can work for long hours.


• The cutting section with good quality: mechanical follow-up cutting head system,cutting head always follows the material to keep the cutting point locaation unchanged,which insures smooth cutting section without processing again.It can adopt to flat or curved surface sheet cutting.


• Adopt sealed co2 laser tube,main consumable items are electric energy,water cooling,auxiliary gas and laser light.


• Simple structure,easy operation,stable laser device and low maintenance cost.

Working size	1300*2500mm(900*600mm,1300*900mm, 1600*1600mm, any size you need can be optional)
Laser tube power	80w(100/130/150/180/280/300w optional)
Laser type	CO2 sealed laser tube,water-cooled,10.6um
Cutting speed	0-50000mm/min
Laser Output	1-100%software setting
Resetting positioning accuracy	≤±0.01mm
Power supply	AC 110 - 220V ± 10%, 50 - 60Hz
Operating temperature	0 - 45°C
Operating humidity	5 - 95%
Min. shaping character	English 1.0mm x 1.0mm
Graphic format supported	BMP, PLT, DST, DXF
Software supported	Tajima,CorelDraw, PhotoShop, AutoCAD
Driving system	Stepper motor
Cooling mode	Water pump(water chiller CW3000/5000/5200/6000)
Min shaping text	English 1mm*1mm









Applications

1) acrylic ,Cloth, tile, cardboard, paper, leather, PU leather, logo embroidery, plastic, rubber, wood

2) leather animals, shells, double color boards, bamboo

3) ABS board, PVC board, fiber and composite materials and other non-metallic materials

4) Shoes, leather clothing, brand processing, embroidery, advertisement decoration, wood processing

5) packaging and printing, laser knife mold, decoration decoration industry, craft, toys



Package and delivery

Machine will be clean and fixed on the wood board, every auxiliary parts will be packed by film, laser

tube will set in one independent box , and fixed by sponge. Then, machine will be surrounded by the

film and air rubber film,after that, will packed by the standard export plywood.Finally, will surround

by the metal line again. The machine will be protected well.
