Генератор бензинового двигателя гибридная система питания Дрон с неподвижным крылом GPS

Описание и отзывы

Характеристики

Model features
Vertical take-off and landing	Low requirements for landing and landing points, high operating efficiency.
Simple structure	Easy to operate in a short time.
Full autonomous flight	One-button take-off, safe and efficient.

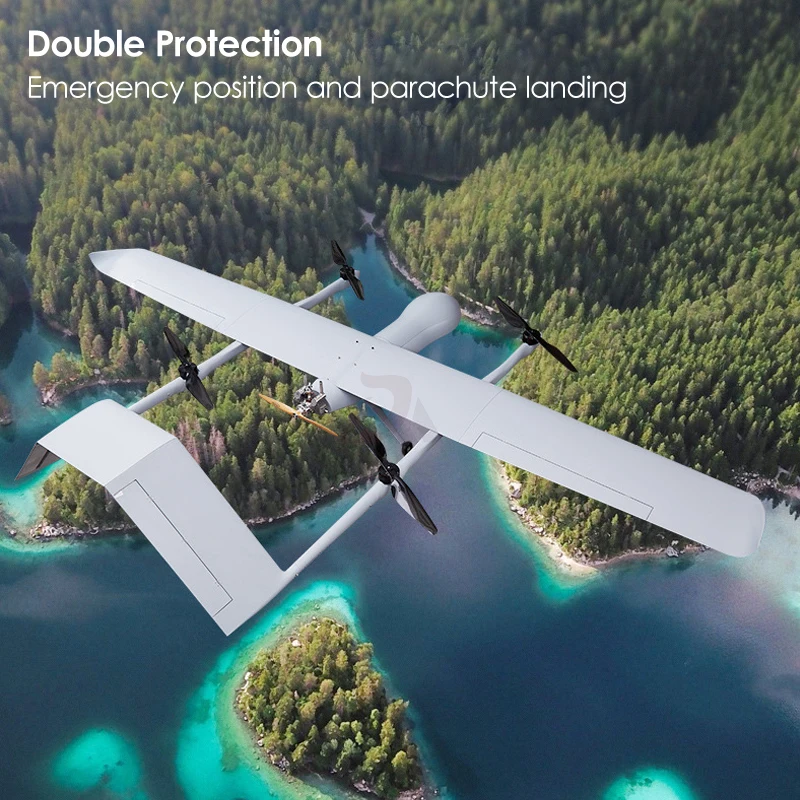

High security	Double protection for emergency landing and open umbrella.
Flight duration	4-6 Hours

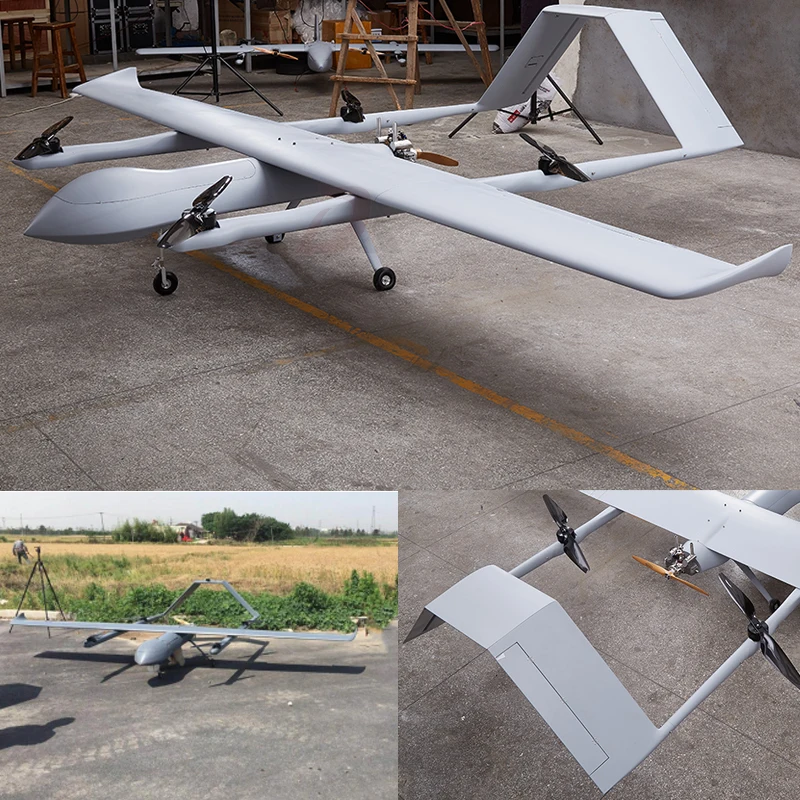

Aircraft Parameters
Cruising speed	23-26s/m
Radius of flight	280km
Aircraft length	1.55M
Wing width	4.6M
Maximum takeoff weight	30KG
Flight altitude	Maximum 5000m
Payload	3-5Kg
Wind resistance	Grade 6

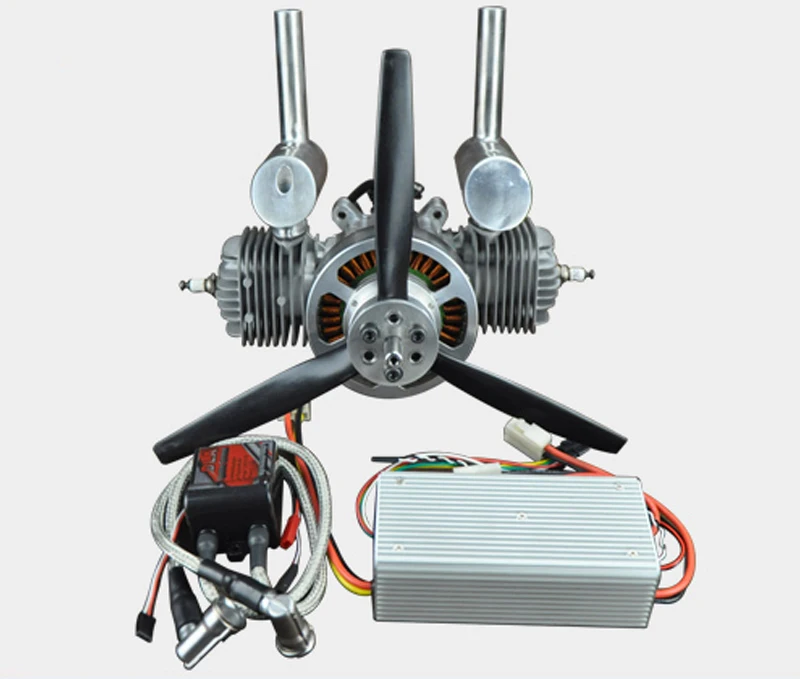

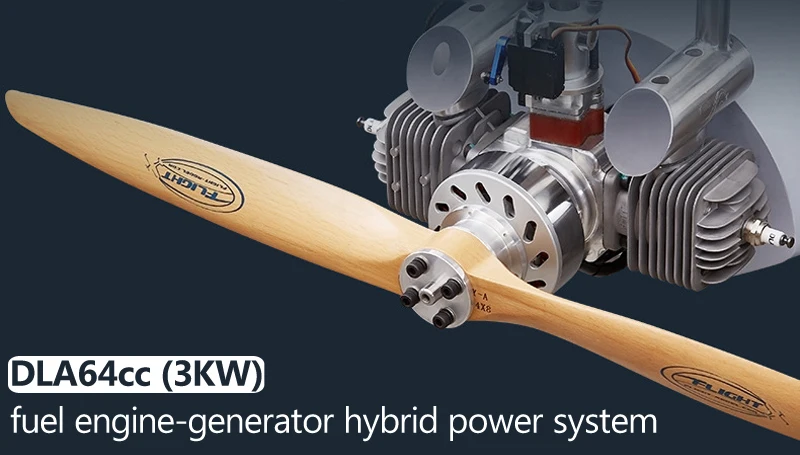

Power System	64cc engine-generator hybrid power system(Customizable)
Body material	Full composite material

Autopilot performance:
full coverage of the model;
Satellite navigation
[real-time GPS/GLONASS/Galileo/B Multi-system signal reception];
attitude accuracy 0.5°, heading accuracy 1°;
centimeter-level positioning;
High precision and high dynamic motion measurement.

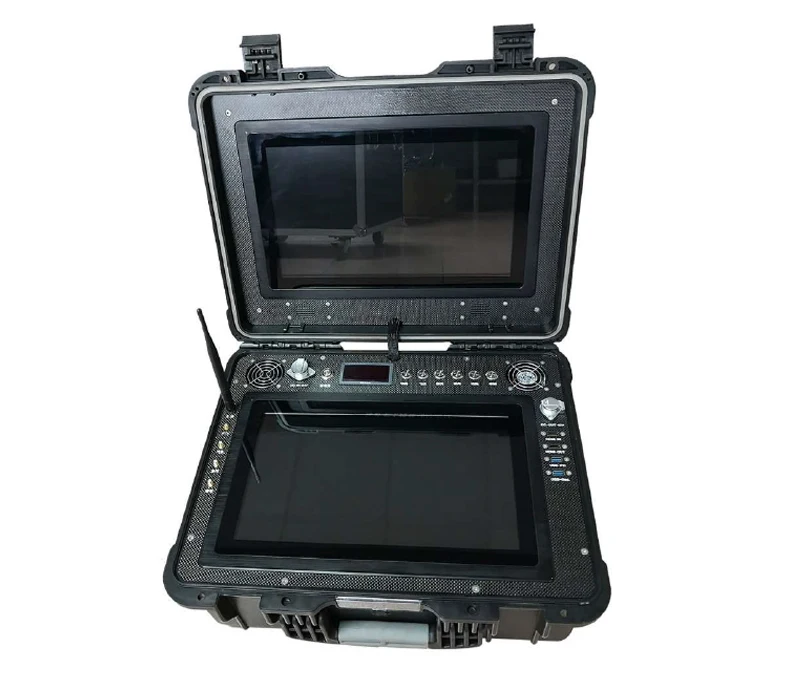

Ground Control Station

ITEM

Functions/Technical Parameters

FEATURES

1. UAV control: parameter setting, flight check, route planning, flight data display, flight status monitoring, abnormal alarm, flight data saving and playback; 2. Video image display: real-time display of the pod capture image: 3. Data link: integrated flight control data link, HD Image transmission link; 4. 12V DC power supply: 12V DC power output (maximum power 24W); 5. WiFi function: The computer can connect to the public network via WiFi; 6. USB interface: 3 USB device connection interfaces; 7. Image output: 1 HD HDMI video output interface; 8. Can integrate image transmission and digital transmission links; 9. Other functions  can be customized  according to customer requirements.





Thermal Imaging + Visible Optical Camera Gimbal





SONY EV7520 30x Starlight Camera

Imager sensor:       1/2.8-typeExmor R CMOS

Lens:     30x zoom 4.3 ~129 mm  F1.6 to F4.7

Digital zoom:   12x (360x with optical zoom)

Minimum illumination  Colour: 0.01 lx(F1.6, AGC on,1/30 s)

S/N ratio:       More than 50 dB

Backlight compensation:     YES

High Definition:      1920x1080P(Full-HD)

Minimum object distance: 10 mm (wide end) to 1200 mm (tele end)      (Default: 300 mm)

Video Output:  HDMI/SDI/SD Card/RJ45

Infrared Thermal Imaging Camera

Detector:  Uncooled long wave (8μm~14μm) thermal imager

Detector pixel:       640*480

Lens: 25mm

NETD:       ≤50mK (@25℃)

MRTD:      ≤650mK(@characteristic frequency)

Color palette:  Black, white, pseudo color



OBJECT TRACKING

1,Function description

Build-in normalization ,cross-correlation and tracking algorithm,

combining with object missing recapture algorithm, achieve stable

track of the target.

Support custom characters of user OSD, adaptive gate, cross

cursor, trace information display.



2,Tracking performance

1)Update rate of deviation pixel 50Hz

2)Output delay of deviation pixel <15ms

3)Minimum target contrast 5%

4)the minimal signal-to-noise ratio ( SNR) 4

5)Minimum target size 16*16 pixel

6)Maximum target size 160*160 pixel

7)Tracking speed 32 pixel/frame

8)The mean square root values of pulse noise in the target

position<0.5 pixel
