Products Description

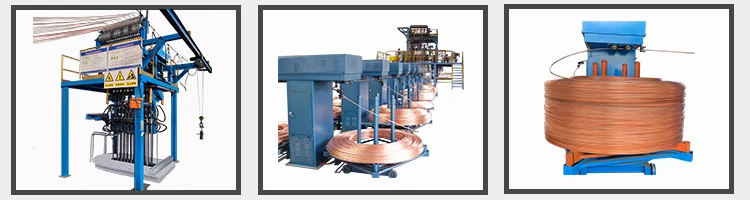

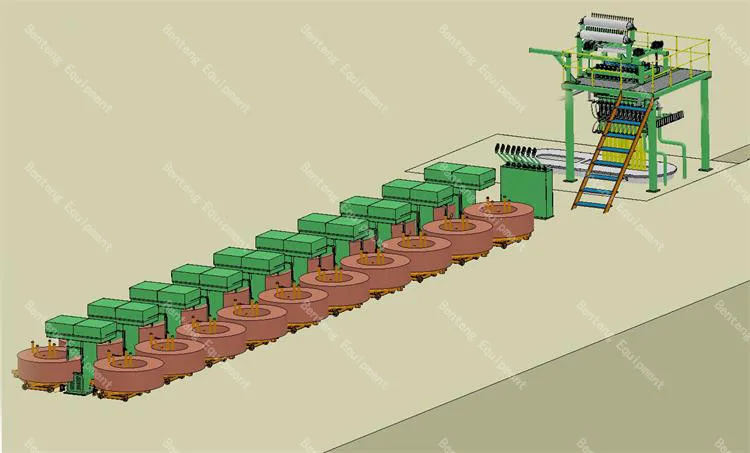

Oxygen free copper rod upward continuous casting machine
Copper rod upward continuous casting machine is used for producing oxygen-free copper rod, copper strip(foil billet), copper blank tube from cathode copper. The machine can be customized to meet your production requirements.

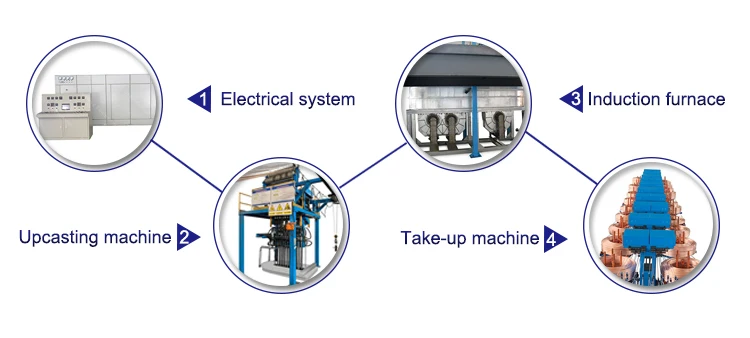

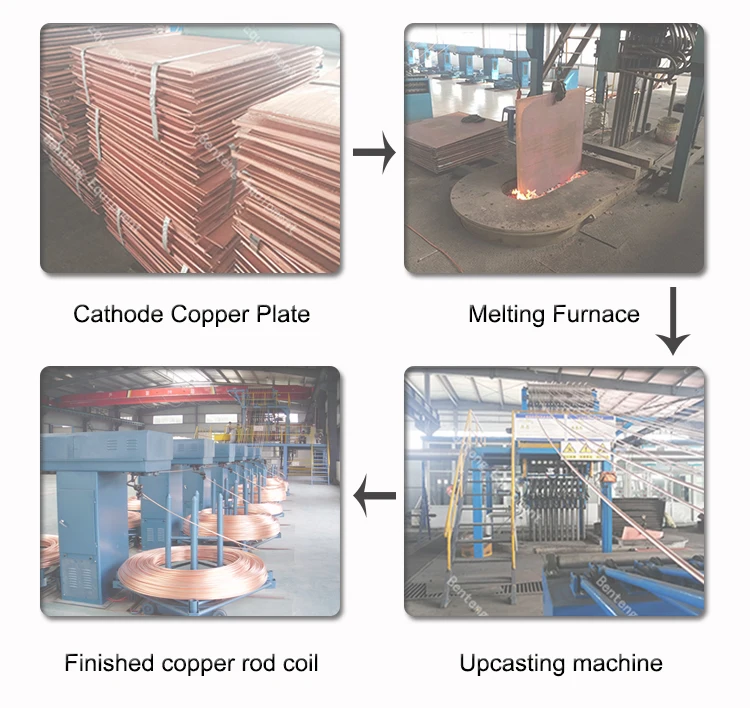

▶Prepare the raw material - cathode copper or copper alloy.
▶Melting furnace has the copper cathode become liquid. To separate it from the air by a layer of charcoal or graphite.
▶Melting furnace has the copper cathode become liquid. To separate it from the air by a layer of charcoal or graphite.
▶The holding furnace keeps the copper in liquid situation at the temperature of 1150℃±10℃.
▶Copper liquid is rapidly crystalized by in the graphite mold, continuously casting copper rods.
▶The final step will be completed by double-strand take-up machine and other auxiliary equipment.
Annual capacity of a single machine line is from 1000 tons to 15000 tons
▶Copper liquid is rapidly crystalized by in the graphite mold, continuously casting copper rods.
▶The final step will be completed by double-strand take-up machine and other auxiliary equipment.
Annual capacity of a single machine line is from 1000 tons to 15000 tons
Main Parameters
Model | Strand | Dia.(mm) | Speed | Annual capability | Drive | Power consumption | Installation capacity |
SYLZ-1000T | 2 | 8-20 | max 3.2m/min adjustable | 1000 tons | double servo | 100KW | 160KVA |
SYLZ-2000T | 4 | 8-20 | 2000 tons | double servo | 160KW | 220KVA | |
SYLZ-3000T | 6 | 8-20 | 3000 tons | double servo | 220KW | 300KVA | |
SYLZ-5000T | 10 | 8-20 | 5000 tons | double servo | 290KW | 330KVA | |
SYLZ-6000T | 12 | 8-20 | 6000 tons | double servo | 300KW | 350KVA | |
SYLZ-8000T | 14 | 8-20 | 8000 tons | double servo | 400KW | 500KVA | |
SYLZ-10000T | 16 | 8-20 | 10000 tons | double servo | 450KW | 600KVA | |
SYLZ-12000T | 20 | 8-20 | 12000 tons | double servo | 480KW | 600KVA | |
SYLZ-15000T | 24 | 8-20 | 15000 tons | double servo | 700KW | 900KVA |
Details Images
Product Details

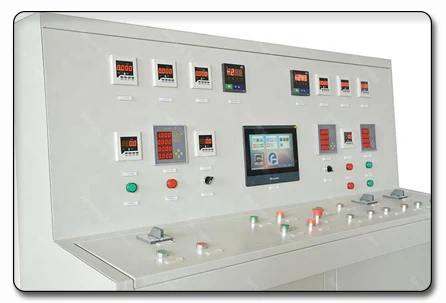

Operation desk
●Self-developed PLC control system, permanent updating, supporting CN-EN-PT languages.
●Multifuctional display instrument, controlling the whole machine line easily by your fingers

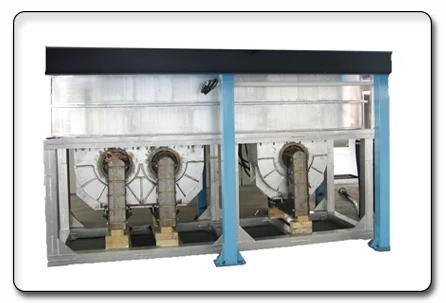

Casting Machine

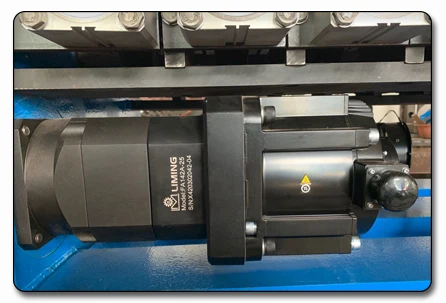

●Double servo motor
●powerful running
Casting Machine
"V" type slot to guarantee the rod accuracy, available to produce differernt size rod on one machine, like
●8mm-20mm
●20mm-25mm
●25mm-30mm
●8mm-20mm
●20mm-25mm
●25mm-30mm

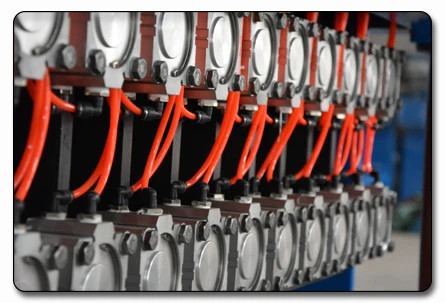

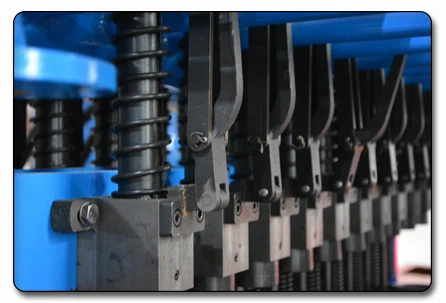

Air cylinder clamp
●more intellegent
●more accurate
●save time and labor
Self-developed spring hanging system, managing your crystallizers freely.

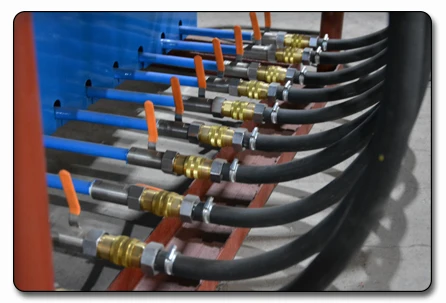

Closed water circuit
●No pollution during production and saving water resources.
Removable inductor
Shorter furnace maintenance time makes your much more profit.Combined our high quality furnace material, service life can be
greatly prolonged.

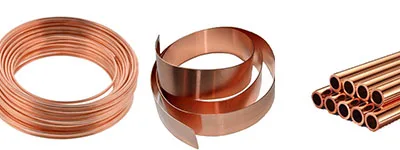

▶Copper rod
▶Copper strip/foil billet
▶Copper tube/pipe billet
▶Copper strip/foil billet
▶Copper tube/pipe billet
After Sales Service
After sales service
◆We will provide remote instructions by instant communication tools within 12 hours when you are facing problems during production.
◆Overseas services are available as customer required. Our engineer have assisted customers from over 20 countries.
◆Overseas services are available as customer required. Our engineer have assisted customers from over 20 countries.
Packing&Shipping

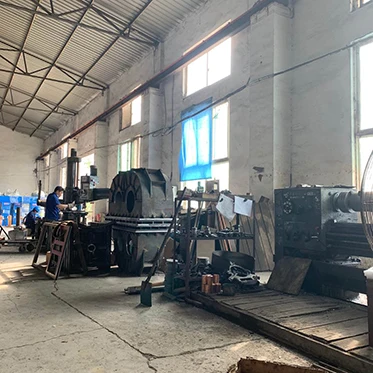

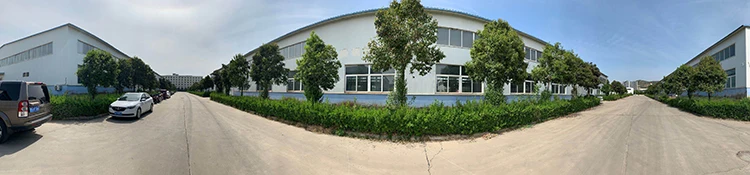

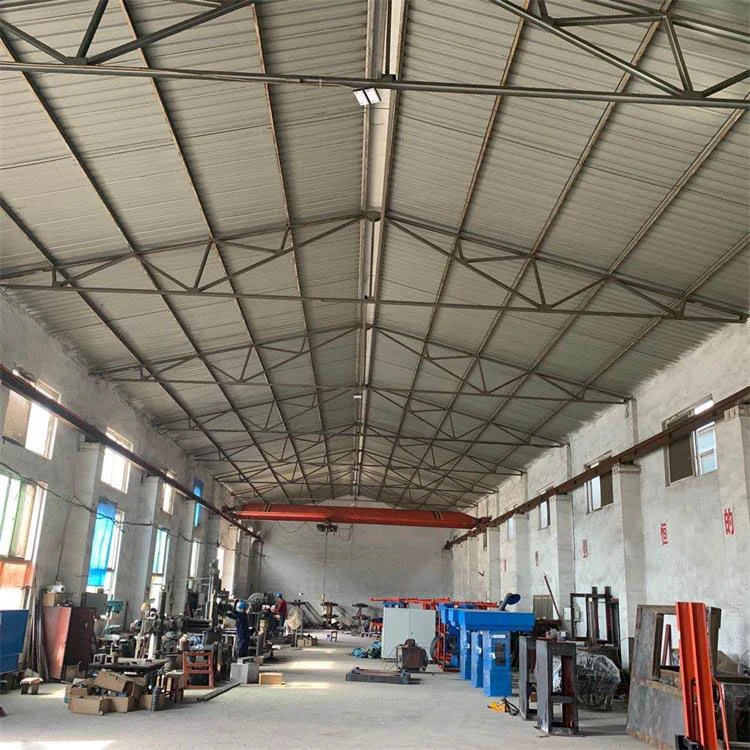

Company Profile
Xinxiang Benteng Electrical Equipment Co., Ltd is founded in 2008, an experienced Copper upcasting CCM manufacturer from China mainland with state-of-the-art copper processing technology enterprise. Benteng has collected R&D, processing, manufacture, installation and maintainance as intergration.
Keep learning about the equipment and technology of copper processing from peers of home and abroad, great breakthrough has been achieved in craft and technology of upward continuous casting machiner for oxygen-free copper bar/tube/rod. Our copper platoon technology takes a leading place within metal casting industry.
Keep learning about the equipment and technology of copper processing from peers of home and abroad, great breakthrough has been achieved in craft and technology of upward continuous casting machiner for oxygen-free copper bar/tube/rod. Our copper platoon technology takes a leading place within metal casting industry.
FAQ
Q: How do you control the quality of your products?
A: We are manufacturer with our own factory, so it is convenient for one-stop production and inspection. There are experienced engineers and professional QC team in our company. The quality is definitely reliable.
A: We are manufacturer with our own factory, so it is convenient for one-stop production and inspection. There are experienced engineers and professional QC team in our company. The quality is definitely reliable.
Q: What is your lead time?
A: About 60 working days after received the deposit.
Q:How long can I get started to producing finished goods?
A: Around 5 months. After 60 days manufacturing, there is another 60 days for workshop construction and equipment installation.When start the melting furnace to melt copper, it still needs nearly 30 days. Then the machine line can cast bright copper rod.
Q:What kind of services do you have?
A: We promise Presale service:
A: About 60 working days after received the deposit.
Q:How long can I get started to producing finished goods?
A: Around 5 months. After 60 days manufacturing, there is another 60 days for workshop construction and equipment installation.When start the melting furnace to melt copper, it still needs nearly 30 days. Then the machine line can cast bright copper rod.
Q:What kind of services do you have?
A: We promise Presale service:
●Free Technical Consult
●Parameter Details
●Field or video factory visit support/
●Timely Human Online Service
After-sale service:
●1 Year Warranty
After-sale service:
●1 Year Warranty
●Available Engineers Oversea Training
●Field Installation/ Operating Instruction
●Discounted Spare Parts And all of these has been covered in the quotation.
Q: How can I get the quotation and technical details?
A: Just click the online service personel and chat with us immediately!
Q: How can I get the quotation and technical details?
A: Just click the online service personel and chat with us immediately!
