Product Description

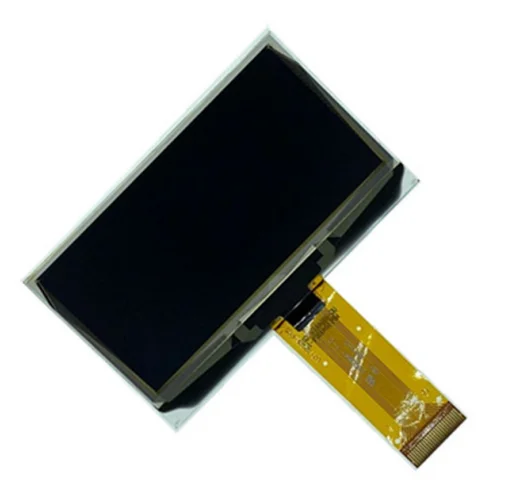

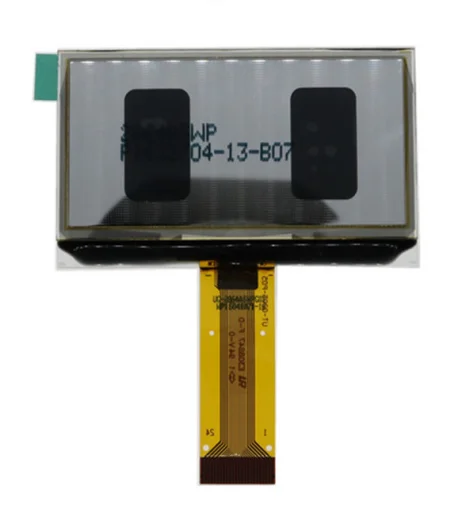

2.4/2.42" green oled display
| Diagonal Screen Size | 2.4/2.42inch |
| Color | Mono(Green) |
| Model number | GME12864-105 |
| Resolutions | 128 × 64 |
| Outline dimension | 60.5 x 31.3 x 2.027mm |
| Active area | 55.01x 27.49mm |
| Pixel pitch | 0.43 x 0.43 mm |
| Pixel size | 0.4 x 0.4 mm |
| Driver IC | SSD1309 |
| Voltage | 3-5V |
| Interface | 8 bit Parallel, 4-wire SPI, I2C |
| Operating temperature | -40~70℃ |
| Storge Temperature | -40~85℃ |
| Assemble | Connector |
| Pins | 24p |

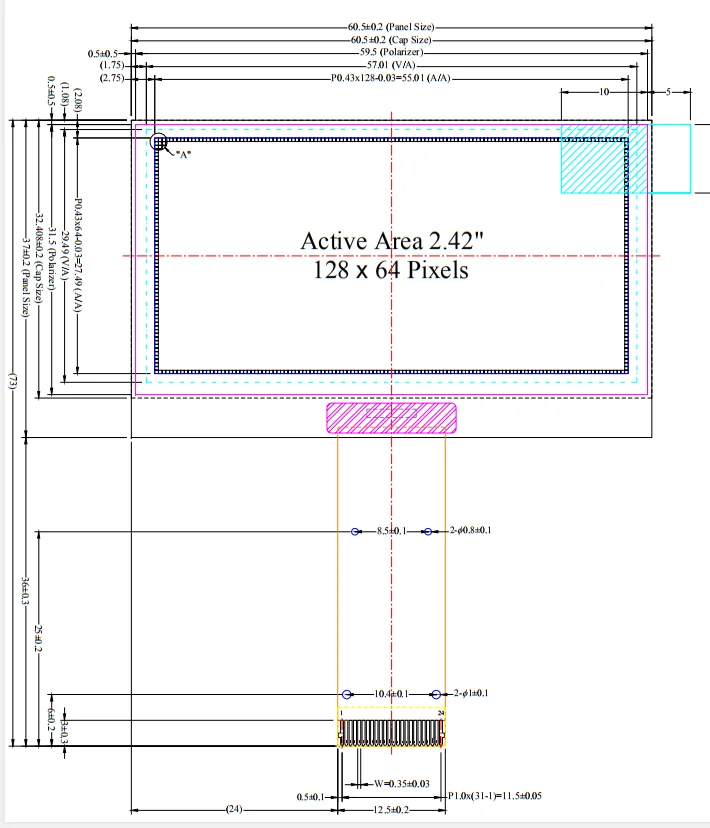

Drawing(2.4/2.42" oled)

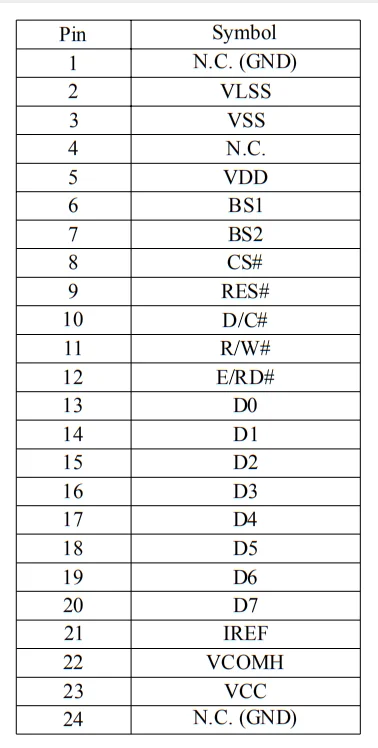

Pin Assignment(2.4/2.42oled,Pins:24P)
Application
