Product Description
Product Name | PE100 Water Supply HDPE Pipe |
Material | High Density Polyethylene |
Standard | GB/T13663-2000, ISO 4427-1:2007 |
Specification | 20mm-1200mm |
Pressure | PN0.6Mpa SDR26; PN0.8Mpa SDR 21; PN1.0Mpa SDR17; PN1.25Mpa SDR13.6; PN1.6Mpa SDR11 |
| Connection | Socket fusion joint, Butt fusion joint, Electro fusion joint, Flanged joint |
| Main Application | Water Supply or Drainage |
| Guarantee | More than 50 years |
OUR HDPE PIPE FEATURES
1. High toughness and good seismic performance;
2. The connection is reliable;
3. Low density, light weight, easy to handle and install
4. Can resist a variety of chemical media corrosion;
5. Excellent hydraulic performance, the wear resistance coefficient is only 0.009;
6. Long service life, up to 50 years;
7. Good hygiene and environmental performance;
8. Better resistance to slow crack growth (SCG) and rapid crack propagation (RCP).
OUR HDPE PIPE SPECIFICATIONS
| DIAMETER | PN16 | PN12.5 | PN10 | PN8 | PN6 |
|---|---|---|---|---|---|
| SDR11 | SDR13.6 | SDR17 | SDR21 | SDR26 | |
| OD*THICKNESS | OD*THICKNESS | OD*THICKNESS | OD*THICKNESS | OD*THICKNESS | |
| mm | mm | mm | mm | mm | |
| 20 | 20*2.3 | - | - | - | - |
| 25 | 25*2.3 | - | - | - | - |
| 32 | 32*3.0 | - | - | - | - |
| 40 | 40*3.7 | - | - | - | - |
| 50 | 50*4.6 | - | - | - | - |
| 63 | 63*5.8 | 63*4.7 | - | - | - |
| 75 | 75*6.8 | 75*5.6 | 75*4.5 | - | - |
| 90 | 90*8.2 | 90*6.7 | 90*5.4 | 90*4.3 | - |
| 110 | 110*10.0 | 110*8.1 | 110*6.6 | 110*5.3 | 110*4.2 |
| 125 | 125*11.4 | 125*9.2 | 125*7.4 | 125*6.0 | 125*4.8 |
| 140 | 140*12.7 | 140*10.3 | 140*8.3 | 140*6.7 | 140*5.4 |
| 160 | 160*14.6 | 160*11.8 | 160*9.5 | 160*7.7 | 160*6.2 |
| 180 | 180*16.4 | 180*13.3 | 180*10.7 | 180*8.6 | 180*6.9 |
| 200 | 200*18.2 | 200*14.7 | 200*11.9 | 200*9.6 | 200*7.7 |
| 225 | 225*20.5 | 225*16.6 | 225*13.4 | 225*10.8 | 225*8.6 |
| 250 | 250*22.7 | 250*18.4 | 250*14.8 | 250*11.9 | 250*9.6 |
| 280 | 280*25.4 | 280*20.6 | 280*16.6 | 280*13.4 | 280*10.7 |
| 315 | 315*28.6 | 315*23.2 | 315*18.7 | 315*15.0 | 315*12.1 |
| 355 | 355*32.2 | 355*26.1 | 355*21.1 | 355*16.9 | 355*13.6 |
| 400 | 400*36.3 | 400*29.4 | 400*23.7 | 400*19.1 | 400*15.3 |
| 450 | 450*40.9 | 450*33.1 | 450*26.7 | 450*21.5 | 450*17.2 |
| 500 | 500*45.4 | 500*36.8 | 500*29.7 | 500*23.9 | 500*19.1 |
| 560 | 560*50.8 | 560*41.2 | 560*33.2 | 560*26.7 | 560*21.4 |
| 630 | 630*57.2 | 630*46.3 | 630*37.4 | 630*30.0 | 630*24.1 |
| 710 | - | 710*52.2 | 710*42.1 | 710*33.9 | 710*27.2 |
| 800 | - | 800*58.8 | 800*47.4 | 800*38.1 | 800*30.6 |
| 900 | - | - | 1000*59.3 | 900*42.9 | 900*34.4 |
| 1000 | - | - | - | 1000*47.7 | 1000*38.2 |
| 1200 | - | - | - | 1200*57.2 | 1200*45.9 |

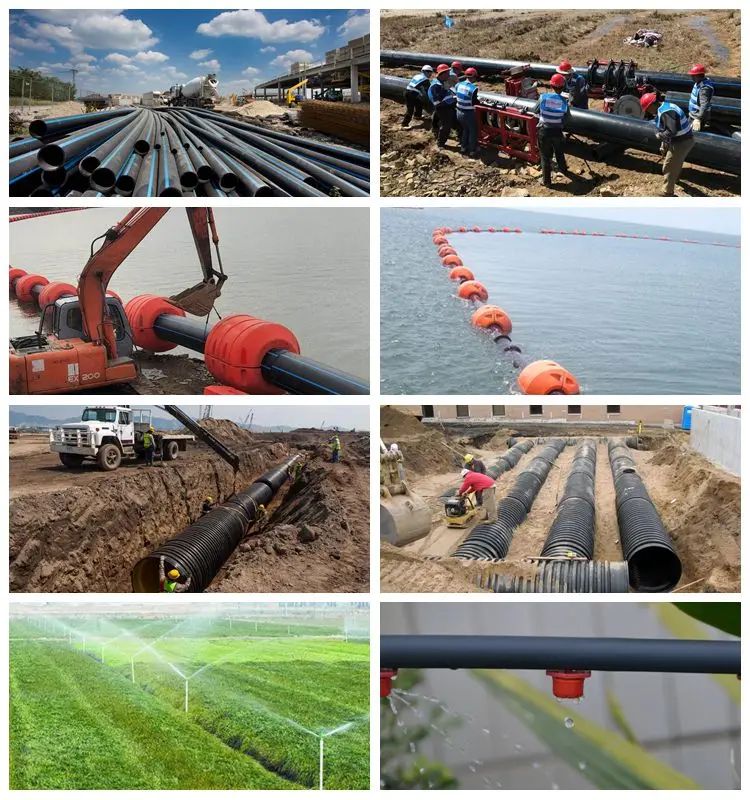

OUR HDPE PIPE APPLICATIONS
Potable Water, Fresh water, Waste water, Chilled water lines, Firefighting Pipe lines, Corrosive Chemical lines, Drainage pipe, Sewerage pipe, Irrigation pipe, Gas pipe, Mine pipe, Slurry pipe, Sludge lines, Cooling water lines
Related Products

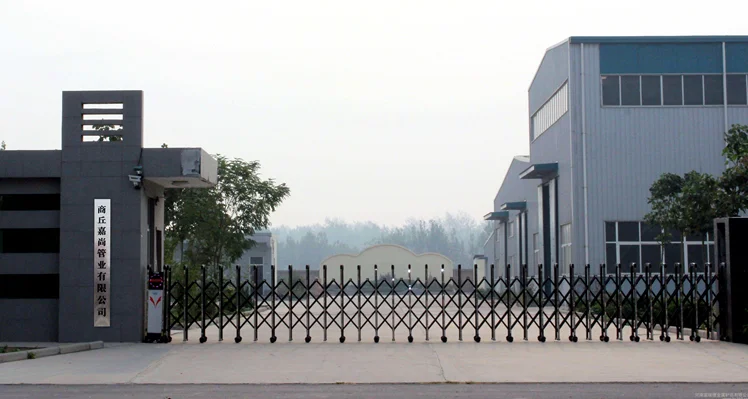

Company Information
Henan Jiashang Information Technology Co., Ltd. Established in 2006, is a large-scale environmental plastic pipe enterprise integrating R&D, production and sales. The company's headquarters is located in Zhengzhou Economic Development Zone, Henan Province. It covers an area of 6,000 square meters and has first-class research and development. Production technology.
The company's main products are: HDPE, PP-R, PVC-U, CPVC, MPP and other series, widely used in construction engineering, municipal engineering, agricultural irrigation and drainage, gas transportation, home improvement, power cable sheathing and other fields. There are nearly 3,000 kinds of pipes, fittings and valve products of different varieties and specifications. Among them, the production and sales of PE water supply pipes and HDPE drainage pipes are among the best in the industry.
At present, the company has more than 200 advanced production units at home and abroad, including 72 automatic pipe production lines, more than 40 computer-controlled injection molding machines, and more than 70 other auxiliary equipment. The annual production capacity of various series products reaches 200,000 tons.

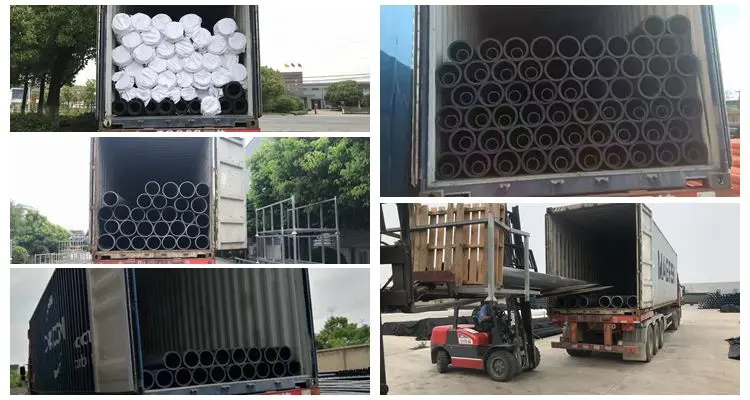

Packaging & Shipping
Packing: 5.8m/pc or 11.8m/pc in 20'GP and 40'HQ containers.
Delivery Time: Within 15days after receiving the deposit.
Certifications
Our Exhibitions
FAQ
Q: What is your MOQ?
A: As customer's request.
Q: Why choose us?
A: We are a professional and leader of HDPE pipe factory, we offer pipeline system one stop services with competitive price and fast delivery time, and we insure our quality is the second to none.
Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us which product and quantity that you need, we will contact you immediately. More specify the information that you provided more faster and easier you will get the quotation.
Q: Can I make my own design and logo on the product?
A: Yes, we do OEM. Welcome partner from globally, we can make your product in China.
Q: What's the payment term?
A: Order amount <=1,000USD, 100% in advance.
Order amount>=1,000USD, 30% T/T in advance, balance before shipment.
Order amount>20,000USD, 30% T/T in advance, balance L/C at sight acceptable.
Order amount>100,000USD, 100% L/C at sight acceptable.
Q: Still have more questions?
A: Please use the table below and send your questions to us. Thank you.
