Product Description

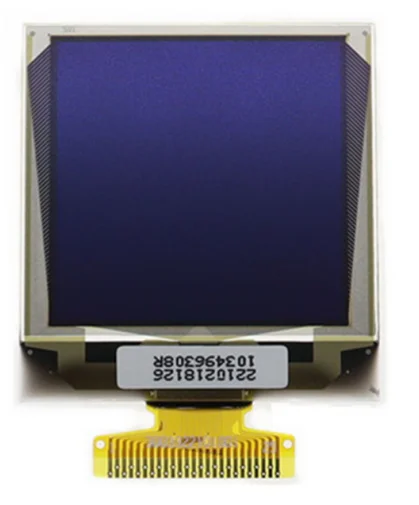

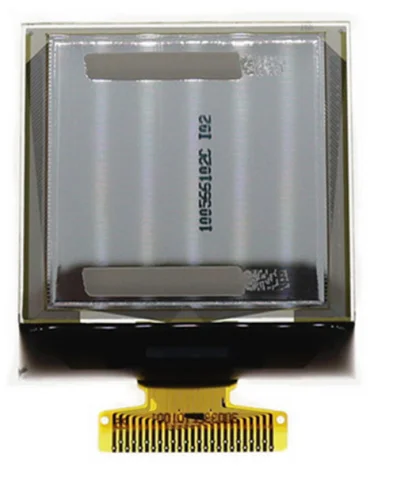

1.5" white oled
| Diagonal Screen Size | 1.5inch |
| Color | Mono(white) |
| Model number | GME128128-01 |
| Resolutions | 128x128 |
| Outline dimension | 33.8 x 36.5 x1.41 mm |
| Active area | 26.86 x 26.86 mm |
| Pixel pitch | 0.21 x 0.21mm |
| Pixel size | 0.19 x 0.19 mm |
| Driver IC | SSD1327 |
| Voltage | 3-5V |
| Interface | 8 bit Parallel, 4-wire SPI, I2C |
| Operating temperature | -40~70℃ |
| Storge Temperature | -40~85℃ |
| Assemble | Soldering |
| Pins | 25P |

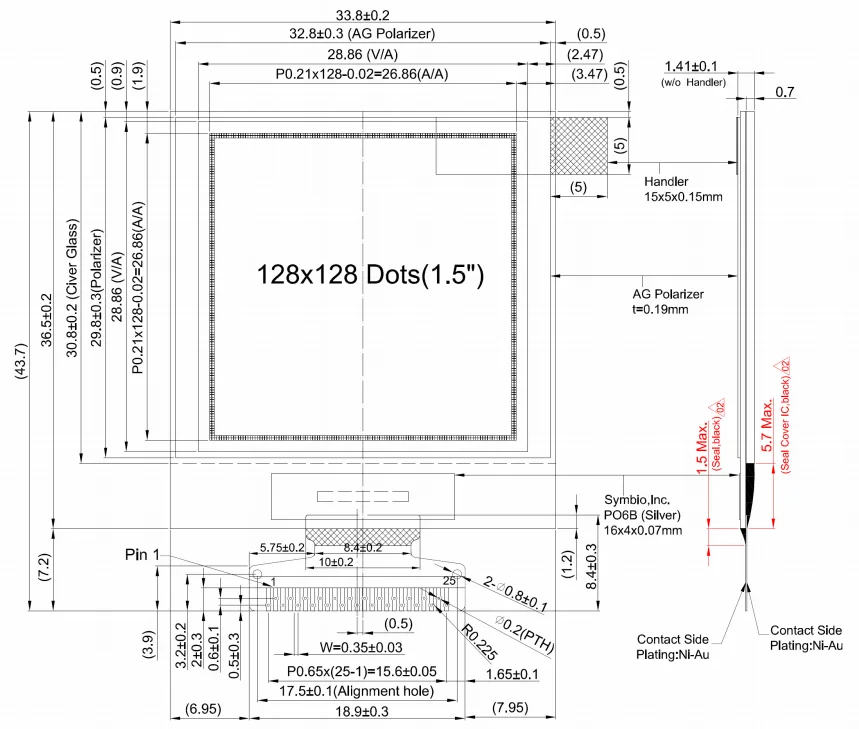

Drawing(1.5" white oled)
Pin Assignment(1.5" oled,Pins:25P)
