Fiber optical transmission laser welding machine is a laser welding equipment which couples the high energy laser beams into the optical fiber, after long-distance transmission, then transformed into parallel lights through collimating mirror to be focused on the work piece to implement the welding. The welding methods include vertical welding, paraller welding, stitch welding and so on.
Product Parameters
Model |
LMN1000HWM-A handheld laser welding machine |
Laser device | 1000W |
Laser wave length | 1080nm |
Welding speed range | 0-120mm/s |
Welding gap |
≤1/5 of the thickness of sheet metal
|
Fiber length | Standard 15m,maximum 30m |
Water cooling | Special for handheld welding |
Electromechanical | 380V/50HZ |
Consumable | Nitrogen welding, output pressure 0.2Mpa |
Total power | 6KW |
Dimensions | 1300X650X1100mm |
Total weight | 150KG |
Advantages
1,High efficiency
Speed is faster than the traditional welding speed by more than two times.
2,High quality
Smooth and beautiful welding seam,without subsequent grinding, saving time and cost.
3,Low cost
80% to 90% power savings, processing costs are reduced by 30%
4,Flexible operation
Easy operation,no need experience can do a good job.
Application
Application Materials
Laser welding can be used in welding stainless steel, aluminum, copper, gold, silver, chromium, nickel, titanium and other metals or alloys, can also be used for a variety of welding between different materials, such as: copper - brass, titanium - gold, Titanium - molybdenum, nickel - copper and so on.
Application Industries
Laser welding machine is widely used in the IT industry, medical equipment, communications equipment, aerospace, machinery manufacturing, battery manufacturing, elevator manufacturing, craft gifts, household appliances manufacturing, tooling, gears, automobile shipbuilding, watches and clocks, jewelry and other industries.
SENFENG supplies on-line pre-sale service and after-sale service overseas;
If you want to learn how to operate the machine,you can come to our company and we will teach you for free; we can also send our engineers to your factory to do the training for free .
And after buying our machine,if repair needed ,we will help you on-line or dispatch engineers to give you a face to face service all over the world.

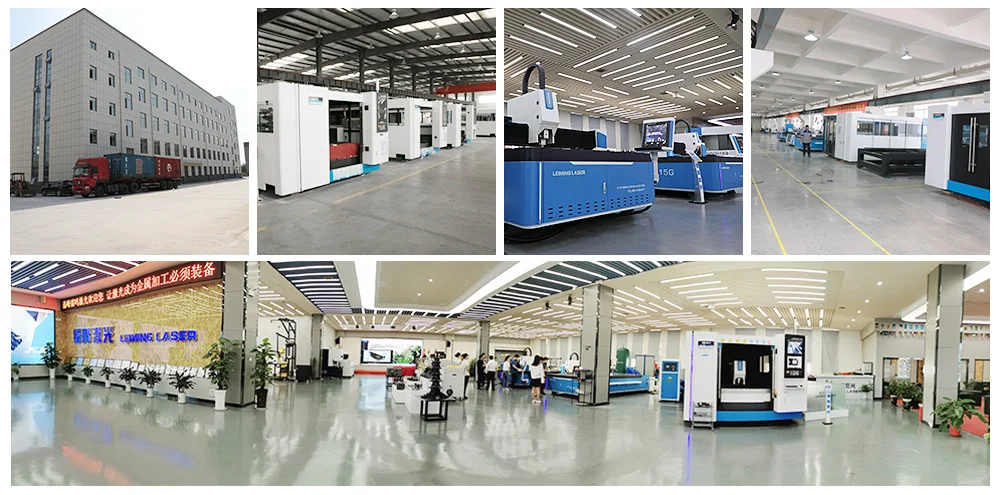

Jinan Senfeng Technology Co., Ltd was founded in 2004, Jinan, China. It is a world renowned manufacturer of laser cutting machine, focusing on manufacturing laser cutting machine, laser engraving machine and laser marking machine. Senfeng is a highly innovative enterprise and has received more than 100 inventions and utility model patents. We have established 3 modern workshops and one more is under construction in Jinan. Senfeng also successfully launched its branches in America and Germany. We have exported our products to 137 countries such as UK, USA, Australia, Thailand, UAE, Brazil, Egypt and so on. And you are very welcome to visit our factory.
