MZ130Y-2 Pile Driving Machine screw nuts drilling machine
Product Description
drilling rig superiority:
1. excellent steel quality of products
2. supply wearing parts for free
3.our crawler hydraulic drilling rig suitable formountainous and muddy pavement.
4.the YuChai Brand diesel engine life is very long
5.the pump desigh , can save the maintenance cost
6.the work efficiency is very high .
7.large hydraulic oil design,also separated controllable, meanwhile guarantee stability during fieldwork.

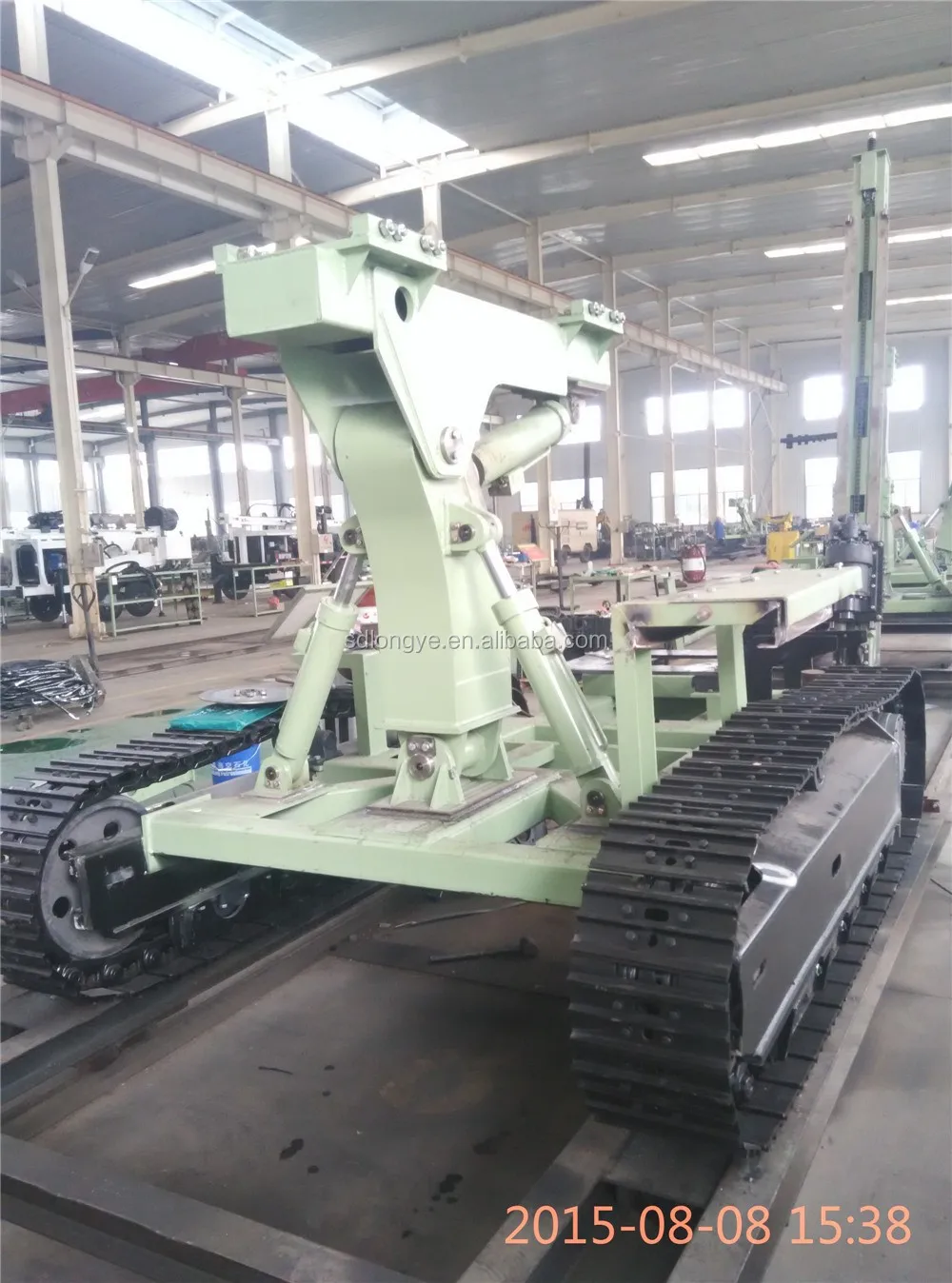

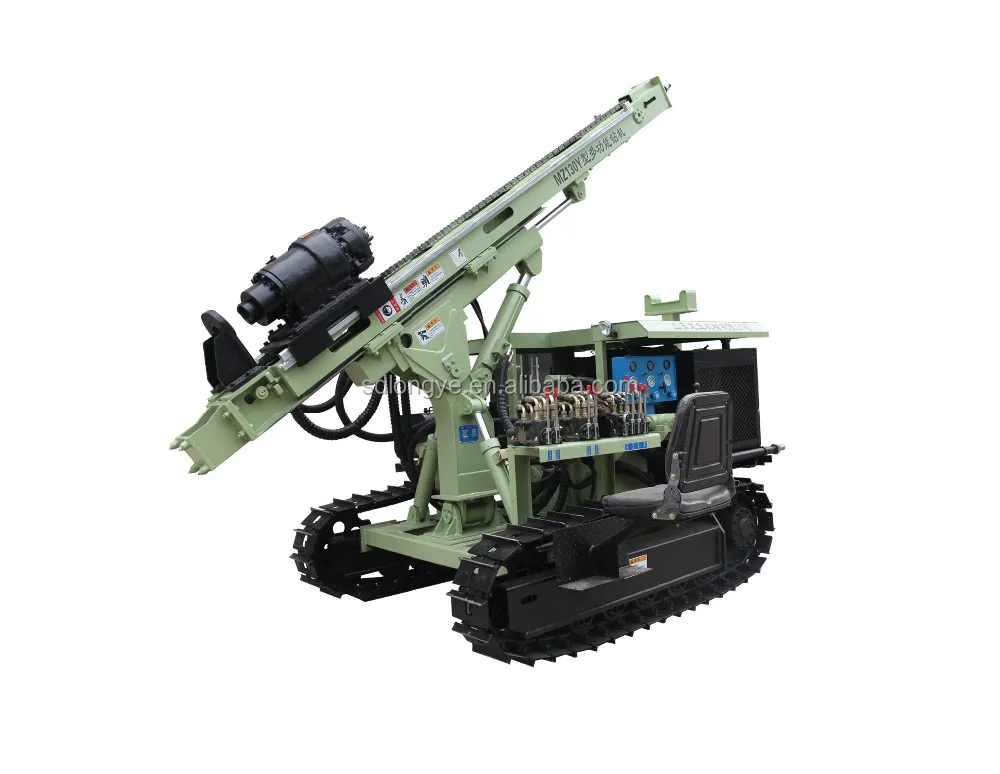

MZ130Y-2 hydraulic crawler drill rig, using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection . The drilling machine structure is compact,.while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good. MZ130Y drilling rig has reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency .

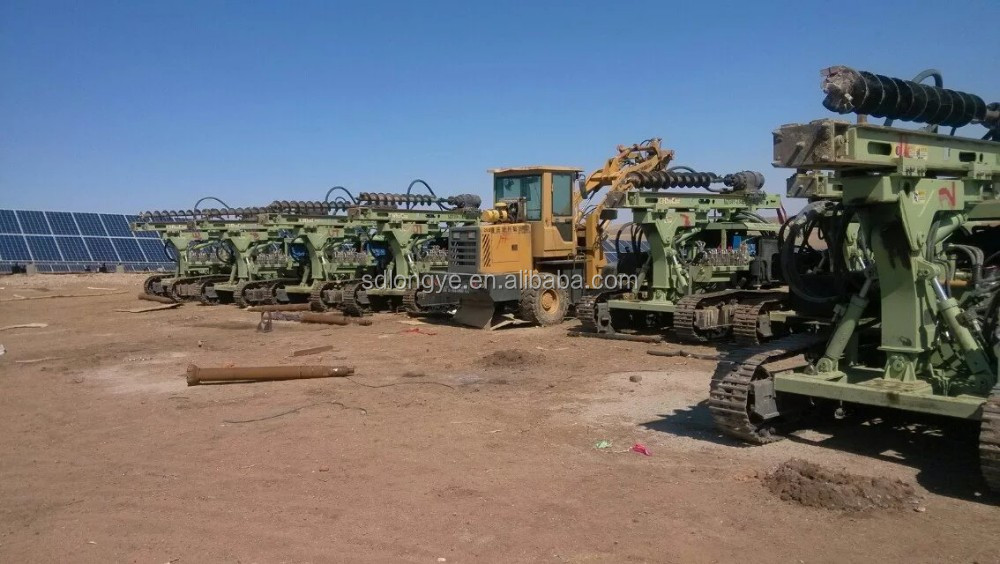

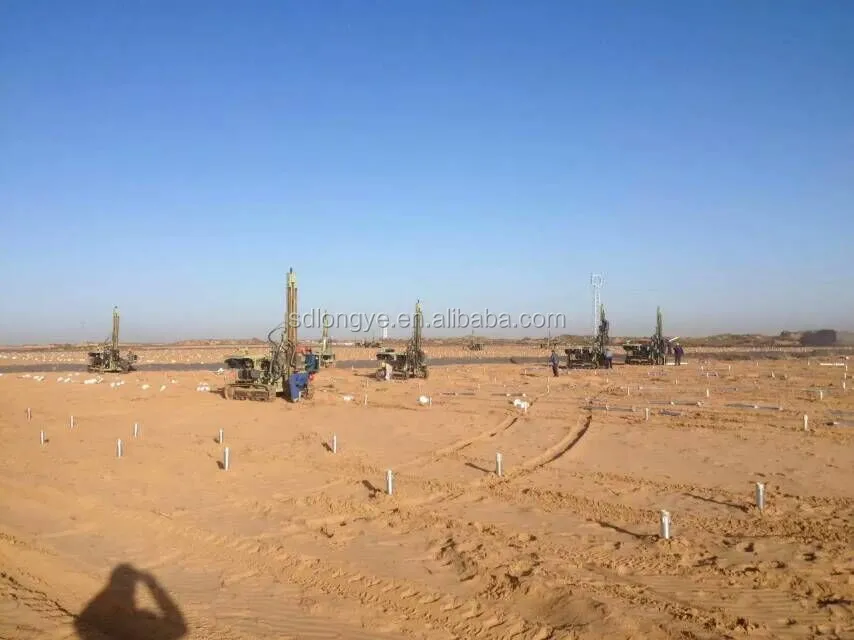

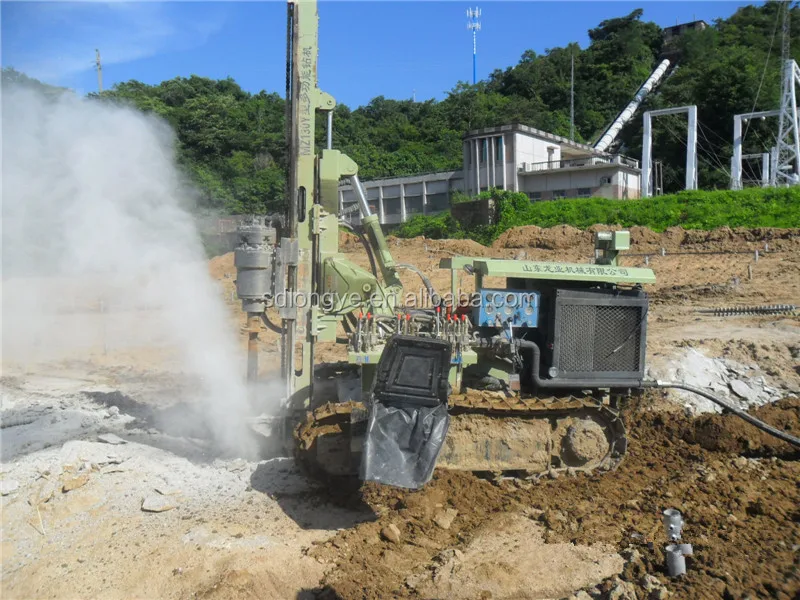

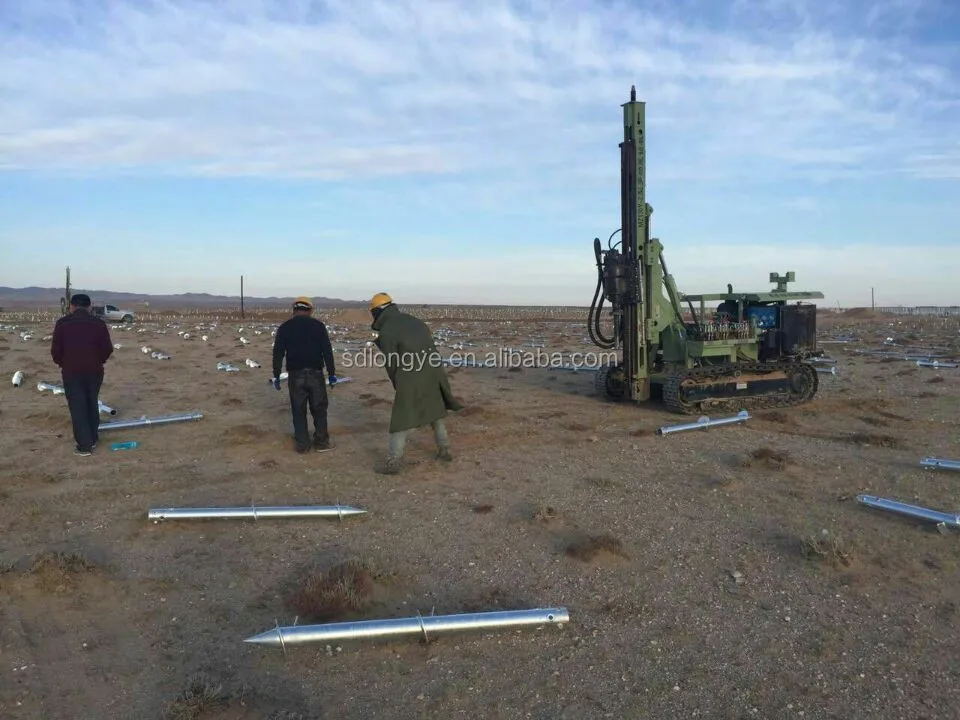

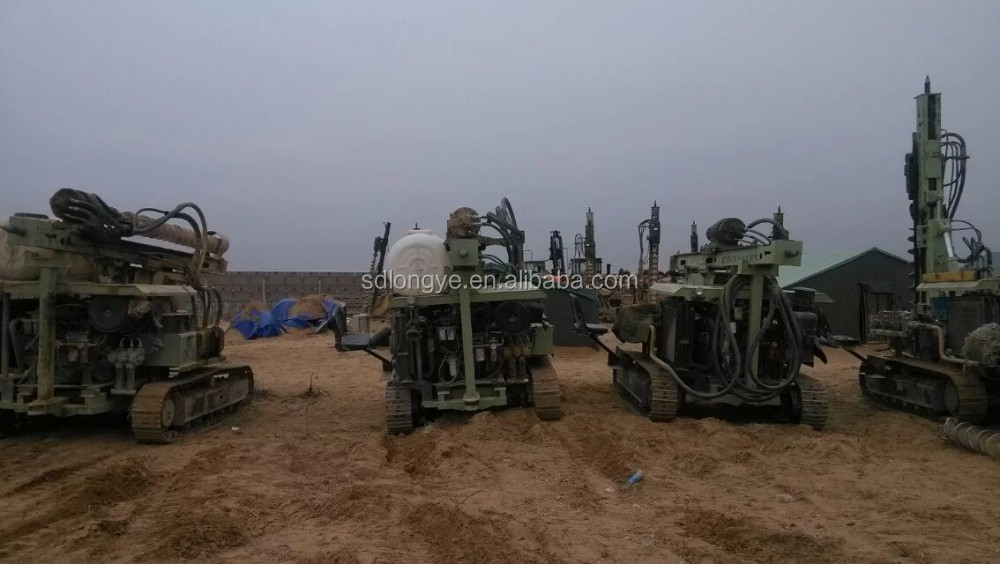

The drilling rig is mainly used for piling anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction, etc.
technical parameters
Air pressure (Mpa) | 0.7-1.6Mpa(medium) 1.6-2.46Mpa(high) |
Air consumption (m3/min) | 10-26 |
Bore diameter(hammer) (mm) | 90-300mm |
Bore depth (m) | 20-100 |
Once promotion(mm) | 2000 |
Screw pipe diameter (mm) | 76/89 |
For rock | F=6-20 |
Bore diameter(screw)(mm) | Max 400mm |
Skid pitch(.) | 100 |
Swinging angle of skid(.) | Left and right total 40° |
Bore depth(m) | 0-30 |
Screw pipe diameter(mm) | 130-400 |
Rotation speed<=""> | 0-70 |
Host power(kw) | 56 |
Climb ability(.) | 35 |
Walk speed(kw/h) | 0-2.5 |
weight(Kg) | 4360 |
Dimension(L*W*H)mm | 4460*1950*2460 |
Company Information

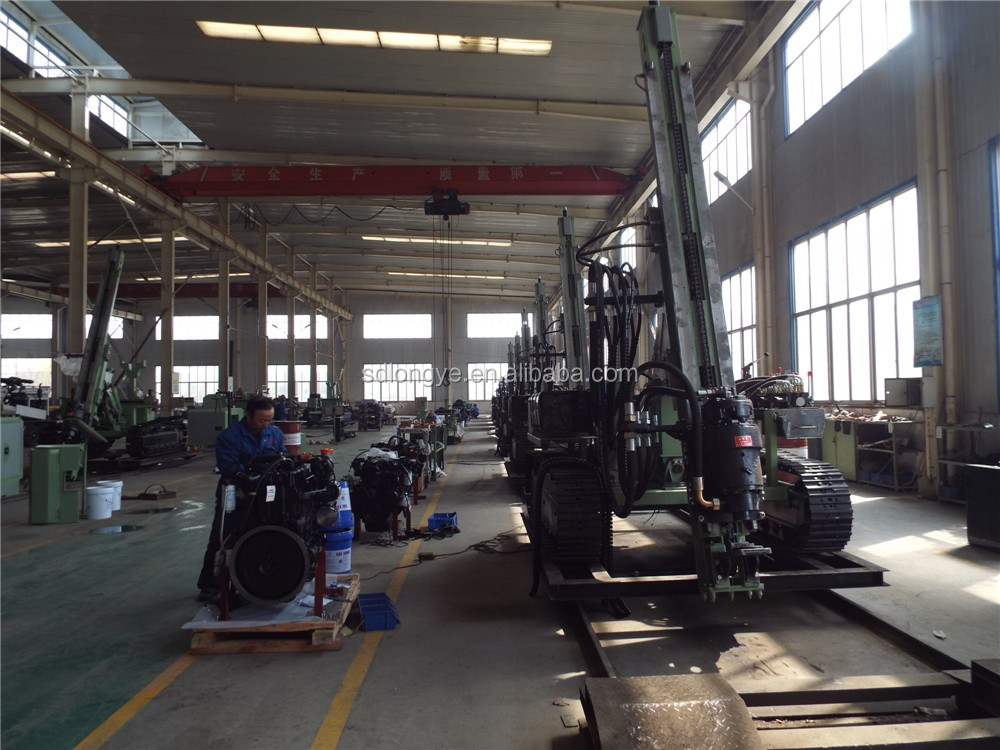

About ShanDong LongYe Machinary Co.,Ltd. is specialized in manufacturing the production of hydraulic presure
down-hole drilling rigs, engineering drills and water well drilling which are backbone enterprises.
We pride ourselves in our ability to offer the right product at the right price.
We develop long term relationships with our suppliers and buyers.
We have a professional after-sale service team and will offer the best service.
