DongFeng осадка сосать грузовик 10CBM илососная машина для грузовых

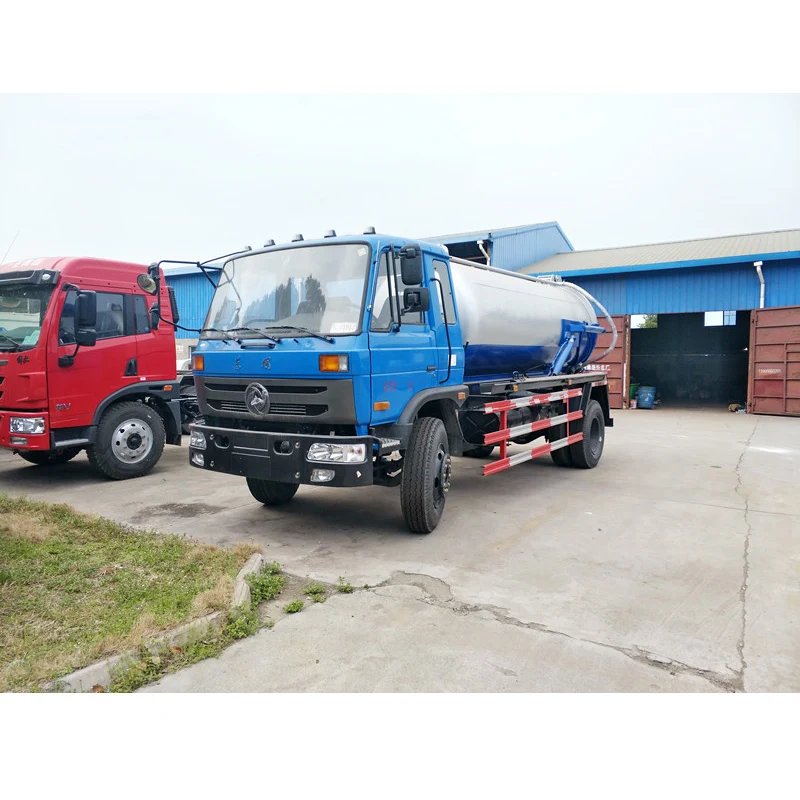

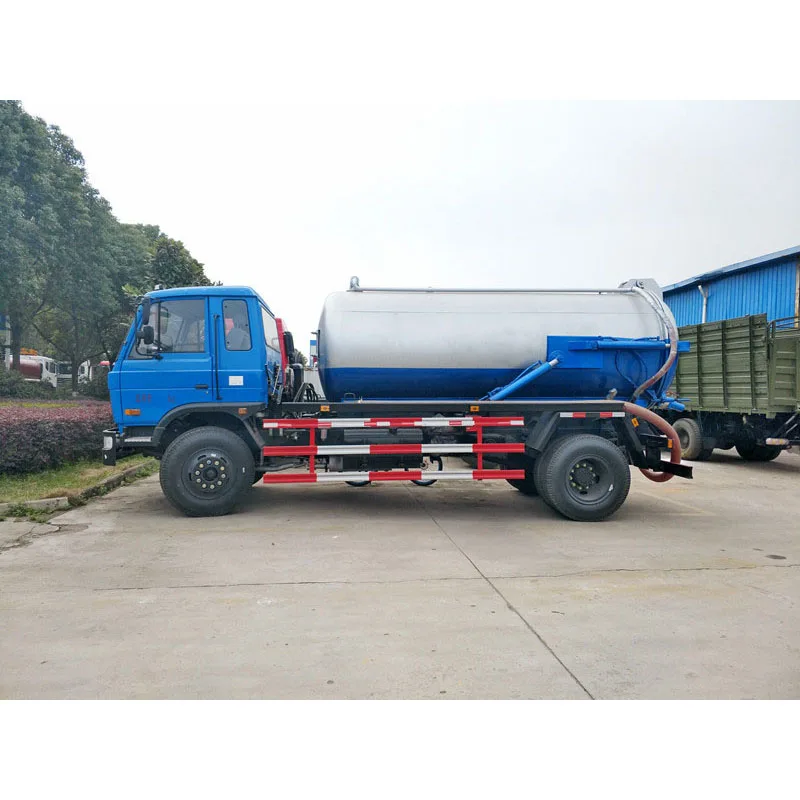

10000liters vacuum suction truck

Vehicle Parameters

General

Vehicle Model

 YZR5162GXWT5

Vehicle Brand

XDR

Chassis Brand

Dongfeng

Overall Dimension(mm)

8000×2500×3250

GVW/Curb/Rated loading Weight(kg)

15800/7400/8205

Chassis Parameters

Cab

Cab Seat

2

Air Conditioner

No

Engine

Fuel Type

diesel

Engie Model

B190 33

Engine Brand

Dongfeng Cummins

Power(hp)

190

Displacement(L)

5.9

Emmission Standard

Euro3

Chassis

Drive Type

4*2

Transmission

6 speed, Manual

Wheelbase(mm)

4500

Tyre Specification

10.00-20

Tyre No.(pcs)

6+1

Max Speed(km/h)

98

Paint

Blue and White

Sewage Tank Structure Parameters

Tank Volume

10000liters

Tank Material

Carbon steel

Tank Thickness

4mm

Vacuum pump

XD-360

Pump speed

120L/S

Suction pipe

6m

Standard configuration

Chassis, sub frame,sewage tank, manhole, vacuum pump,liquid indicator,outlet valve(by gravity),hand-washing device,6m suction pipe,side supporting rod,oil-water separator,anti-overflow valve,hydraulic cylinder for both side for tank lifting, tank back door can be hydraulically opened
