36 В 500 Вт бесзубчатые задние двигатели постоянного тока для электрического

Описание и отзывы

Характеристики

EPOWER EPF10 SPECIFICATION





Basic Specification
Model	EPR10
Nomical Voltage	36V
Design	brushless
Rated Power	500W
Position	REAR Motor
construction	Gearless Motor
RPM	RPM 250-500
Max Torque	40N.m
efficiency	81%
color	BLACK
Mounting Parameters
Brake	V/Disc Brake
Weight	5.8kgs
Installation Width	135mm
Max.Housing Diameter	242mm
Cable in	Shaft Center, Right
Spoke Specification	12G/13G
Further Specifications
Cadence(Pulses/Cycle)	1/1
Magnet Poles	46
Noise	<50dB
Hall Sensor	Optional

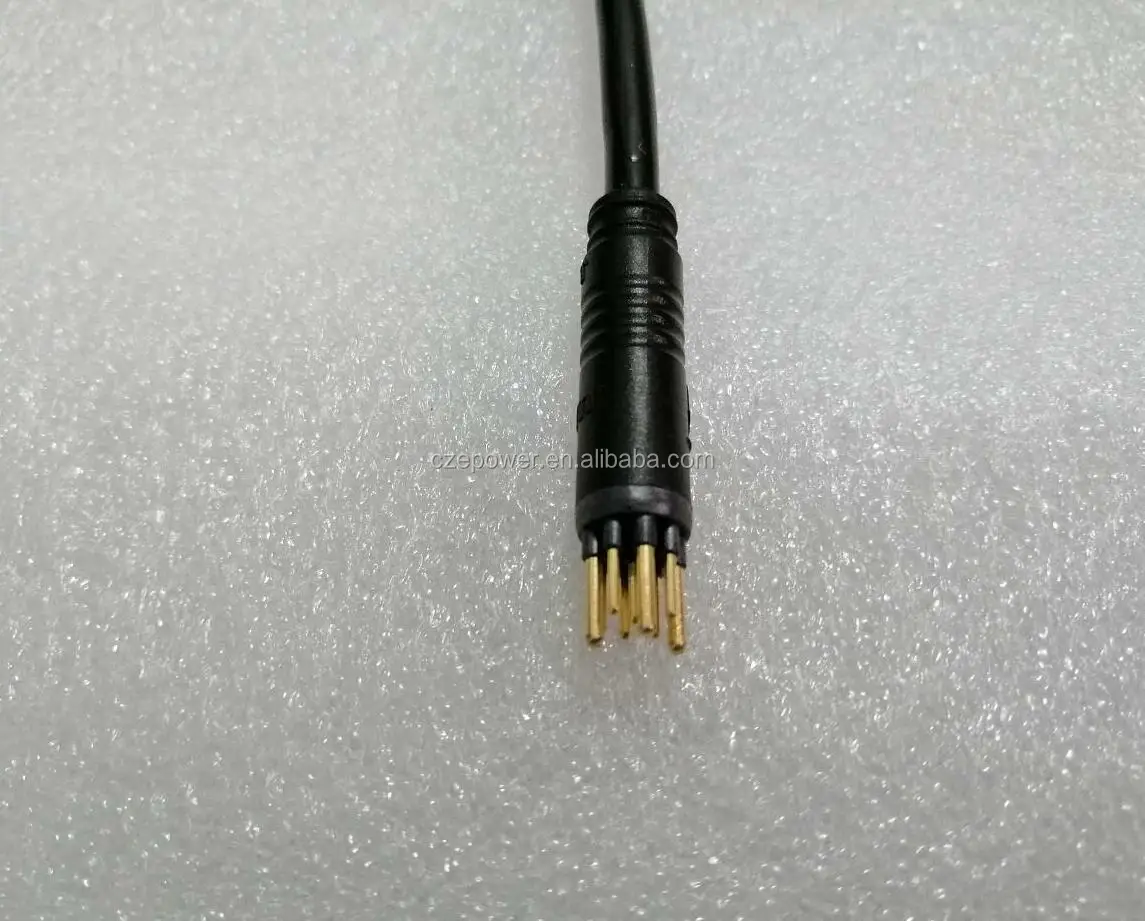

Connector	Waterproof
Tests & Certifications
IP-Code	IP 65
Certifications	ROSH/CE
Packaging & Delivery
Selling Units:	Single item/2Pcs/CTN
Single package size:	20x20x27cm/53X34X20 cm
Single gross weight:	6kgs
Package Type:	standard packing box with foam

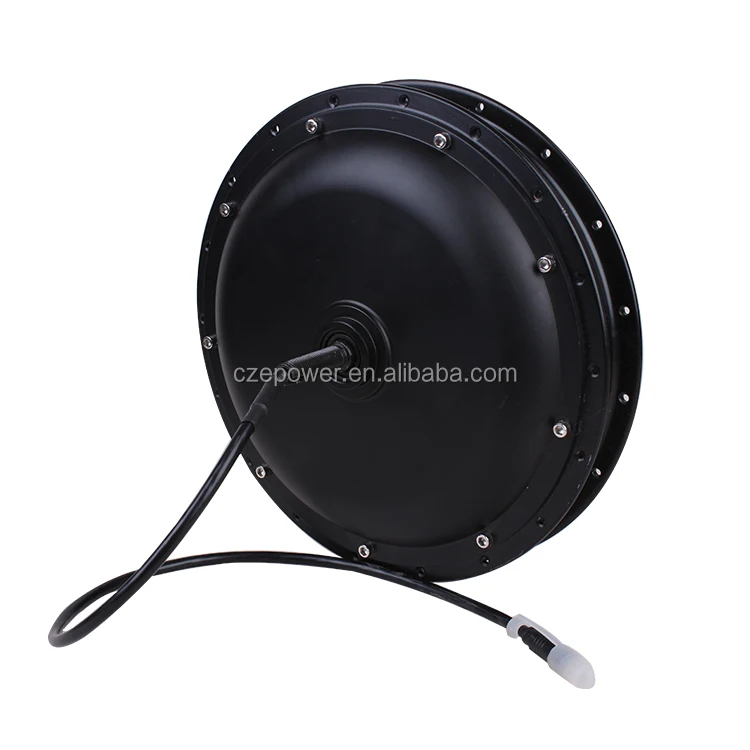

PRODUCT PHOTOS

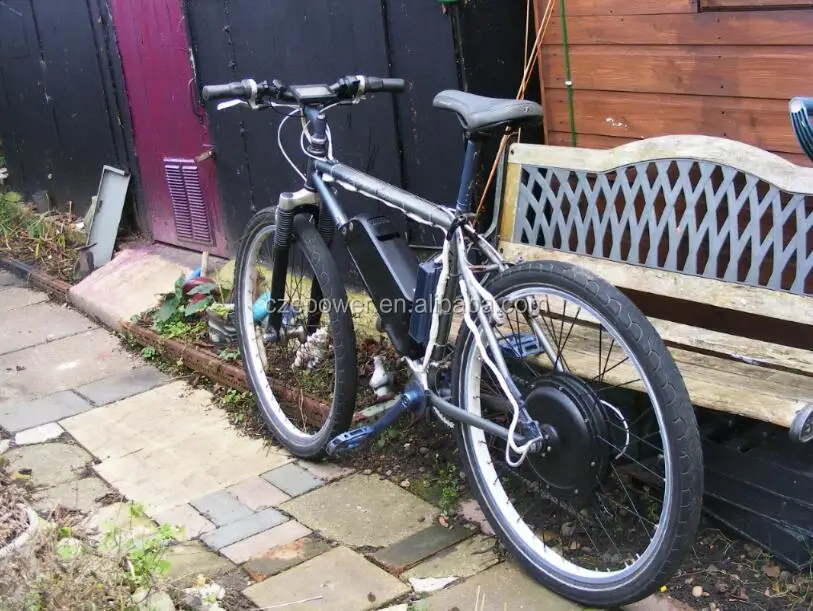

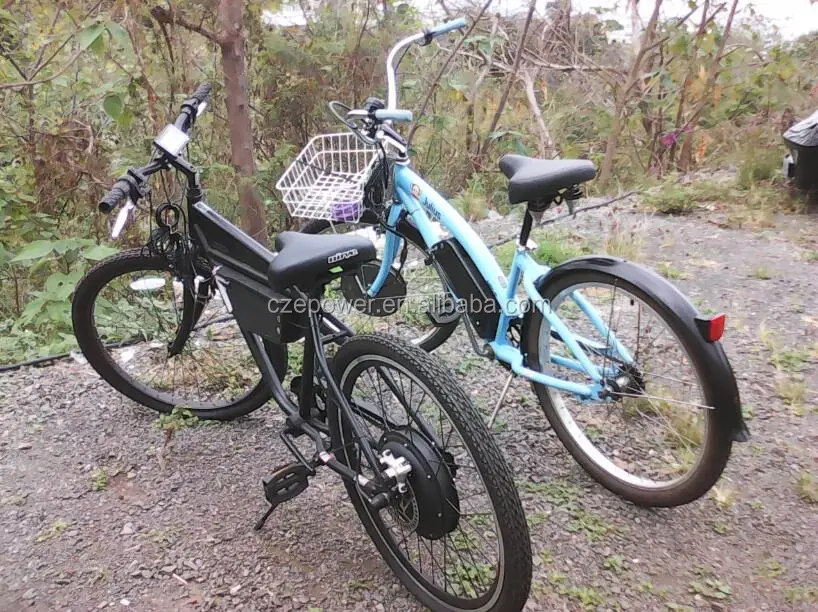

EPR10 MOTOR APPLICATION





















EPOWER PROFILE AND CERTIFICATION

















 Warranty:                                                                                                                                            Epower gives two years for the motor warranty. If the motor has the quality problem, we will send the replacement to clients within one week.
