Specification
Input interface | 1 HDMI interface, |
Output interface | USB C, 350MB/s throughput MAX HDMI Loop-out |
HDMI input | 4K/60,50,30Hz,1080P/60, 59.94, 50, 30, 29.97, 25, 24, 23.98Hz, 1080i 50/60Hz, 720P 50/60Hz, 480P, 576P, 1280x1024, 1280x960, 1024x768, 800x600, 640x480
|
HDMI output | 4K/60,50,30Hz,1080P/60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50/60, 480P, 576P 1280x1024, 1280x960, 1024x768, 800x600, 640x480
|
USB C 3.0 output | 1080P/720P |
HDMI audio input | 1 LPCM audio signal |
The support of OS | Windows 7,Windows8,Windows8.1,Windows10 or later, Linux OS, Mac OS |
Software compatibility | Adobe Flash Media Live Encoder (Windows, OS X) Real Producer Plus (Windows) VLC (Windows, OS X, Linux) QuickTime Broadcaster (OS X) QuickTime Player (OS X)and etc. OBS PotPlayer |
Upgrade | The firmware can be upgraded |

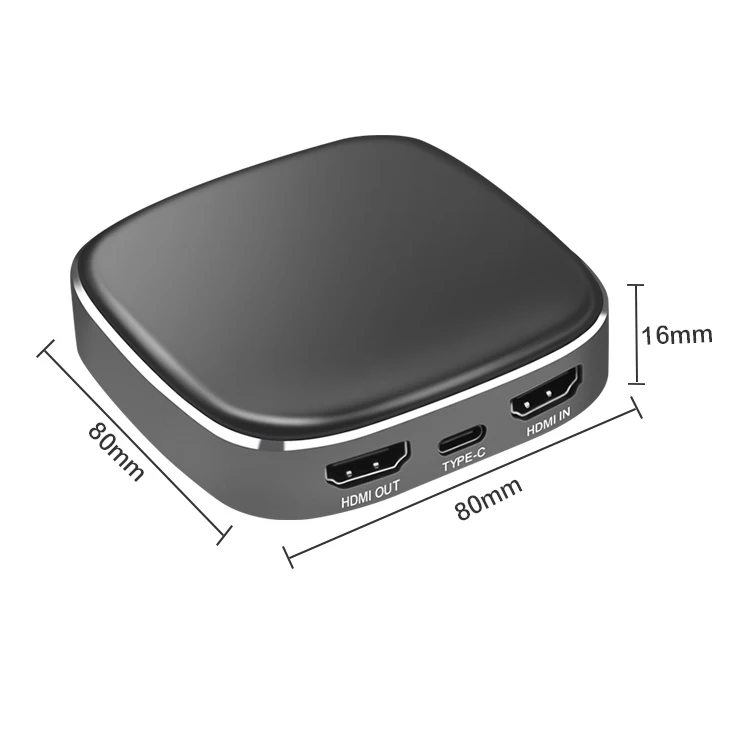

Size | 80X80X16mm |
Features
1.It can capture one single channel HD HDMI video signals
2.The capture resolution up to 1080P/60Hz, input resolution up to 4K/60Hz, the HDMI Loop-out resolution is the same as input resolution
3.Support Mic recording input
4.Support MJPE and YUY2
5.Support UAC&UVC,support 48 KHz PCM audio
6.It need to install a driver with some of the Windows7 system
7.It is compatible with Windows 7,Windows8,Windows8.1,Windows10 or later, Linux OS, Mac OS operating systems.
8.USB3.0, 300~350MB / s throughput max and it is compatible with USB 2.0 (40MB/s throughput max).
9.It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
10.It can automatically detect the input audio formats and swift it to 48KHz PCM audio.
11.Two capture can be used on one PC
12.The firmware can be updated.
13.With good picture quality, the RGB color range is 0-255, less delay.
14.Support for all third-party player software compatible with UVC and UAC protocols.
1. After-sales Service
1 year warranty for all kinds of products;
2. Payment
T/T, Paypal. Credit insurance on alibaba
3.Transportation
Transported by DHL,UPS,EMS, Fedex, Air freight, sea freight.
4.Can I get a sample for testing firstly?
Even if we are doing wholesale business, We could fully understand the further cooperation is based on time andquality. So one set of sample to test is totally welcomed. Also OEM/ODM is acceptable.
5. How long will I receive the product?
There are enough stock for most of products, regularly the delivery time is around 1~4 work days(except busy season)after payment received.
