Огнестойкий огнестойкий сигнальный кабель 2C x 1 5

The Fire Survival cables range features a variety of cables and wires designed to withstand extreme heat. The range of products includes Flame retardant cables, Low Smoke halogen-free (LSHF or name LSZF) cables and wire, and fire resistant cables. Flame retardant cables help prevent the spread of fire while fire resistant cable are able to continue supplying power to emergency circuits during fire. LSHF cables are slow to catch fire and they burn slowly with low amount of smoke and toxic halogen gases, making it easier for people to escape in the event of a fire.

Product Name: LPCB Fire Resistant Electrical Cable

Formation: 2 cores, 3 cores, 4 cores

Section: 1.0 MM sq, 1.5MM sq, 2.5 MM sq, 4.0 MM sq

Center Conductior: High Quality Bare Copper

Insulation: Silicone E12

Screen: Mica tape with Al Foil Shielded

Sheath: LSZH thermoplastic compound

Drain wire: Tinned copper

Rated Valtage: 300/500V

Our fire resistance cable has passed British BRE company's LPCB approval.

BS7629-1:2008. British Standard Specification for 300/500V fire resistant cable having low emissions of smoke and corrosive gases when affected by fire.

BS 6387:1994. Performance requirements for cables required to maintain circuit integrity under fire conditions.

C - Resistance to fire fire at 950ºC for 180 minutes

W - Resistance to fire and water at 650ºC for 30 minutes

Z - Resistance to fire and mechanical shock at 950ºC for 15 minutes

EN 50200:2006. Method of test for resistance to fire of unprotected small cables for use in emergency circuits. European Committee for Electrotechnical Standardization, Brussels, 2006

Certificate Number: 1383a/1383b

Product usage:

Fireproof cables are suitable for high-rise buildings, entertainment venues and many high-quality and highly secure construction projects. They are used in fire protection systems for fire elevators, fire pumps, fire alarms, somke exhaust systems, emergency lighting and fire danger zones, power supply line for safe facilities in high temperature applications and special requirements.

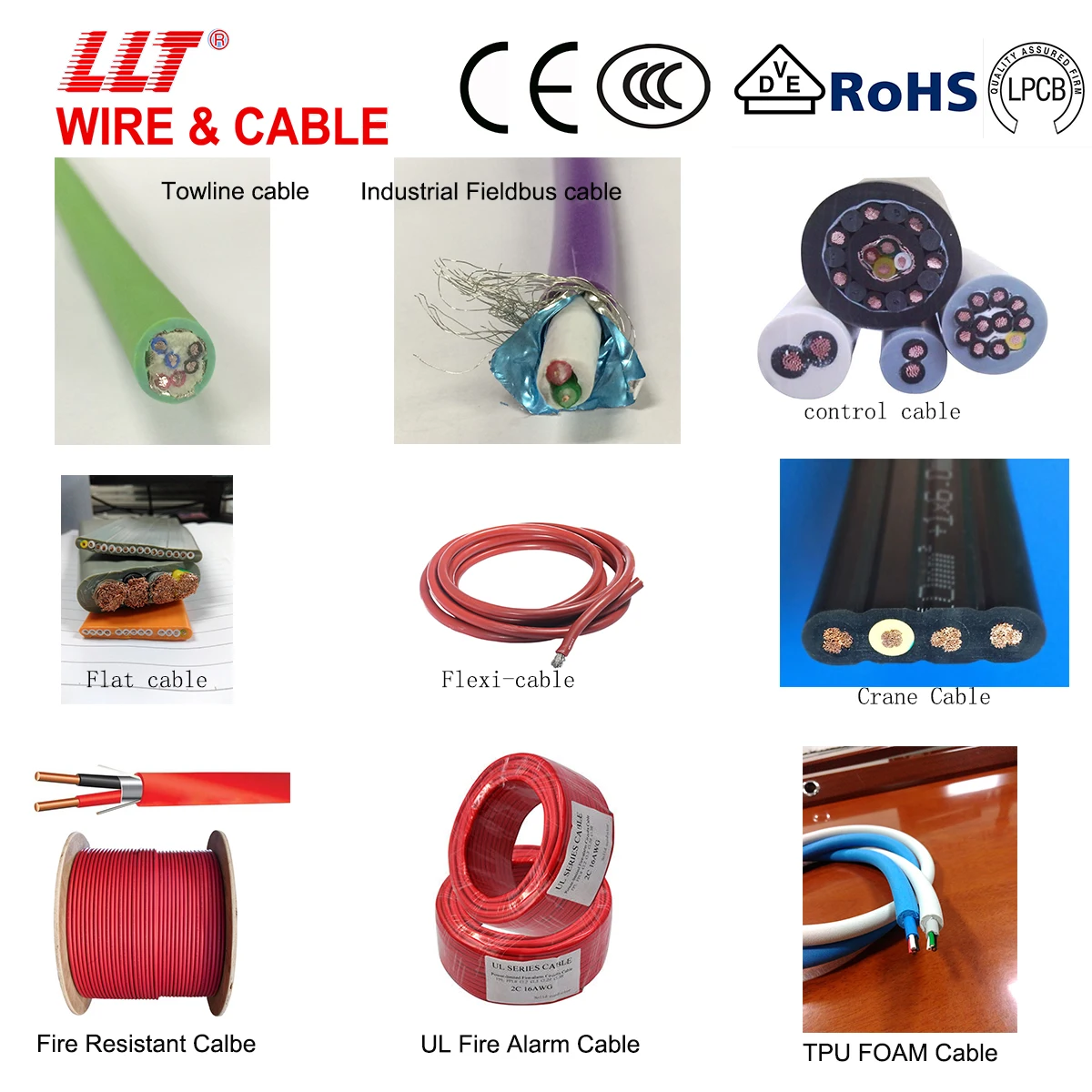

Our other UL electronic cable and electric cable: UL 1424, UL 13, UL 1005, UL 1185, UL 2725, UL 21388 etc.

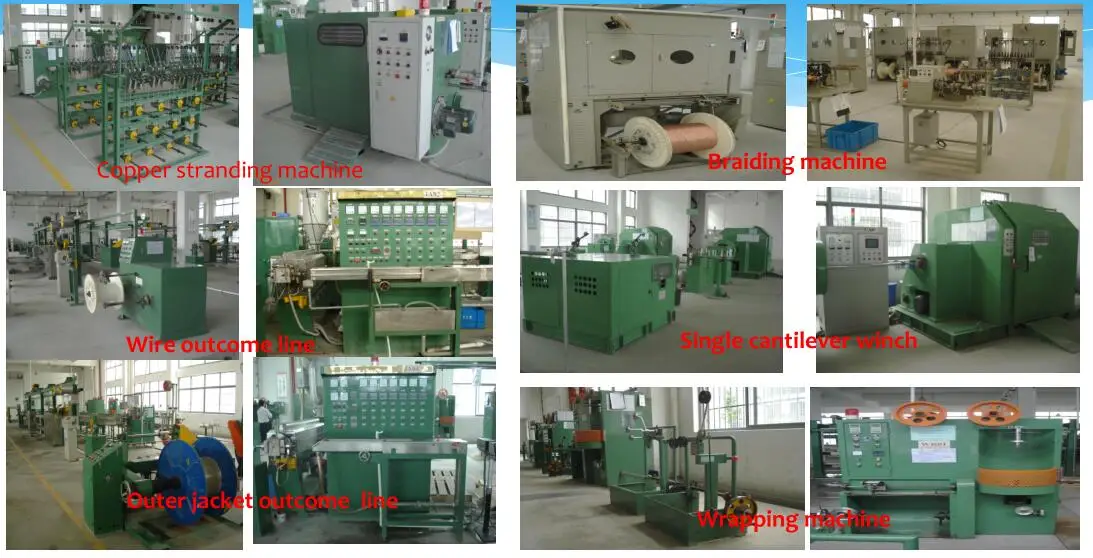

Shenzhen Lilutong Technology Industry Co.,LTD is a professional manufacturer for security and fire firghting cables which was established in 2001 in Shenzhen. LLT has been very professional in the security field after a period for launching, promoting, developing for security products, especially LPCB fire resistant cable, UL fire alarm cable, elevator cable and flexible calbe.

 1. Does the factory have certification?

Yes, LLT's skilled production team follows the standardized manufacturing process which is ISO9001 Quality system strictly for making sure every procedure is out of mistakes.

2. Does your company's products have certification?

Yes, LLT products are approved by British Standard LPCB, CCC, CE, FCC and SGS, VDE, UL and commpliant with the RoHS standard.

3. When can I get the price and effectiveness?

We usually quote with in 6 hours. If you desperately need the price, please contact us or send us an EMAIL. We can handle the priority of your inquiry. Usually within a day. It's valid for 10 days.

4. I didn't find the product specifications I needed on this page.

Dear friends, you can contact us by email. In addition, we provide customized services. So please contact us!
