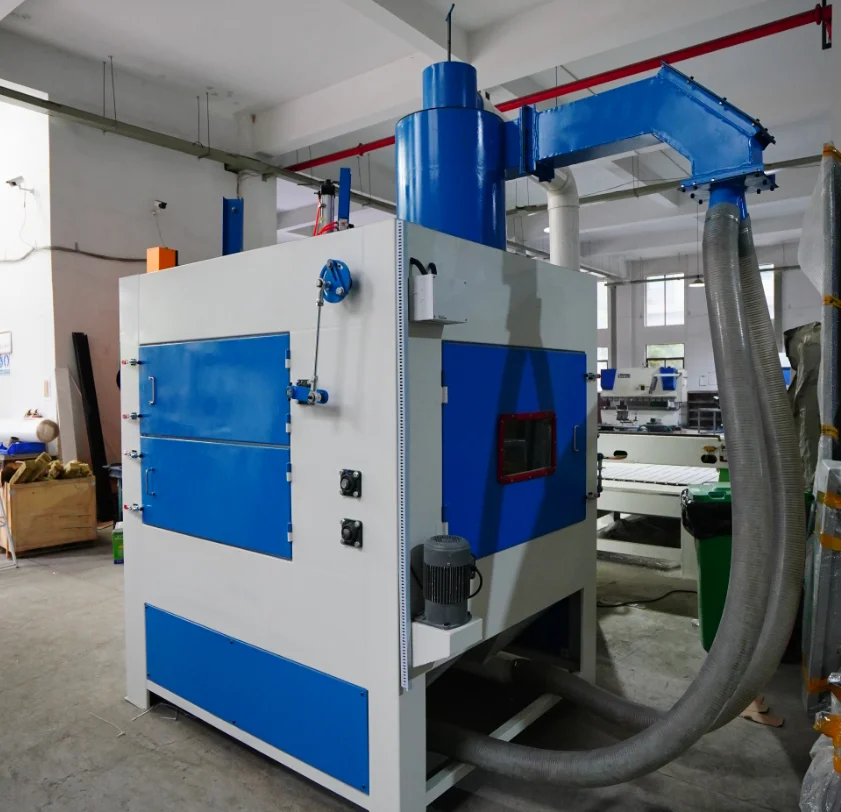

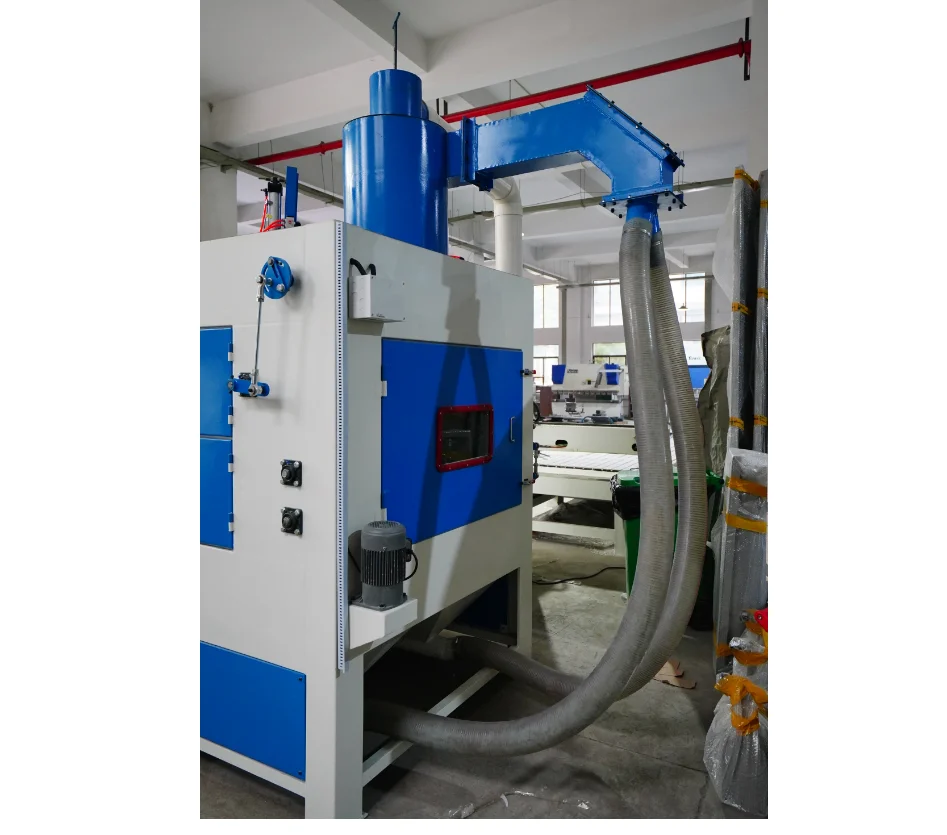

Glass bottles or pans automatic batch sandblasting machine
Glass bottles or pans automatic batch sandblasting machine

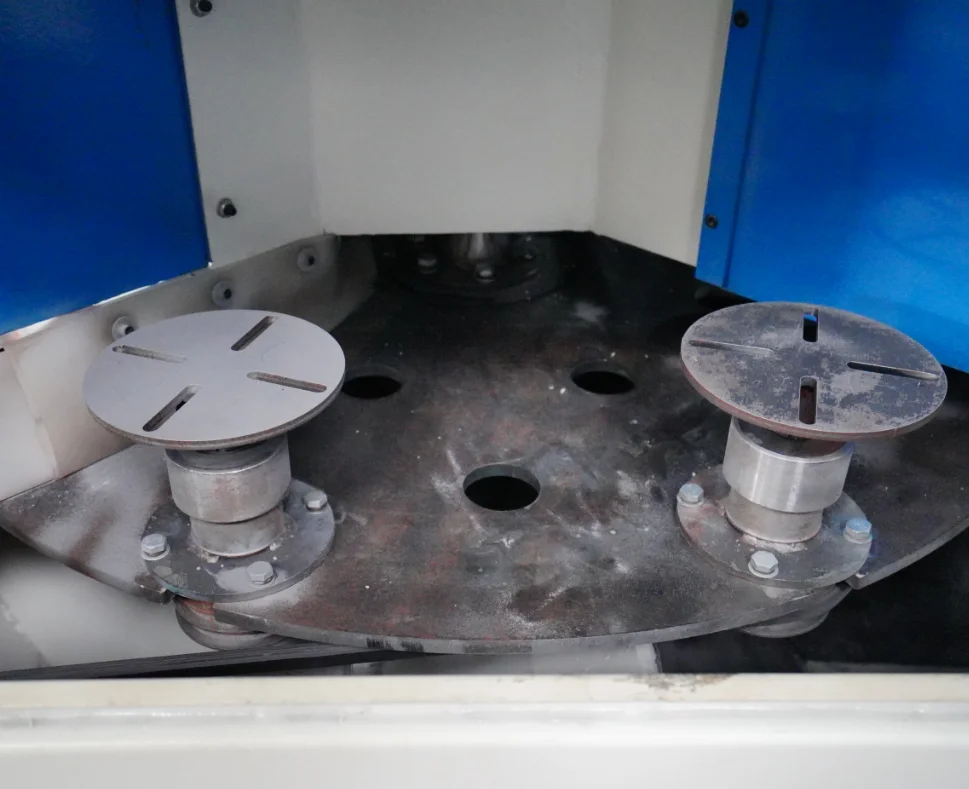

The table is driven by a gear motor with frequency converter for table speeds Because of the modular system, table sizes can be fitted with six, eight, ten or twelve satellites. PLC controller could setting important parameters Blast gun could swing or fix for blasting,swing speed adjustable According to the size of the work piece, equipped special clamp, fast assemble clamp solid, high efficiency, large output
Model No | CL-1719-12A | CL-1512-8A |
Number of stations | 12pcs | 8pcs |
Fan motor of Dust Collector | 20kgs | 20kgs |
Blast Gun Number | 12pcs | 8pcs |
Station diameter | 150 /180 mm | 150 /180 mm |
Turntable diameter | 1400×20mm | 1000×15mm |
Max. part size (diam x H) | 350*450mm | 250*350mm |
Power supply | As required | As required |
Fan motor of Dust Collector | 5.5kw | 5.5kw |
Total Power | 7kw | 7kw |
Dust collector size(L*W*H)mm | 1400*1400*1700 | 1200*1200*1700 |
Overall diameter (L*W*H)mm | 1700*1900*2350 | 1200*1500*2000 |
Total weight | 4150kgs | 3850kgs |
CE certificate for Glass bottles or pans automatic batch sandblasting machine
if you need others, please let me know .
