48v 500w Truckrun высокое качество Макс Mid Drive Systemcrank-drives Motor
- Категории: Мотор для электровелосипеда >>>
- Поставщик: Wuxi,Truckrun,Motor,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Advantages
1 Intelligent: The motor has high-sensitivity torque sensor and speed sensor, which can achieve precise control of the whole vehicle.
The parameter setting of the upper computer makes the energy efficiency reach the limit, and achieves the effect that the vehicles run according to man's wishes and free to control.
2 Powerful: The motor can provide sufficient power performance with a maximum torque of 110 N.m or more.
3 Modularization: motor assembly, vector controller, torque sensor, integrated Connector.

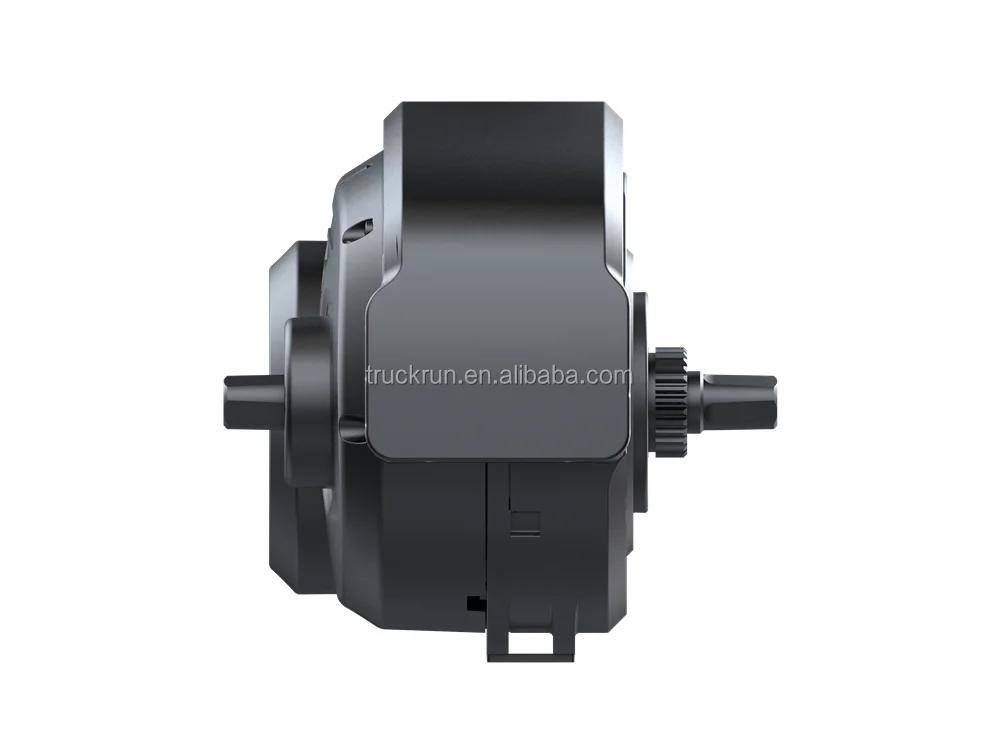

SPECIFICATIONS FOR M01 MID DRIVE MOTOR | ||||||
MOTOR ASSEMBLY | L*W*H | mm | 205.5*135.5*103 | |||
Color | Matte Black | |||||
Weight | KG | 3.6 | ||||
Main performance parameters | Rated Voltage | DCV | 36 | |||
Max Torque | N.M | >=140 | ||||
Rated Power | W | 250/350/500 | ||||
Noise Grade | dB | 55 | ||||
Operating Temperature | ℃ | -22~55 | ||||
Main Features
1. Brushless, long life (bearing life), maintenance free;
2. The motor has no mechanical commutator to prevent dust from entering the motor and has high reliability;
3. Large power and simple structure;
4. Excellent starting performance, no hysteresis dampingconsumption kinetic energy, strong torque climbing ability;
5. High efficiency, low power consumption, and relatively long mileage;
6. High performance price ratio
7. Excellent waterproof performance.
Detailed Images

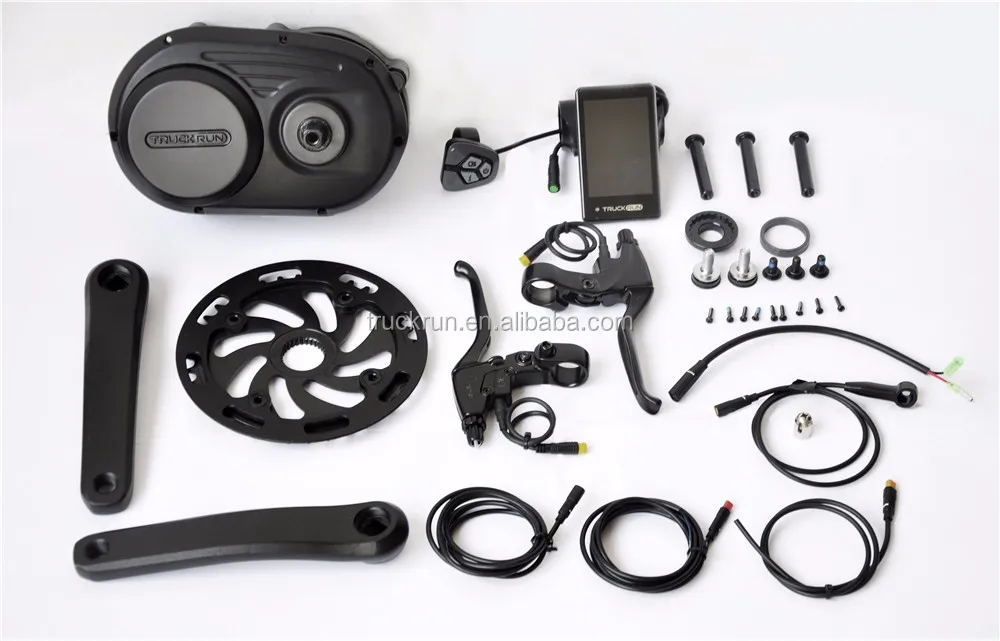

Truckrun M1 KITS
In order to change the traditional mode of assisted cycling.with more than 10 years of product R&D experience,Trunkrun has independently developed the W+ power solutions.It is led by motors,integrates lithium batteries and HMI kits,and advocates the concept of maximizing human products.It created and extraordinary driving experience for two-wheeled rides.

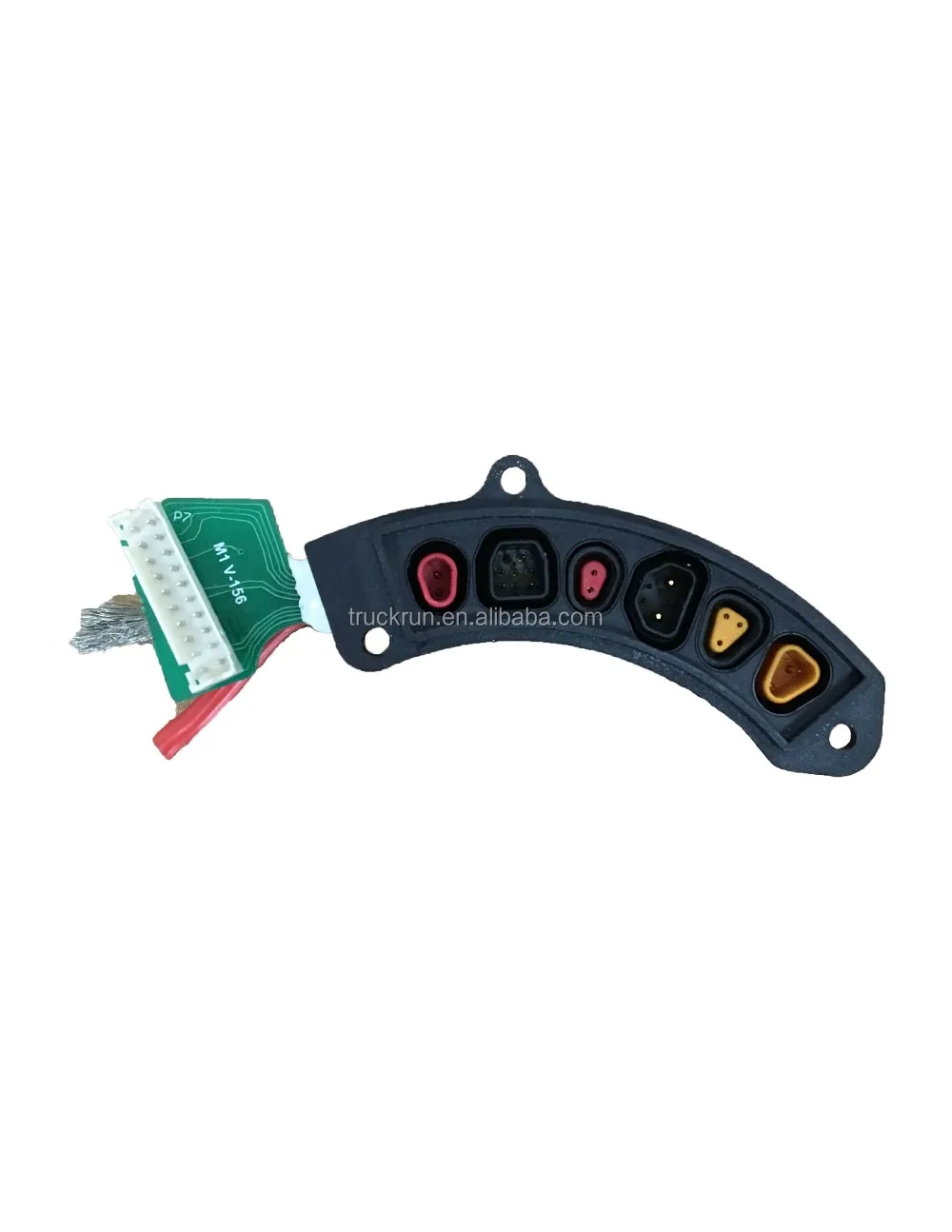

M1 Integral connector:
1 --- High workmanship
2--- Artistic
3---no possibile for wrong connections
4----Waterproof
Speed sensor
Signals(Pulses/Cycle):1Pulse
Input Voltage:4.2-5.5V
IP Level:IP65
Chain Wheel
Teeth number 38T
Chain Line:48.5mm
Material:Steel
HMI Kit
Type:TK.CC01
Rated Voltage:36v/48v
Support Modes:0-9(optional)
Crank
Weight:0.48kg
Material:6061
Pylons
Weight:0.58kg
Material:6061
HMI Kit
Type:TK.CB01
Rated Voltage:36v/48v
Support Modes:0-9(optional)
Q1. What is your terms of packing?
A: Generally, we pack our goods in poly bags, foams and then cartons.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
A: Generally, it will take 3 to 60 days after receiving your advance payment.
A: Generally, we pack our goods in poly bags, foams and then cartons.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
A: Generally, it will take 3 to 60 days after receiving your advance payment.
For the standard Motor kit with normal cable length, displays and functions, we will ship it within 3 working days after receiving your payment, for the customized, please consult us
for details with your ordering quantity.
Q4. What is your sample policy?
A: we usually ship the samples by courier, like TNT,UPS,DHL or FEDEX, our buyers need to pay for the express mail fee too.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
3. Any tech or non-tech problems & inquiries, please feel free to let us know, we'll always stand behind what we have said and promised.
for details with your ordering quantity.
Q4. What is your sample policy?
A: we usually ship the samples by courier, like TNT,UPS,DHL or FEDEX, our buyers need to pay for the express mail fee too.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
3. Any tech or non-tech problems & inquiries, please feel free to let us know, we'll always stand behind what we have said and promised.
