Корона и шестерня точного размера для ISUZU TFR-зубцы шлифовки шестерни равны 16
- Категории: Auto Differential >>>
- Поставщик: Shenyang,Xin,Jin,Auto,Parts,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

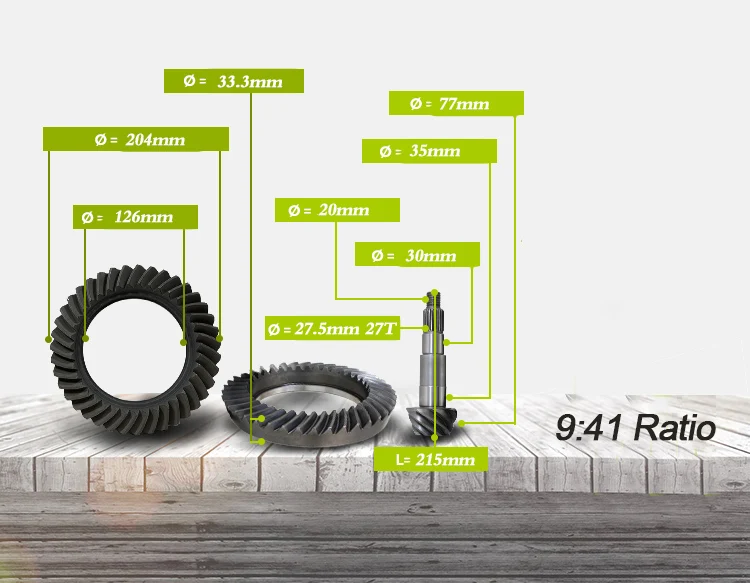

Accurate Size crown wheel and pinion for ISUZU TFR - The spline teeth of the pinion is 16T
| Car make | Hiace Hilux | PS100(Fuso Canter) | PS120(Fuso Canter) | TFR | NPR |
| Speed Ratio | 8*39 9*41 10*41 10*43 11*43 12*43 | 6* 37 6* 40 7*39 7*40 | 6* 37 6* 40 7*39 7*40 | 9*41 10*41 | 6*37 6*39 7*39 7* 41 7*43 8*39 8*43 |
| Pinion length | 215mm | 244mm | 208.5mm | 206mm | 225mm |
| Ring gear inner diameter | 126m | 175mm | 175mm | 200mm | |
| Ring gear outer diameter | 204m | 291mm | 305mm | 193mm | 292mm |
| Material(gears) | 20CrMTiH3 | 20CrMTiH3 | 20CrMTiH3 | 20CrMTiH3 | 20CrMTiH3 |
| Spline teeth of the pinion | 27T/29T | 14T | 18T | 16T | 18T |
Why Choose US
Company Information
Shenyang Xin Jin Auto Manufacturing Co., Ltd located in the traditional industrial city-Shenyang, obtaining a competitive advantage in location and technology cluster. With 20 years professional manufacturing experience, reliable credit and high quality products.
Packaging & Shipping
