CRI80 2500-6500K SMD4014120 градус шаговый

CRI80 2500-6500K SMD4014120 градус шаговый

Категории: >>>
Поставщик: SHENZHEN,KENA,INDUSTRY,CO.,LTD.

Цена:16,25 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

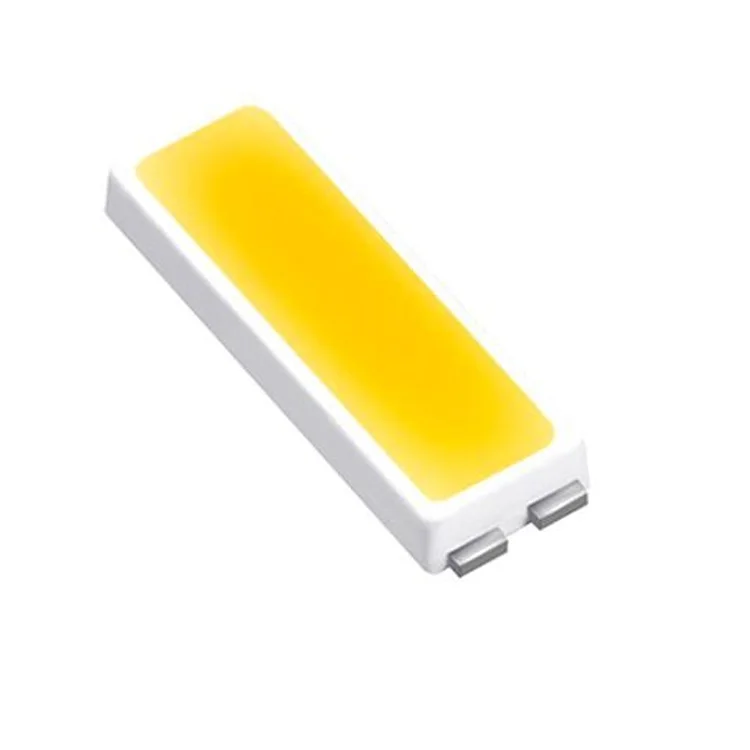

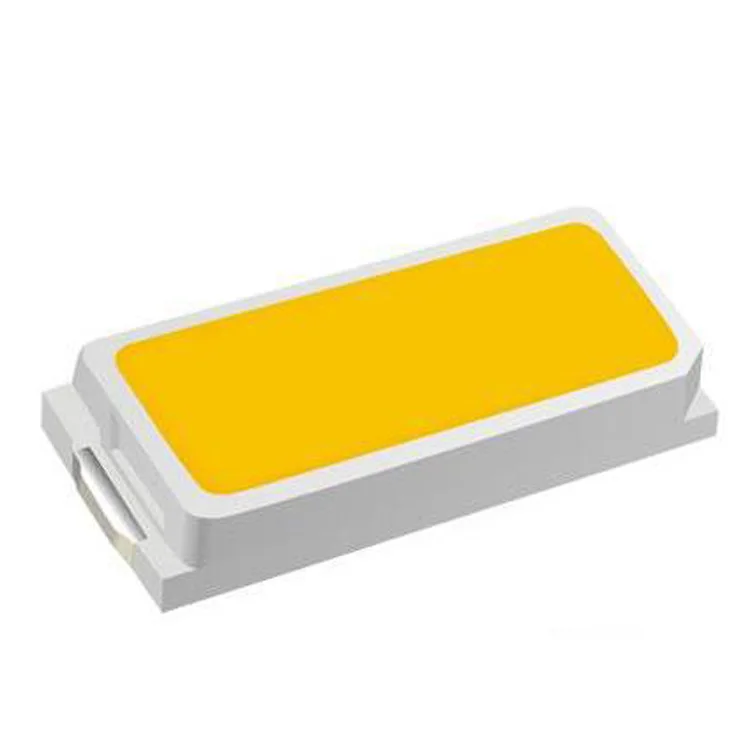

CRI80 2500-6500K SMD4014120 Degree InGaN SMD

Photoelectricity Parameter

Ambient temperature:25℃, humidity:RH60%

Item	Symbol	Test condition	Min	Type	Max	Unit
Forward voltage	VF	IF=60mA	2.8	--	3.4	V
Reverse current	IR	VR=5V	--	--	10	μA
Light	IV	IF=60mA	20	--	30	LM
Color Temperature	λd	IF=60mA	--	3000±150	--	K
			--	4000±200	--
			--	6000±300	--
Color Rendering Index	CRI	If=60mA	--	80	--	/
Viewing Angle	2θ1/2	IF=60mA	--	120	--	deg
ESD Withstand limit	ESD(HBM)	--	--	--	2000	V

Remark:The tolerance of intensity:±15%, The tolerance of wave length:±1nm,The tolerance of forwards voltage: ±0.05V. Only reference for above data when testing.

Absolute Maximum Rating

Ambient temperature: 25℃, humidity:RH60%

Item	Symbol	Value	Unit	Remark
Forward Current	IF	160	mA	---
Peck forward current	IFM	150	mA	---
Power Dissipation	Pm	200	mW	---
Operation temperature	Tamb	-40 - +85	℃	---
Storage temperature	Tstg	-40 - +100	℃	---
Thermal Resistance (junction)/soldering point	Rth JS	30	℃/W	---
SolderingTemperature	Tsol	--	℃	240℃for10sec 350℃for3sec

Ultra-high luminous efficiency, ultra-low power consumption, ultra-long service life, plus the flexibility of design, because of its micro size, widely used in the lighting industry, deeply loved by everyone.
