M1022NC 3 оси автоматический плоскошлифовальный станок

Описание и отзывы

Характеристики

M1022NC 3 Axis Automatic Surface Grinder

Grinding Machine





Features of Grinder Machine
1) Guide way is coated with turcite and precision hand scraped,move smoothly and keep the accuracy long life.
2) Well-designed control panel with two-way rotate structure,make the operator getting suitable operating position very easy,improve work efficiency.
3) The grinder is standard equipped with auto down feed AC servo motor,and controlled by PLC and HMI,to reakize auto grinding,then to realize auto grinding.
4) For the control panel is equiped with HMI,by whcih  the operator can easy operating on the machine to realize auto working.

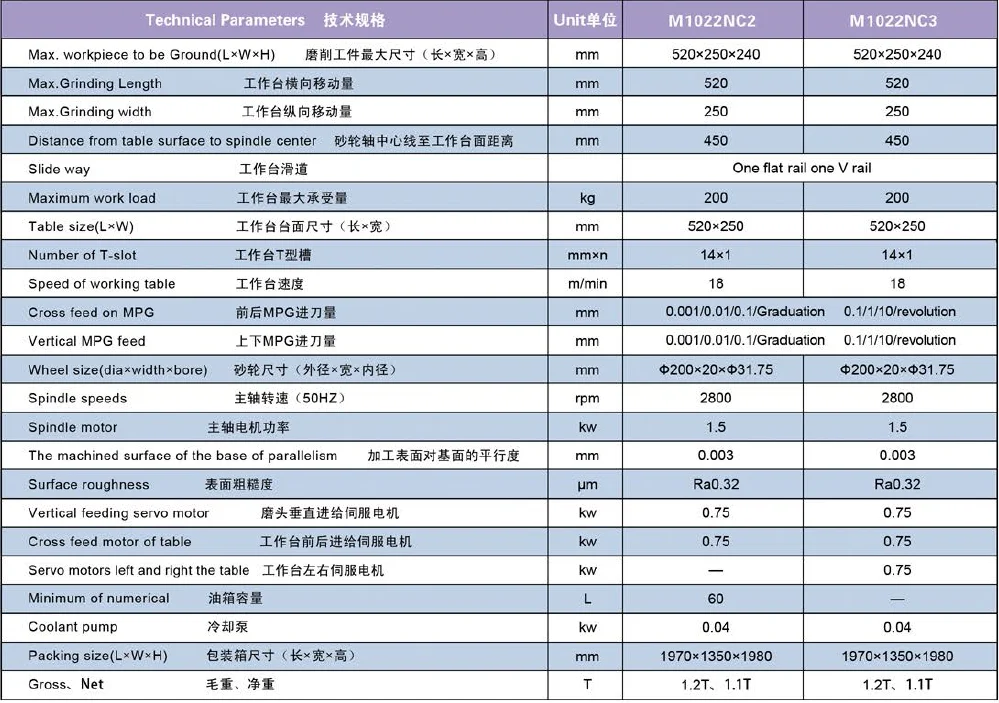

Specifications of Grinder Machine

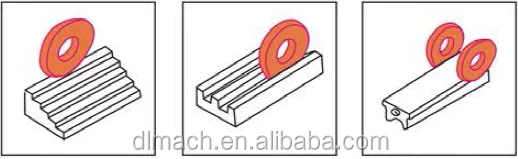

WORK PIECE SHAPE  SELECTION:



























M1022NC2		M1022NC2
FULL AUTO		FULL AUTO
VERTICAL	AC SERVO MOTOR	VERTICAL	AC SERVO MOTOR
CROSS	AC SERVO MOTOR	CROSS	AC SERVO MOTOR
LONGITUDINAL	HYDRAULIC	LONGITUDINAL	AC SERVO MOTOR
CENTROLLER	PLC GS-PLC TOUGH	CENTROLLER	PLC GS-PLC TOUGH





STANDARD ACCESSORIES:



1.Coolant tank

2.Standard electro magnetic chuck

3.Balancing arbor

4.Wheel flange

5.Wheel extractor

6.Leveling wedge and bolt

7.Tool box and tools

8.Standard grinding wheel

9.Working lamp

10.Wheel dresser stand(not include diamond pen)



OPTIONAL ACCESSORIES:

1.Parallel wheel dresser



2.Digital readout

3.Coolant tank with magnetic separatorand paper filter

4.Coolant tank with magnetic separator



5.Wheel balance stand





6.Water absorption and dust absorption

7.Build in electro magnetic chuck controller

8.Inverter

9.Tool maker vise
