Хит продаж 2 порта KVM конвертер видео распределительной коробки с Mini DP порт HDMI Поддержка USB2.0 4k 60
- Категории: KVM Switches >>>
- Поставщик: Shenzhen,Tesla,Elec,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Product Description
Hot Selling 2 port KVM Video Switch with DP port support USB2.0 4k 60hz

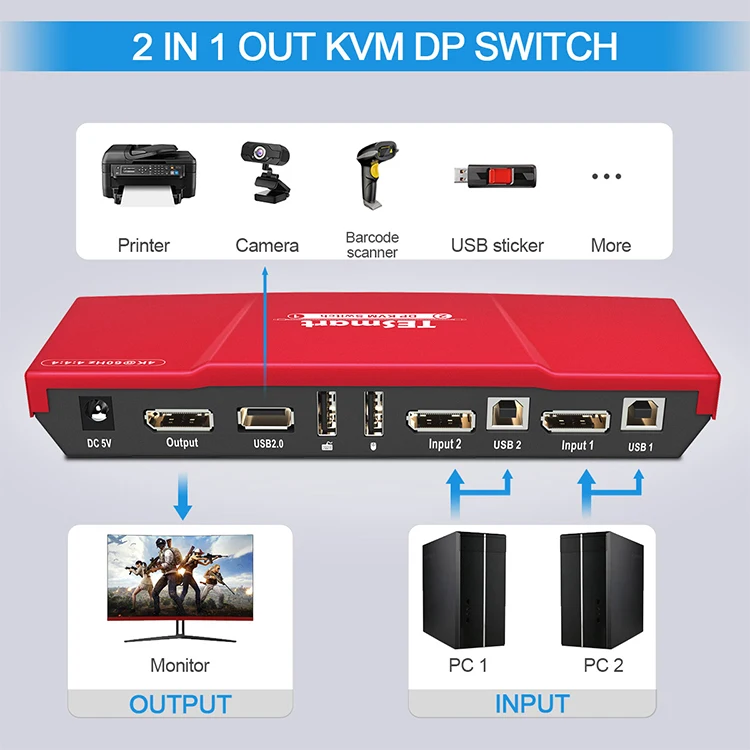

It makes you available to share one set of keyboard, mouse and monitor with two PCs.
The 2-Port DP KVM Switch supports resolution up to 4K@60Hz.
Support USB 2.0 hub and USB 2.0 keyboard /mouse.
By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel buttons, IR signals, keyboard hot keys, etc. Support keyboard and
mouse pass through mode to improve KM compatibility
Features
* Using only 1 set of keyboard, mouse and monitor to control 2 PCs.
* Support resolution up to 3840*2160@60Hz.
* Support auto switching to monitor computers in a specified time interval.
* Support front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs.
* With extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to computer.
* Support resolution up to 3840*2160@60Hz.
* Support auto switching to monitor computers in a specified time interval.
* Support front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs.
* With extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to computer.
* With EDID emulators in each input port, keep PCs always having correct display information.
* Support mouse and keyboard pass through mode to improve KM compatibility.
* Support mouse and keyboard pass through mode to improve KM compatibility.
* Available to use keyboard and mouse without any delay after switching inputs.
* Support hot plug, connect or disconnect devices to the KVM switch at any time without turning off devices.
* Support hot plug, connect or disconnect devices to the KVM switch at any time without turning off devices.

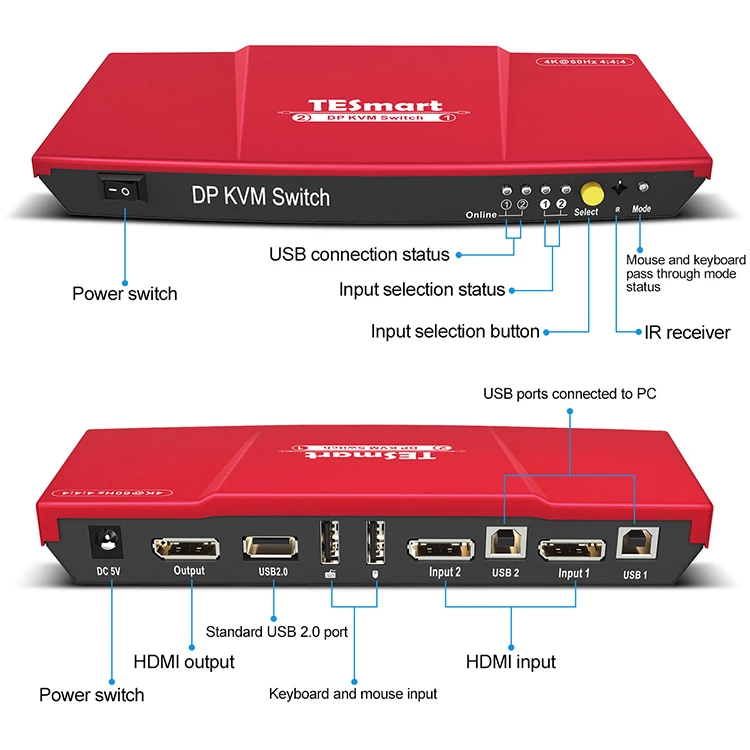

Panel Description
Specification
PKS0201A10 | 2-Port DP KVM Switch | |||
Functionality: | ||||
Auto Scan | Yes | |||
Port selection | Front panel buttons | Yes | ||
Keyboard hotkeys | Yes | |||
IR remote control | Yes | |||
Mouse gesture | Yes | |||
Console commands | No | |||
Technical: | ||||
Resolution | Up to 3840x2160@60Hz | |||
Auto to get EDID | Yes | |||
Data rate | 18 Gbps | |||
Auto scan interval | 1~250 Seconds | |||
Beep Sound | On/Off | |||
OSD | No | |||
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system | |||
Console ports | Keyboard emulation | 1 * USB Type A | ||
Mouse emulation | 1 * USB Type A | |||
USB 2.0 Hub ports | 1 * USB Type A | |||
Video /Audio | 1 * DisplayPort Type A | |||
RS232 | NA | |||
LAN | NA | |||
System ports | USB Data | 2 * USB Type B | ||
Video / Audio | 2 * DisplayPort Type A | |||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||
Details Images

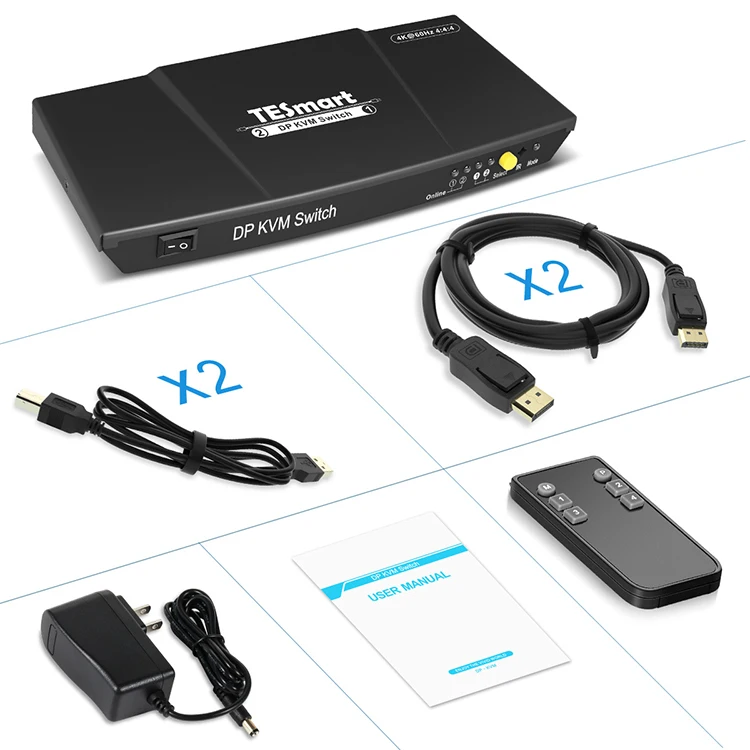

Packing list
1 * 2-Port DP KVM Switch
1 * DC 5V Power Adapter
1 * IR Remote Control
1 * Quick-Start Guide
1 * DC 5V Power Adapter
1 * IR Remote Control
1 * Quick-Start Guide
Company Profile
Established in 2013, Tesla Elec Technology Company limited is a professional manufacturer and exporter that is concerned with the design, development and production of audio and video matrix, splitter, switcher, KVM, extender and converter.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have a R&D team with over ten years experience providing ODM and OEM services in various video related products, just tell us your requirements, we can do more than you can imagine. We are looking forward to forming successful business relationships with new clients around the world in the near future.
FAQ
Why choose TESmart
1.We have our own warehouse, which can ensure us of shipping out orders within 24 hours after payment (weekends and holidays excluded).
2.We have a R&D team with over ten years experience, providing ODM and OEM services in various video related products.
How to order
1.Pls send email or chat with us via Platform, Whatspp, Skype, and let us know your requirements on order details.
2.We will reply you with Proforma invoice based on your order request.
3.Kindly check the PI, and if everything is ok, the goods will be delivered to you asap after we got your payment.
4.Sample order supported.
Shipment & payment
1.T/T, PayPal, Western Union available.
2.DHL, UPS, EMS, FedEx, Air freight supported.
