Product Description
Beer Diatomite Filter Machine Wine and Oil Diatomaceous Earth Filter Price
Diatomite filter: a filter device that USES diatomite as the main medium and USES the fineness and porosity of diatomite particles to remove suspended particles, colloids and other impurities in swimming pool water.
Diatomite filter is the introduction of foreign advanced technology, use 1 cr18ni9ti stainless steel with high quality, USES the diatomite filter aid, contributing to the beverage industry in our country from the old MianBing filtering technology to the world advanced level, a major step forward, it has beautiful appearance, easy operation, filtration of low cost, high efficiency, filter clarity can amount to 99.8%, well can filter even escherichia coli.
Diatomite filter is the introduction of foreign advanced technology, use 1 cr18ni9ti stainless steel with high quality, USES the diatomite filter aid, contributing to the beverage industry in our country from the old MianBing filtering technology to the world advanced level, a major step forward, it has beautiful appearance, easy operation, filtration of low cost, high efficiency, filter clarity can amount to 99.8%, well can filter even escherichia coli.

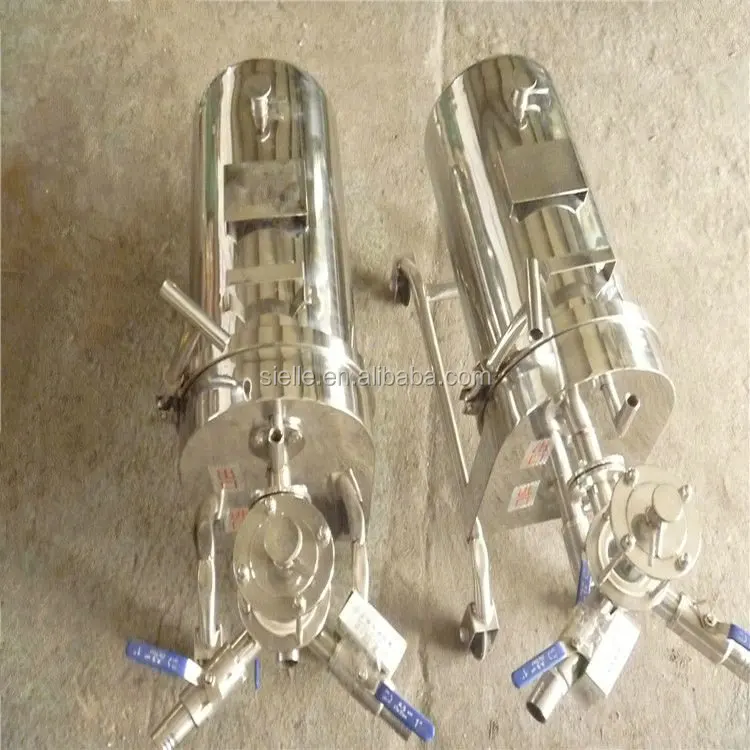

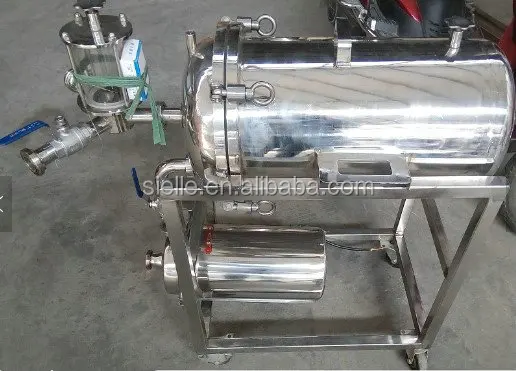

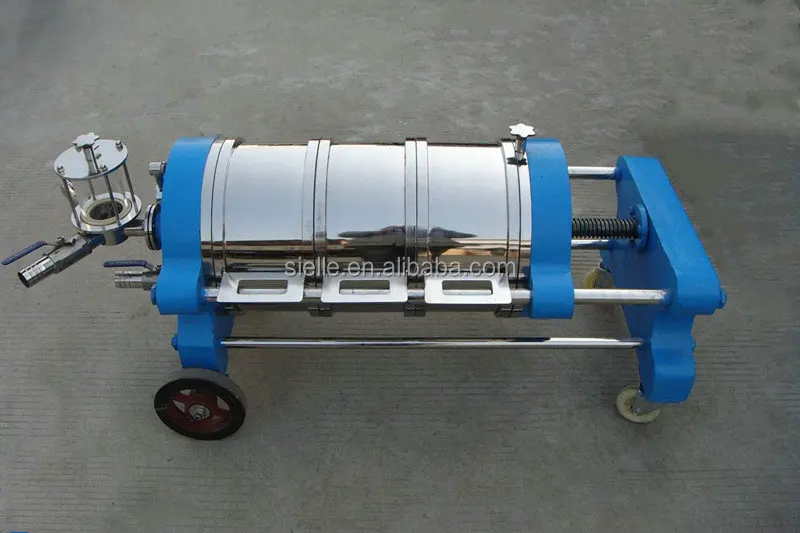

Details Images

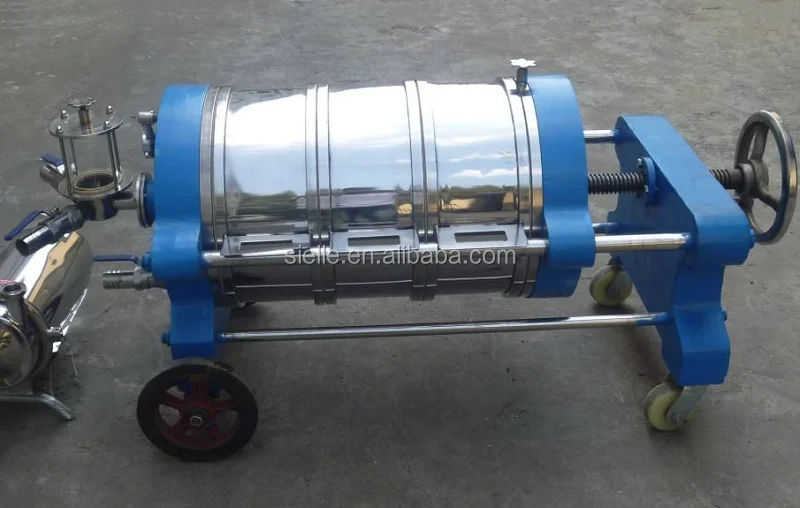

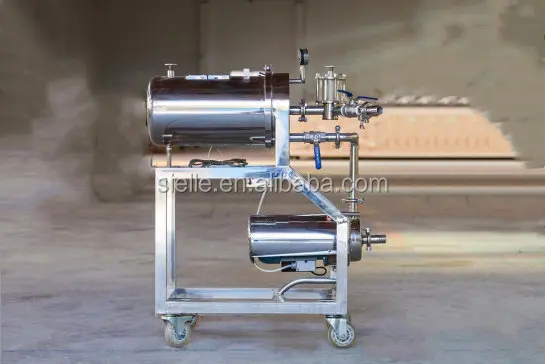

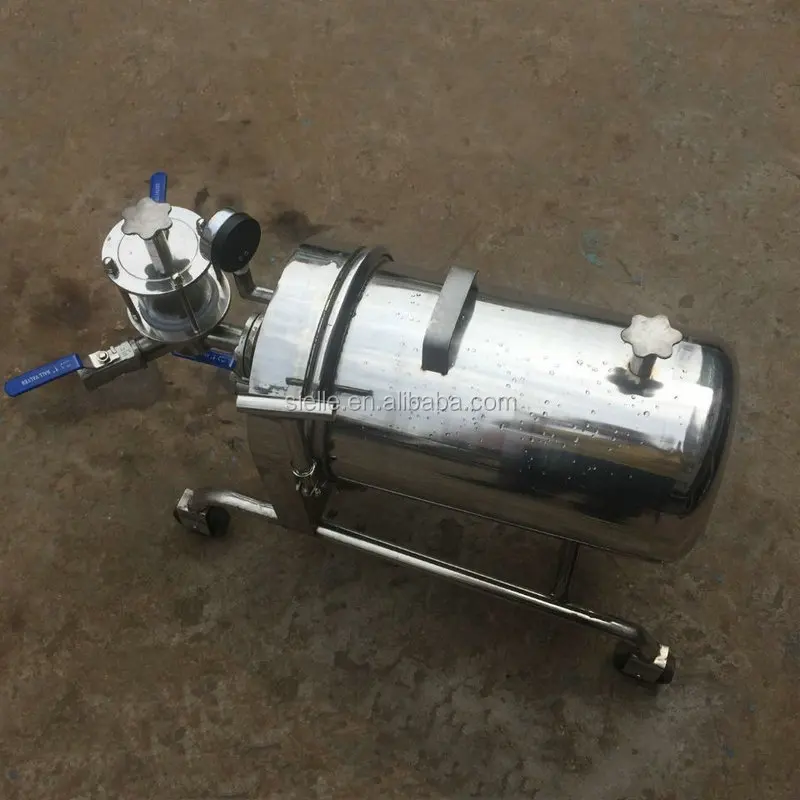

Equipment structure

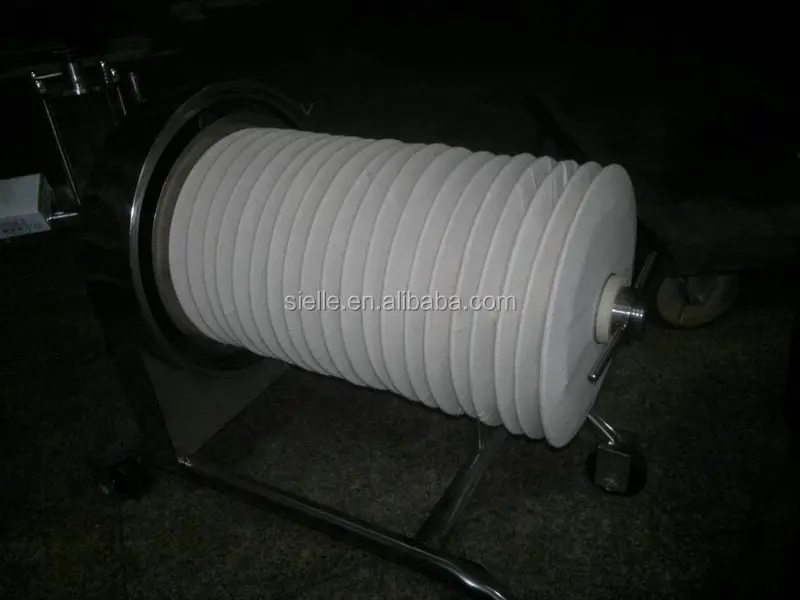

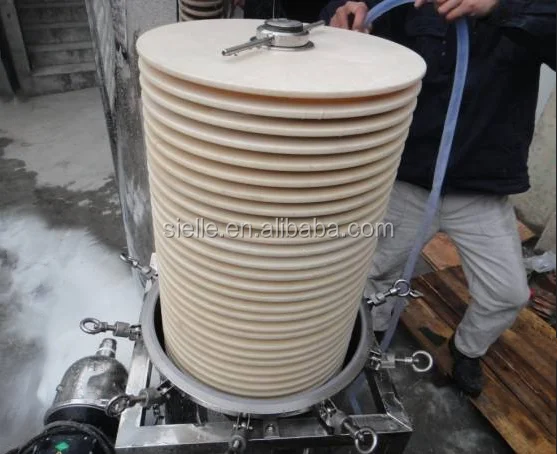

Filtration system of the machine by machine cavity, shell, hollow shaft, filter element, spacer ring, sealing ring, clamp, flat
plate, glass sight glass Windows, and other components of the pressure gauge, whole machine cavity, two more section, connection place USES non-toxic rubber sealing ring, all contact with the liquid part 1 cr18ni9ti stainless steel, high quality work with handwheel or with the connection of clamp force shell sealing, cavity and sight glass window equipped with exhaust valve, boot after the gas is removed from the vent valve.

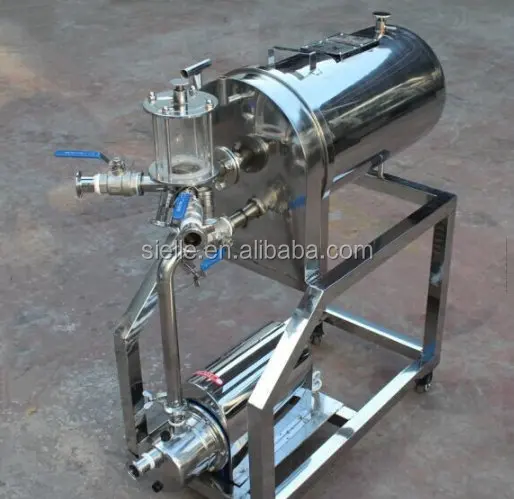

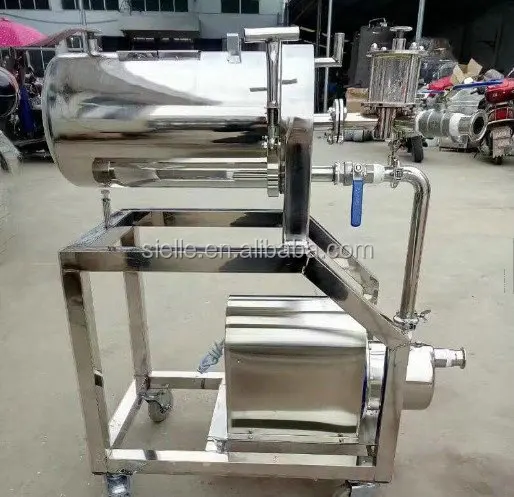

A ball valve is installed at the entrance of the machine, and the high-pressure liquid pumped by the pump enters the machine chamber from the entrance. There is a slow plate in the machine chamber to protect the filter coating on the filter plate. Two balls are installed at the exit Valve, one for circulating coating filter aid, one for normal production after precoating.Pressure gauge is installed on the machine cavity, the reading value of which directly shows the pressure inside the cavity. The machine body is supported by four wheels, which can be rotated at any Angle, and can be pushed to any appropriate position for use as required.
Filtration system of the machine by machine cavity, shell, hollow shaft, filter element, spacer ring, sealing ring, clamp, flat
plate, glass sight glass Windows, and other components of the pressure gauge, whole machine cavity, two more section, connection place USES non-toxic rubber sealing ring, all contact with the liquid part 1 cr18ni9ti stainless steel, high quality work with handwheel or with the connection of clamp force shell sealing, cavity and sight glass window equipped with exhaust valve, boot after the gas is removed from the vent valve.
A ball valve is installed at the entrance of the machine, and the high-pressure liquid pumped by the pump enters the machine chamber from the entrance. There is a slow plate in the machine chamber to protect the filter coating on the filter plate. Two balls are installed at the exit Valve, one for circulating coating filter aid, one for normal production after precoating.Pressure gauge is installed on the machine cavity, the reading value of which directly shows the pressure inside the cavity. The machine body is supported by four wheels, which can be rotated at any Angle, and can be pushed to any appropriate position for use as required.
Product equipment use Diatomite filter is suitable for the clarification and filtration of liquor, fruit wine, wine, health wine, beverage, syrup, soy sauce, vinegar, medicine, biology, chemical and other liquid products.Long filtration cycle, high efficiency, stable turbidity, good sealing, compact structure, easy to operate, movable, easy to maintain.Compared with similar products, it saves 30% electricity, 60% water and 70% time.
Beverage industry: fruit and vegetable juice, tea drinks, beer, yellow rice wine, fruit wine, white wine and so on.
Sugar industry: sucrose, high fructose corn syrup, high fructose corn syrup, glucose syrup, beet sugar, honey, etc.
Seasoning: vinegar, soy sauce, MSG, cooking wine, etc.
● pharmaceutical industry: antibiotics, vitamins, synthetic plasma, traditional Chinese medicine extract, etc.
Chemical products: resin, inorganic acid, organic acid, alcohol, benzene, aldehyde, ether, etc.
Other: gelatin, bone glue, seaweed glue, vegetable oil, starch, etc.
Beverage industry: fruit and vegetable juice, tea drinks, beer, yellow rice wine, fruit wine, white wine and so on.
Sugar industry: sucrose, high fructose corn syrup, high fructose corn syrup, glucose syrup, beet sugar, honey, etc.
Seasoning: vinegar, soy sauce, MSG, cooking wine, etc.
● pharmaceutical industry: antibiotics, vitamins, synthetic plasma, traditional Chinese medicine extract, etc.
Chemical products: resin, inorganic acid, organic acid, alcohol, benzene, aldehyde, ether, etc.
Other: gelatin, bone glue, seaweed glue, vegetable oil, starch, etc.
Product Paramenters
Type | Dimensions(mm) | Filter area(㎡) | Filter disc(PCS) | Working pressure(MPa) | Pump type |
WK500-A | 2450*750*850 | 15.9 | 38 | <=0.3 | YL20-25 |
WK500-B | 1950*750*850 | 8.9 | 20 | <=0.3 | YL20-25 |
WK400-A | 2350*680*800 | 9.8 | 38 | <=0.3 | YL10-25 |
WK400-1 | 1840*680*800 | 5.1 | 20 | <=0.3 | YL10-25 |
WK330-2 | 1700*600*750 | 3.4 | 20 | <=0.3 | YL5-25 |
WK330-3 | 1600*600*750 | 2.5 | 15 | <=0.3 | YL5-25 |
WK250 | 1100*350*450 | 2 | 20 | <=0.2 | YL3-20 |
WK220 | 900*300*400 | 1 | 15 | <=0.2 | YL3-20 |

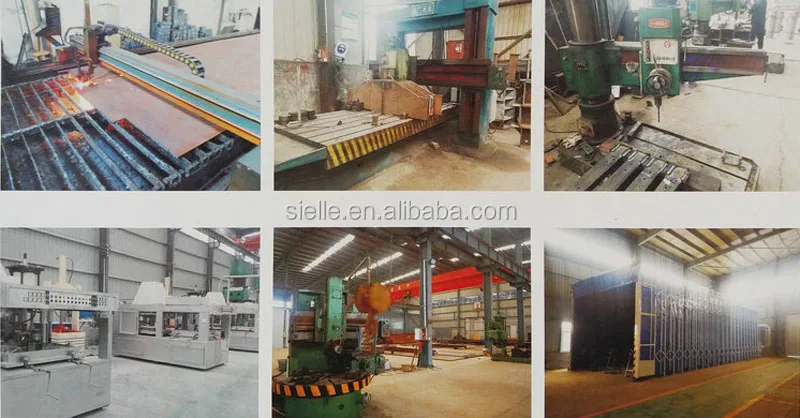

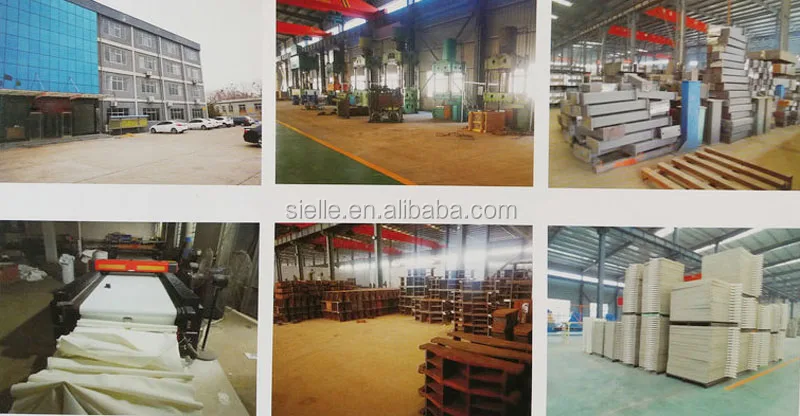

About us:Beer Diatomite Filter Machine Wine and Oil Diatomaceous Earth Filter Price
Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile,Bolivia, Indonesia, Malaysia, Israel, Mexico, Australia, Kenya, France,Italy, England, Egypt, Turkey, Romania, Sweden, Finland,etc. about more than 70 countries and area. We have won good reputation depends on our best qualified products and after-sales.
Customer case:Beer Diatomite Filter Machine Wine and Oil Diatomaceous Earth Filter Price

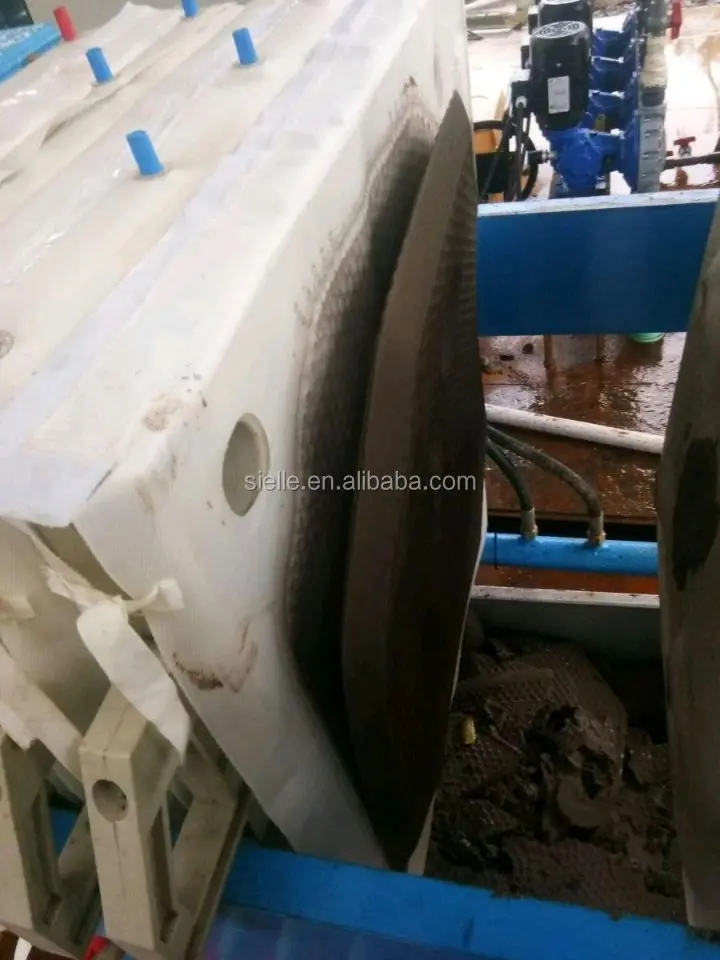

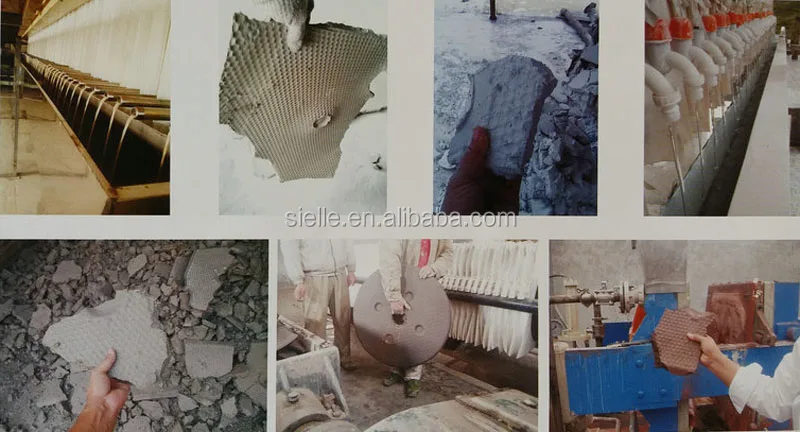

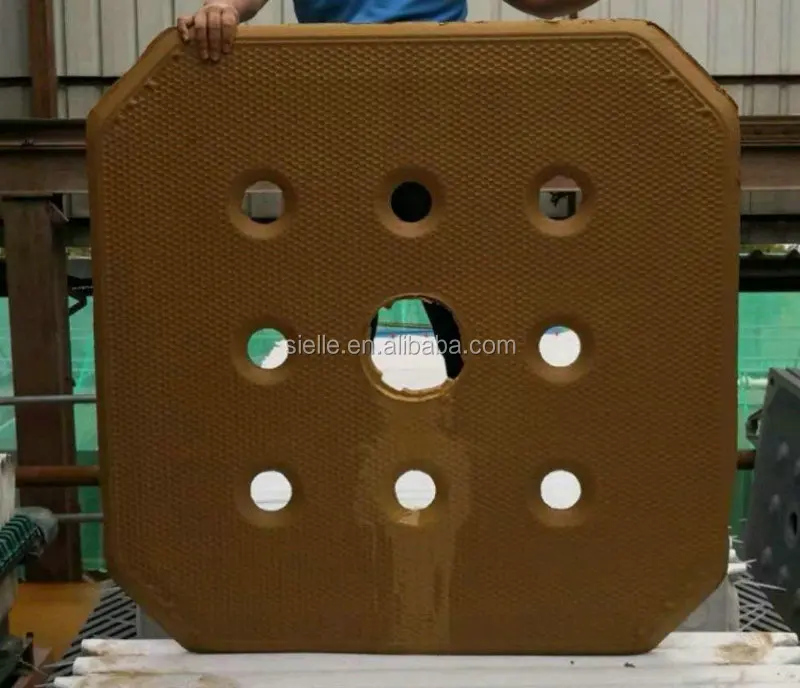

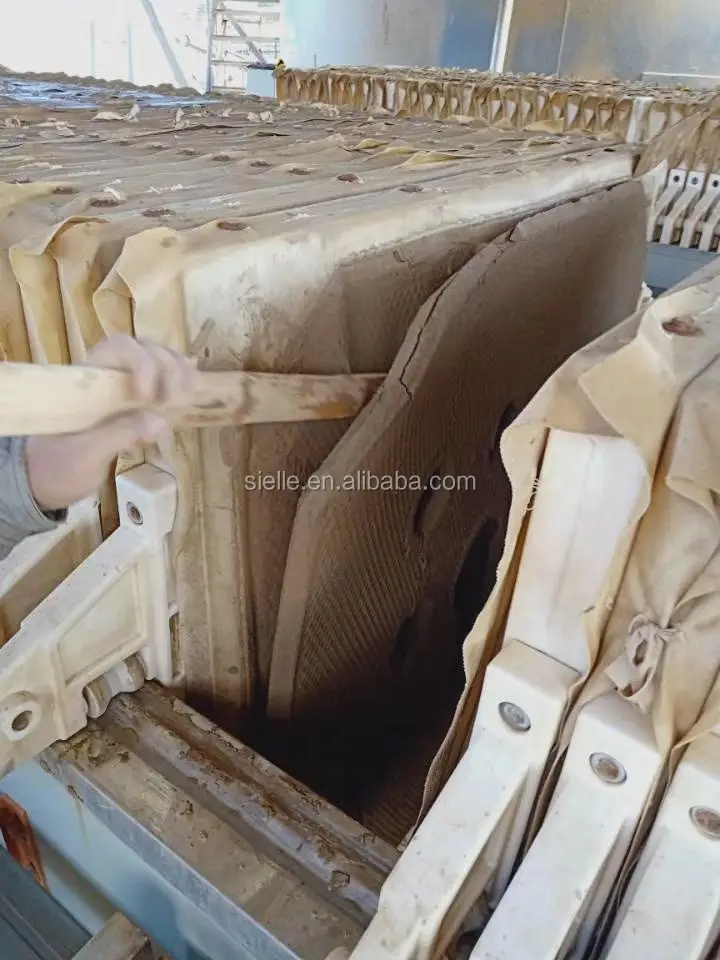

Filter cake:Beer Diatomite Filter Machine Wine and Oil Diatomaceous Earth Filter Price

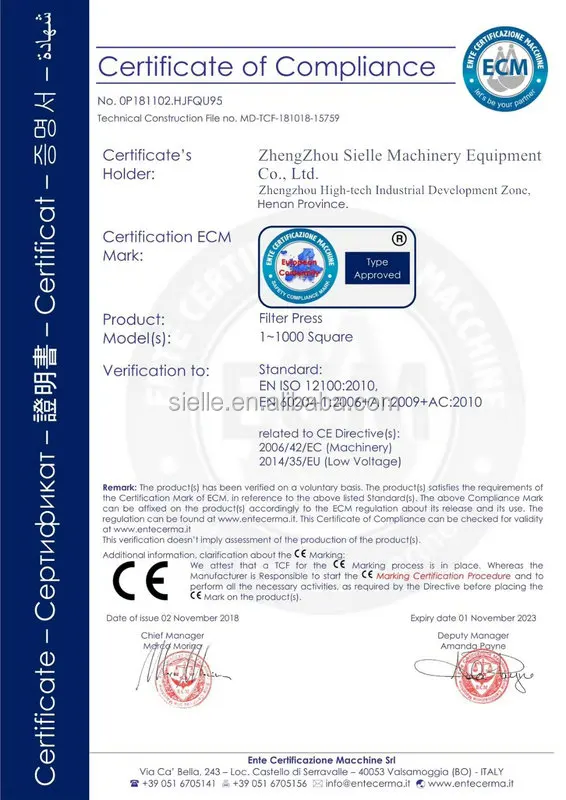

Certifications

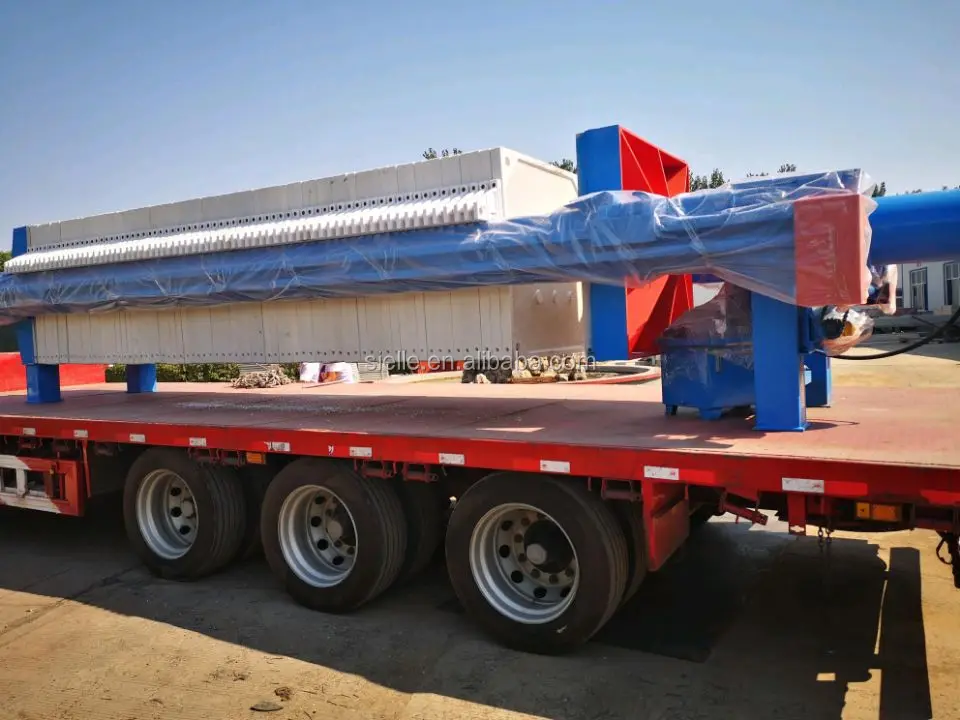

Product packaging
FAQ
1,The payment
Our company accepts T T, L/C, D/P, D/A, Western Union for clients.
2,The delivery time
Generally it is 5-7 days if the Products are in stock. Or it is 7-15 days if the products are not in stock, it is according to quantity.
3,About quality
Welcome to our factory and check the quality of products. Besides, we will send you the video and pictures before shipment after your order.
4, Equipment warranty
Equipment with 12 months warranty, which can be extended to 15-18 months as request.
Our company accepts T T, L/C, D/P, D/A, Western Union for clients.
2,The delivery time
Generally it is 5-7 days if the Products are in stock. Or it is 7-15 days if the products are not in stock, it is according to quantity.
3,About quality
Welcome to our factory and check the quality of products. Besides, we will send you the video and pictures before shipment after your order.
4, Equipment warranty
Equipment with 12 months warranty, which can be extended to 15-18 months as request.
5, How to install and run the machine?
Our technicians have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. It's very easy to install them.
Our technicians have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. It's very easy to install them.
6, Don't know which type you need?
Please send us your requirement or contact us directly! We will choose the right model for you.
Please send us your requirement or contact us directly! We will choose the right model for you.
