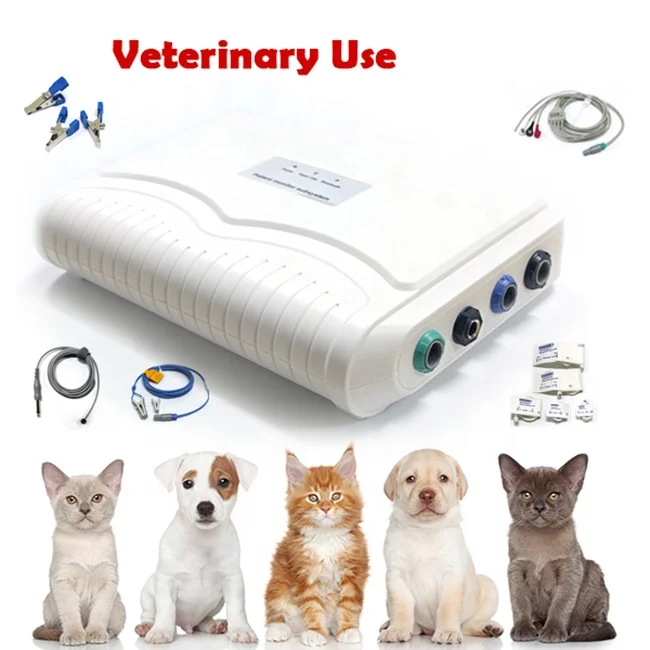

Портативный многопараметрический Монитор артериального давления Berry AM6750 ветеринарный

Описание и отзывы

Характеристики

BERRY AM6750 Handheld Veterinary Multi Vital Signs EtCo2 Monitor with Bluetooth

Model: AM6750




AM6750 is a Veterinary Multiparameter Monitor,Its portable design and flexible installation and operation make it easy to meet the specific requirements.

AM6750 can monitor multiple vital signs,including SpO2, NIBP, PR, ECG, Temp, Resp,Etco2.
Alsoour R&D team can support you to do secondary development based on the detail requirements.

Small and light. As a portable device, it is only 0.80 kg in weight.
Multi-parameter monitoring, including ECG, respiration, SpO2,blood pressure, pulse rate, temperature, carbon dioxide, etc.
Supports USB, serial port and Bluetooth communication.

Through serial port, USB or Bluetooth, the data can be transfer to PC or other smart devices. It is widely used in types of surgery in the pet emergency centers and pet hospitals.

- CheapPatient Monitor is with Single power support.

- Cheap Patient Monitor has the function of automatically connecting the device that was connected last time.

- Small in size ,flexible in installment,highly reliable and accurate in testing.

- Rapid ,accurate testing.

- Continuously working.

- Derectly connecting with PC.

- Stable in timely uploading by patients’ data, removable, convenient and reliable. Continuously monitoring upgrades traditional monitoring to modern removable mode.



Specification





Operation system	Android
ECG	Waveform: Lead I Band width 0.05Hz-100Hz(3dB) diagnose mode 1-40Hz monitor mode 0.1-25Hz operation mode
Resp	Chest impedance method Scope: 0 bpm to 100bpm Accuracy: ±1bmp
Temp	Type: Vascular/surface temperature Scope: 20℃-50℃ Accuracy: ±0.2℃
NIBP	Detection scope: Systolic blood pressure: 4kPa-34kPa(30-255mmHg) Diastolic pressure: 2kPa-29.3kPa(15-220mmHg) Mean pressure: 2.7kPa-31.3kPa(20-235mmHg) Detection accuracy: Static pressure:±4mmHg
SpO2	Detection scope: 35%-100% Accuracy: ±2% 80%-100% ±3% 70%-79%
Heart rate	Scope: 15bpm to 300bpm Accuracy: ±1bpm
AC   adapter	Input:AC100-240v-200mA Output:DC 12V2A
Bluetooth	Support both   Bluetooth 3.0 and BLE 4.0
Size	24cm*16.5cm*5cm
Weight	620g
Working temperature	-10°C--+40°C
Working voltage	Above DC 12V 2A power PCBA reconmmended

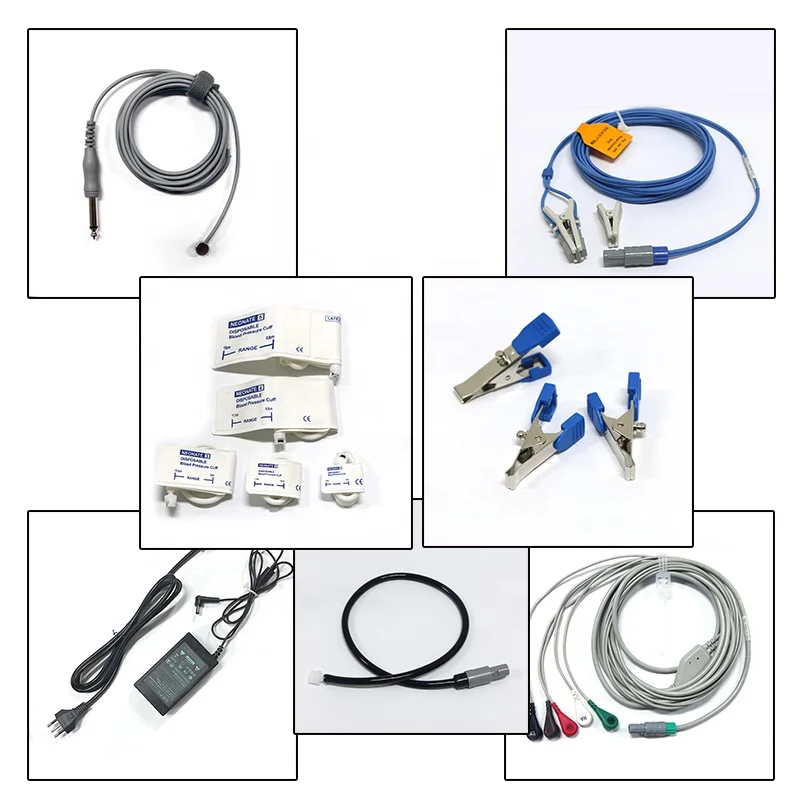

AM6750 host                                                             1 PCS

5 lead ECG cable                                                        1 PCS

BCI large ear clip sensor/ BCI small ear clip sensor          1 PCS

Disposable blood pressure cuff 1 -5 No.                         1 PCS

TPU neonatal cuff with single tube                                1 PCS

Domestic blood pressure tube                                      1 PCS

Power Adapter                                                          1 PCS

Temperature probe                                                   1 PCS
