Product Description
XCMG official 230HP metal rc bulldozer price TY230
* The machine features reasonable layout, excellent performance and advanced technology.
* Higher engine power reserves efficiency, bigger torque output, lower fuel consumption, while better reliability.
* Hydraulicly controlled drive, automatically speed regulating and non-stop gear shifting.
* The final drive uses triangle Spline and tip relief, crowned gear drive to enhance the balance and the stability of the load of transmission Part.
* The novel hexahedral cab offers excellent visibility, the powerful ventilation and unparalleled dust-free.
* Hydraulicly controlled drive, automatically speed regulating and non-stop gear shifting.
* The final drive uses triangle Spline and tip relief, crowned gear drive to enhance the balance and the stability of the load of transmission Part.
* The novel hexahedral cab offers excellent visibility, the powerful ventilation and unparalleled dust-free.
Professional power:
* Pulse exhaust manifold for improving performance and emission.
* With a high torque reserve and a low speed under the maximum torque condition for a good adaptation.
* High quality cast iron and special designed valve guide for the seal performance and durability.
* Robust and precise balance design for crankshaft.
* Advanced turbocharger and water cooler technology.
* 4 valves per cylinder for high power and low fuel consumption.
* With a high torque reserve and a low speed under the maximum torque condition for a good adaptation.
* High quality cast iron and special designed valve guide for the seal performance and durability.
* Robust and precise balance design for crankshaft.
* Advanced turbocharger and water cooler technology.
* 4 valves per cylinder for high power and low fuel consumption.
Product Paramenters
Specification/Blade type | Straight-tilt | Angle | U-Blade |
Operating Weight(kg) | 17400 | 17700 | 17900 |
Min.Ground Clearance(mm) | 400 | 400 | 400 |
Min.Tuming Radius(m) | 3.2 | 3.2 | 3.2 |
Ground Pressure(MPa) | 0.069 | 0.070 | 0.071 |
Track Gauge(mm) | 1880 | 1880 | 1880 |
Max.Pulling Force(KN) | 142 | 142 | 142 |
Grade Ability(°) | 30 | 30 | 30 |
Blade Capacity(m³) | 4.5 | 4.3 | 8.6 |
Blade WidthxHeight(mm) | 3416x1145 | 3970x1037 | 4061x1386 |
Max.Lift(mm) | 1110 | 1095 | 1095 |
Max.Depth(mm) | 530 | 545 | 545 |
Max.tilt Adjustment(mm) | ≥860 | ≥400 | ≥400 |
Pitch Adjustment(°) | 55 | 55 | 55 |
Capability(m³/H)(Theoreticalvalue 40m) | 247 | 247 | 260 |
Weight Of Blade(kg) | 2350 | 2450 | 2560 |
ENGINE | ||||||
Rated Revolution(rpm) | 1850 | |||||
Flywheel Horsepower(HP) | 160 | |||||
Piston Displacement(L) | 14 | 10.5 | 9.73 | |||
Min.Fuel Consumption(g/kW.h) | 212 | 223 | 223 | |||
Max.Torque(Nm/rpm) | 877/1250 | 830/1100 | 830/1100 | |||
Starting Method | Starting motor 24V 7.5KW | |||||
Product Show

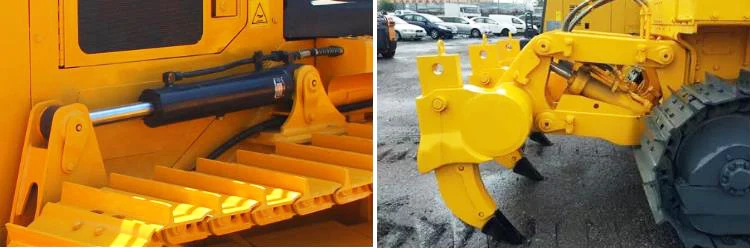

Details Images
