Shandong Hengwang Heavy Industry co.,ltd is the professional manufacturer of Pile driver,Drilling rig,Road construction machine. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. Main clients are around Southeast Asia,Mid East and South America. Welcome to visit our factory and sent inquiry to us.

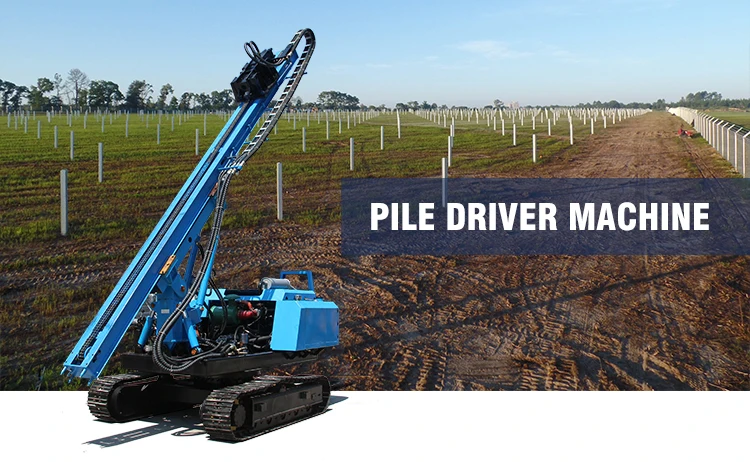

6m length fence post driver full hydraulic hammer press pile driver  Introductions :

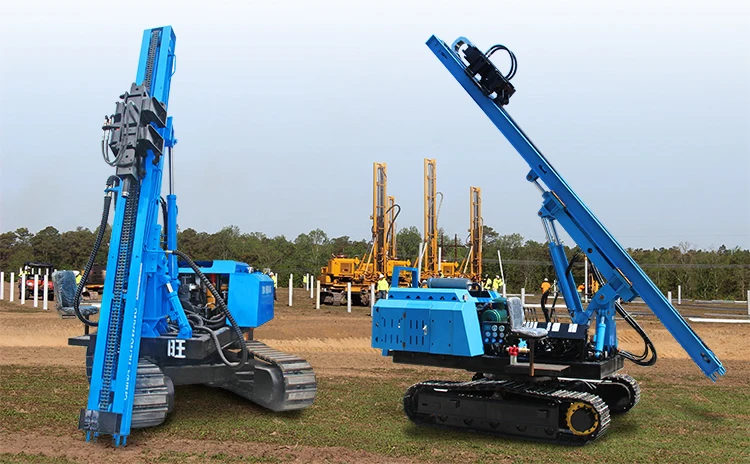

Multi-function hydraulic pile driver

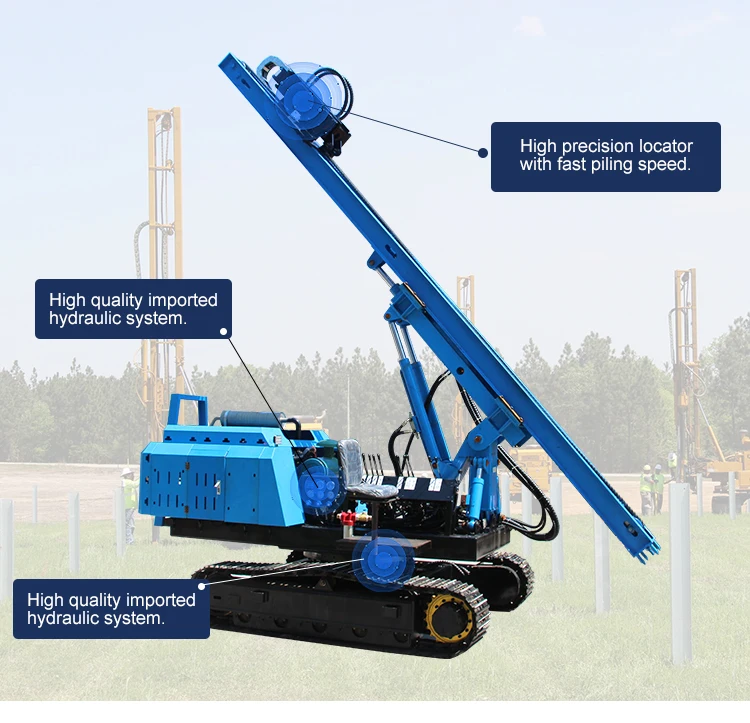

The use of new hydraulic technology, low air consumption, large rotating torque, easy to shift hole displacement. The compact structure of the rig, while pushing the carriage with telescopic compensation, support the drill hole on the ground when drilling, drilling stability. The use of this rig is reliable, wear high efficiency, suitable for diversification of working conditions, the construction unit to reduce costs and improve efficiency of a strong guarantee.
The rig is mainly used for piling anchors, wells, photovoltaic solar power pile and water conservancy, power plants, open pit mining, road and other rock burst hole drilling.



6m length fence post driver full hydraulic hammer press pile driver  Parameters:

Model	HWZG-600
Pile length	0-6000	mm
Duplex gear pump pressure	25	Mpa
Duplex gear pump pressure displacement	40/40/25	Ml/r
Hydraulic system pressure	20	Mpa
Main valve flow	150	L/min
Overall machine weight	6	T
Diesel engine power	85	KW
Rated speed	2400	R/min
Starting voltage	24	V
Rotation angle	360	-
Rotation semi diameter(rotating shaft to Pod distance )	2150	mm
Effective press pile stroke	0-5000	mm
Dimension (LXWXH )	6300X2150X2300	mm
Track shoe	350	mm

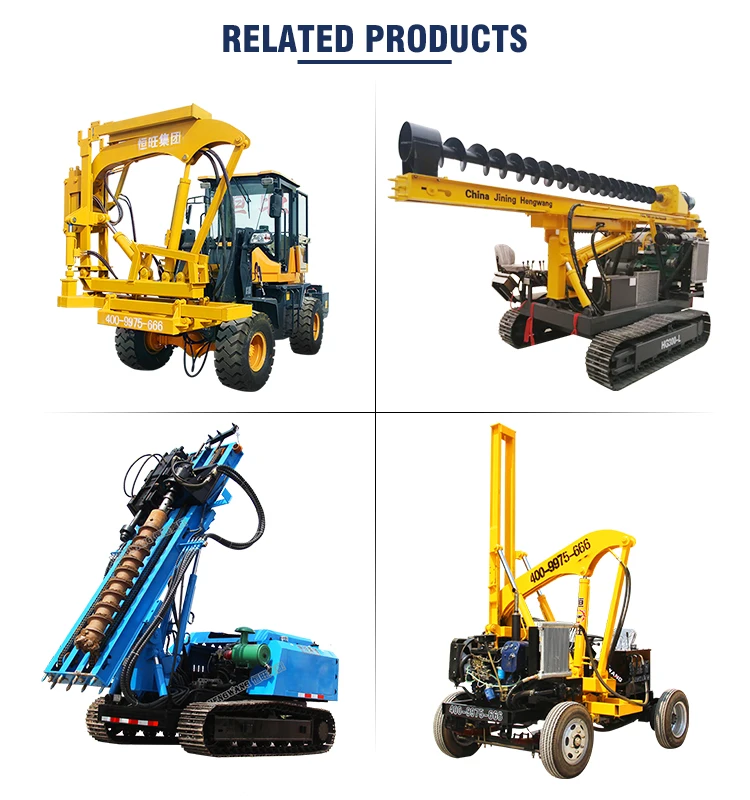

6m length fence post driver full hydraulic hammer press pile driver Related products:
