X6332 Китай мини хобби cnc фрезерный станок
US $3200-$3400
Горизонтальный фрезерный станок диаметром 50 мм ZX6350ZA
- Категории: Milling Machines >>>
- Поставщик: Shandong,Gsk,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Milling machine drilling ZX6350ZA drilling milling milling machine
Products Description
Details Images
Product Paramenters

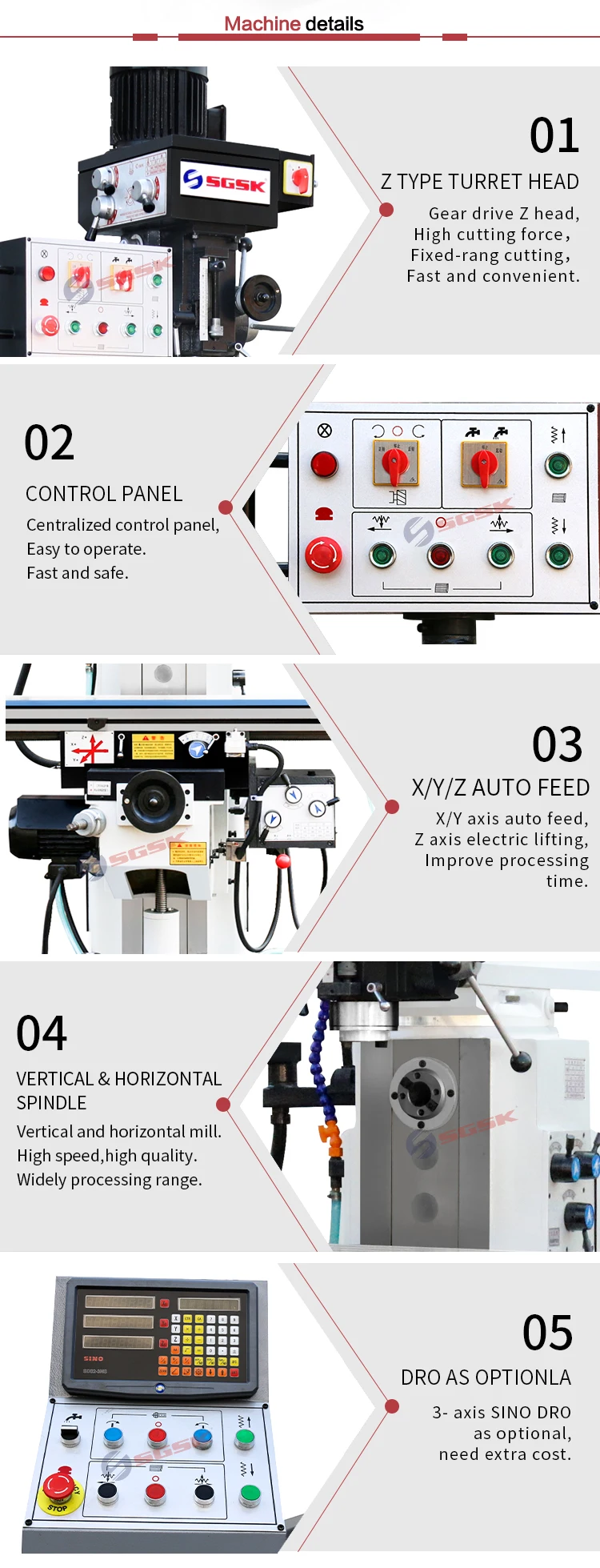

Features:
1. Vertical and horizontal milling head
2.X /Y/Z axis auto feed
3.vertical spindle manual feed and micro feed
4.Guide way with sparking quenching
2.X /Y/Z axis auto feed
3.vertical spindle manual feed and micro feed
4.Guide way with sparking quenching
Product main technical specifications:
SPECIFICATIONS | Units | ZX6350Z | ZX6350ZA | |
Max. drilling dia. | mm | 50 | 50 | |
Max. end milling dia. | mm | 100 | 100 | |
Max. vertical milling dia. | mm | 25 | 25 | |
Max.boring dia. | mm | 120 | 120 | |
Max. tapping dia. | mm | M16 | M16 | |
Distance between spindle nose and table surface | mm | 80-460 | 80-460 | |
Spindle taper | - | ISO40 (V/H) | ISO40 (V/H) | |
Spindle speed range | rpm | 90-2000(V) 40-1300(H) | 90-2000(V) 40-1300(H) | |
Spindle travel | mm | 120 | 120 | |
Table size | mm | 1200*280 Opt. 1500*280 | ||
Table travel | mm | 680*280 Opt.1000*280 | ||
Table feed speed | mm/min | X:16-480 | X/Y:22-555 Z:300 electric | |
Main motor power | kw | 1.5/2.2(V) 3(H) | 1.5/2.2(V) 3(H) | |
Machine weight | kg | 1400 | 1500 | |
Overall dimension | mm | 1680*1400*2350 | 1450*1400*2350 | |
Recommend Products
Company Profile
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
