Чип 0805 1 чип серии высокой яркости T0.8mm типа SMD LED
US $0.02-$0.05
Новый чип epistar sanan 0805 2012 красный синий зеленый белый smd светодиодное техническое описание для
- Категории: Светодиод SMD >>>
- Поставщик: Shenzhen,Xiangchuang,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
New epistar sanan chip 0805 2012 red blue green white smd led datasheet for indicator
Product Description
1. 0805 smd led features
l Package ( L/W/H ) : 2.0 × 1.25 × 1.1mm
l Color : Ultra Bright White
l Lens: Yellow Diffuse Flat Mold
l EIA STD Package
l Meet ROHS, Green Product
l Compatible With SMT Automatic Erocess

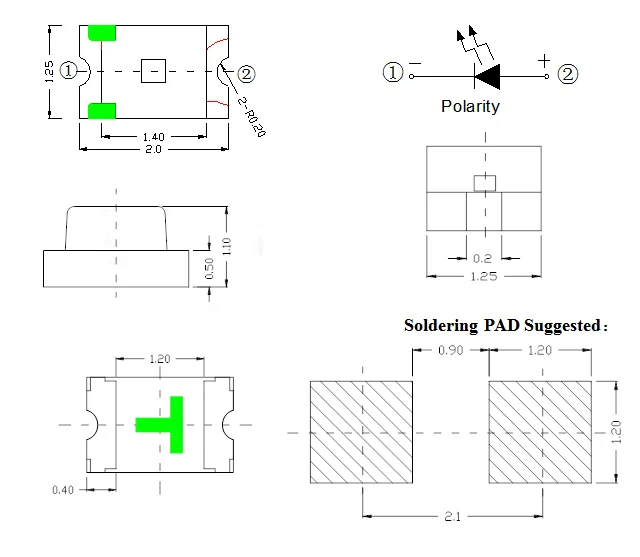

2. 0805 smd led specification
Notes: 1. All dimensions are in millimeters ;
2. Tolerance is ± 0.10 mm unless otherwise noted.
Parameter | Symbol | Rating | Unit | |
Power Dissipation | Pd | 75 | mW | |
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) | IFP | 100 | mA | |
DC Forward Current | IF | 25 | mA | |
Reverse Voltage | VR | 5 | V | |
Operating Temperature Range | Topr | -30°C ~ + 85°C | ||
Storage Temperature Range | Tstg | -40°C ~ + 90°C | ||
Soldering Condition | Tsol | Reflow soldering : 260°C For 5 Seconds Hand soldering: 300°C For 3 Seconds | ||
ESD CLASS | ESD | 2000 | V | |

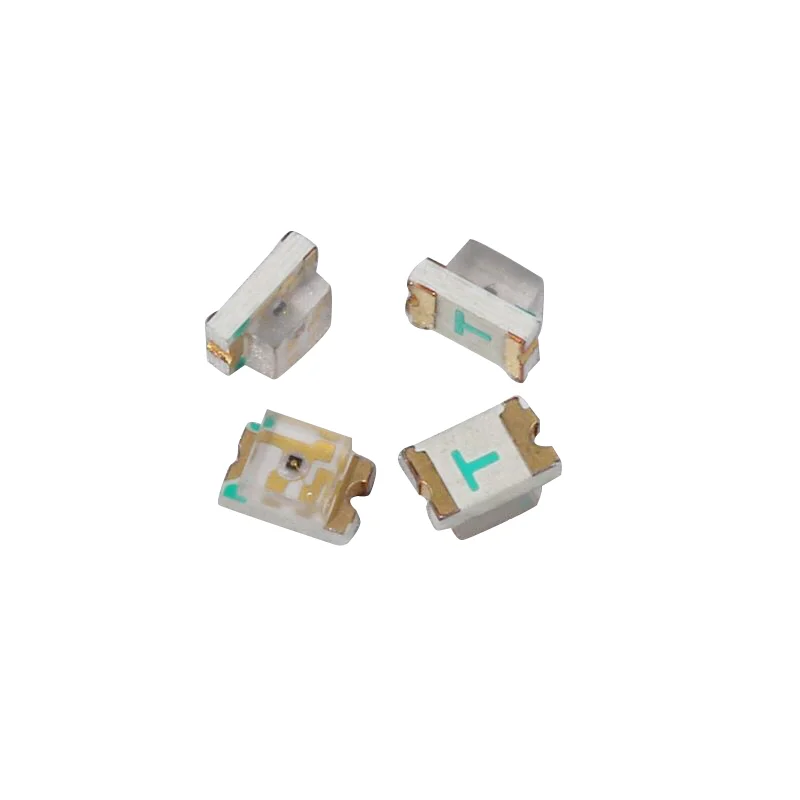

3. Product View
Related LED
Payment & Shipping
0805 smd led shipping:
1. Immediate delivery for stock products after payment received ;
2. Express for small orders ,you can receive the goods fast ,like DHL ,Fedex,UPS;
3. Air way for bulk orders,more economic ,but you need to collect goods at airport .
![[EZT6TY}{{%Y}2N9%ZT2]5J.png](https://sc02.alicdn.com/kf/He024b11add3f4ee8b812a14bdd8ffcffB/239197047/He024b11add3f4ee8b812a14bdd8ffcffB.png)
Payment:
1. For small order ,we accept Paypal ;
2. For bulk order ,TT, Westeunion, Escrow ,Money Gram ;
3. For custom order ,30%--50% percent deposit in advance ,balance before delivery .
Company &Certificate
About us:
- Shenzhen Xiangchuang office is located in 702, Jinxinnong Buliding, No.,18, Guangdian North road, Dongzhou Community, Guangming Street, Shenzhen,with 200 square meters, and about 20 sales person.
- Xiangchuang production base is located in Shuitian No. 4 Industrial Area, Baoan District, Shenzhen, with 3000 square meter of standard factory building, about 300 workers and ten R&D engineers.
Contact us
For more details about 0805 smd led, you can use these info below to contact us:
Mr. Daniel
Tel: 00 86 183 9094 7441
skype: live:778390279_1
Wechat/ whatsapp:18390947441
Or you can simply click the "send" below to send your inquiry.
