Product Description

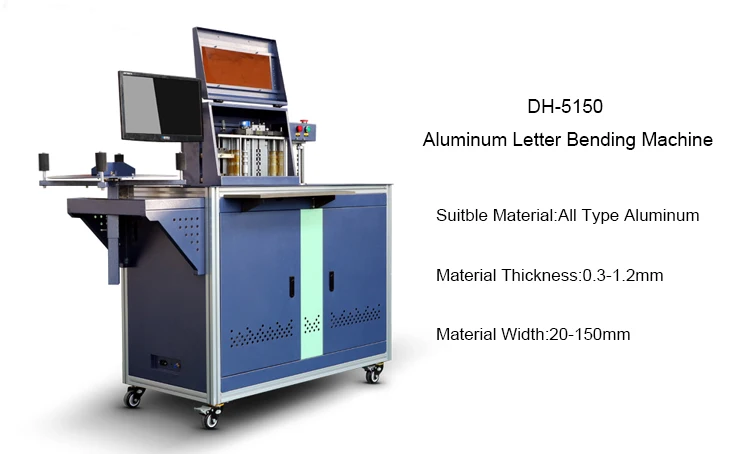

2020 Automatic multi functional cnc steel metal channel letter making bending tools machine
(Whatsapp/wechat:0086-18866779656)
Available Materials: Flat aluminum,Aluminum profile,Channelume,Stainless Steel,Galvanized Iron,Steel etc.
Application: Trimless channel letter,Liquid acrylic channel letter,Aluminum channel letter,Aluminum profile
channel letter,Aluminum epoxy channel letter,Stainless steel channel letter,Punching channel letter.
Working principle | Auto feeding,notching and bending | |||||||
Applicable material | Stainless steel,Flat aluminum,Galvanized iron,Aluminum profile,Steel | |||||||
Bending Radius | ≥6mm | |||||||
Material width | ≤150mm | |||||||
Material thickness | Aluminum:0.3mm-1.5mm,Stainless steel 0.3mm-1.0mm | |||||||
Machine power | ≤2200W | |||||||
File format | DXF、AI、PLT | |||||||
Supporting software | Leetro software CBS4 | |||||||
Machine size | 1850mm*880mm*1350mm | |||||||
Machine weight | 385Kgs | |||||||
Gas pressure | 0.6Mpa | |||||||
Voltage | 220V50HZ1P(Can customize as your request) | |||||||
1.The grooving depth can be precisely controlled, and it is controlled by Number axis , so the precise depth of all kinds of materials can be achieved.
2.Intelligent control of software and intelligent interference check can avoid interference collision in bending process.
3.The symmetrical bending mode on both sides avoids interference in the bending process to the greatest extent, and greatly improves the bending strength.

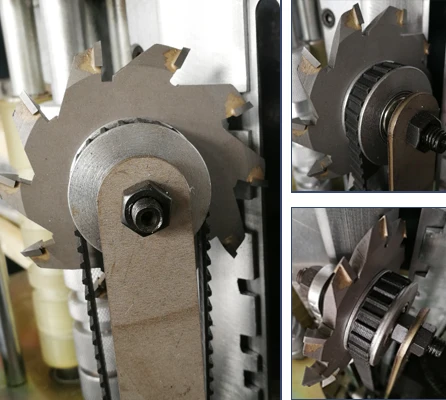

4.With the unique stainless steel planer and double slotting model of profile milling groove,can be switched by one key according to the different characteristics of the materials, which is easy and convenient.
5.The feeding height is adjusted by rotary hand-wheel, which is easy to operate.
6.Intelligent adjustment of slotting depth is realized by using imported linear guide rail and high precision ball screw.
7.Special specifications and requirements can be customized.
Detailed Images

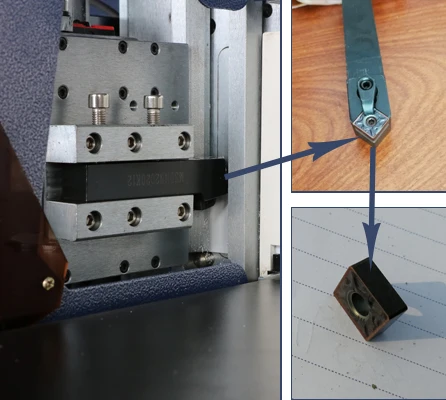

Imported Plane Cutter
The stainless steel slotting used the imported plane cutter
from Japan. It has low cutting sound, wear-resistant blade, large angle of folding, not easy to break and easy to change.

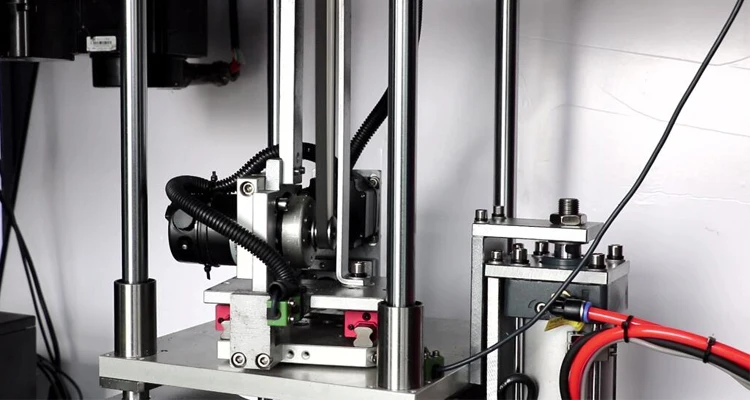

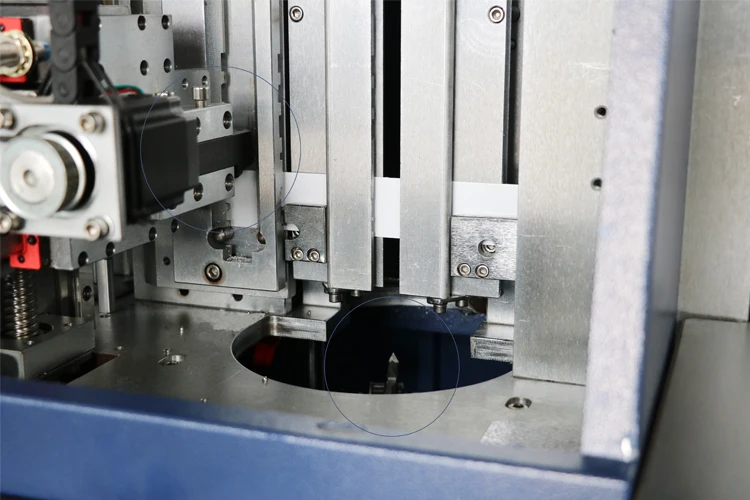

The unique depth adjusting system can automatically adjust the groove depth by modifying the software parameters, and can control the front and back adjustments separately. The motion part adopts screw rod, square rail and slider, which has high precision and good stability.

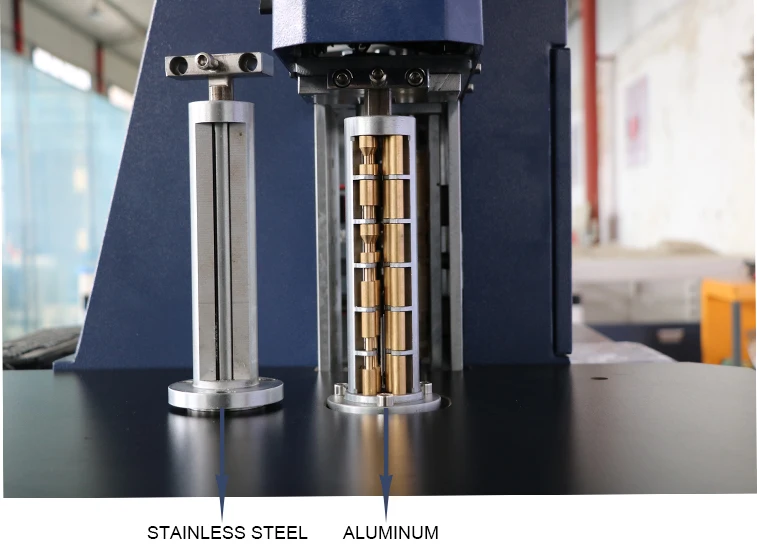

The bending part adopts the working mode of two-axis linkage bending, which is equipped with servo motor and speed reducer. It has fast speed, high precision, no damage to the material surface and small bending interference.
Servo motors,ball screw and linear guide rail ensures high slotting and bending accuracy.
Servo Motor
Ball Screw
Linear Guide Rail

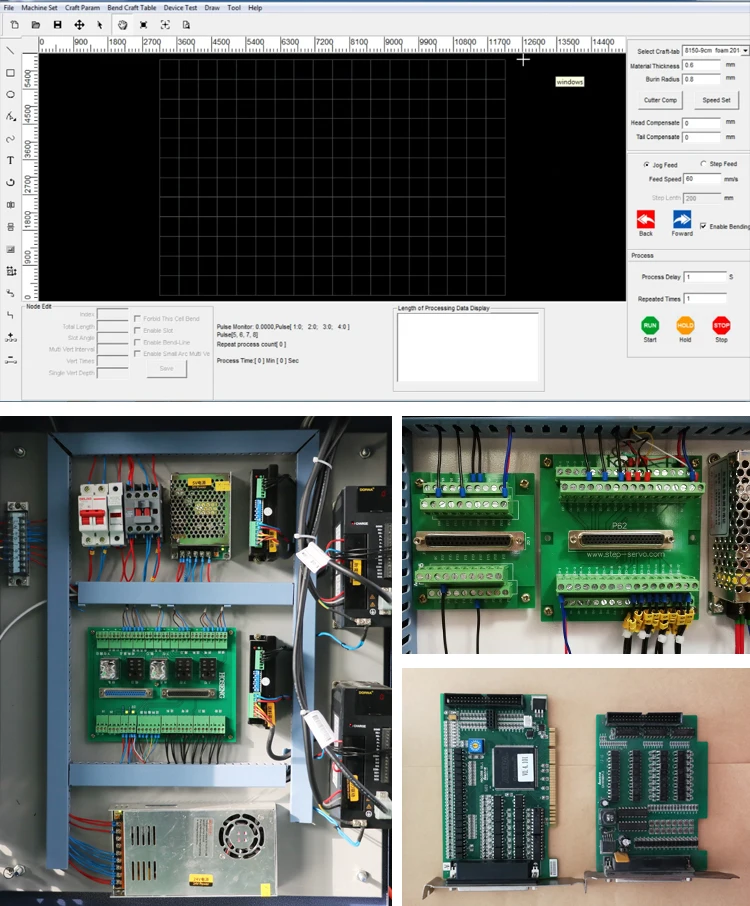

Control card and software is original leetro control system,easy to study and operate,ensure the machine calculating size with zero error.The control card running stable ,with strong anti-interference ability.

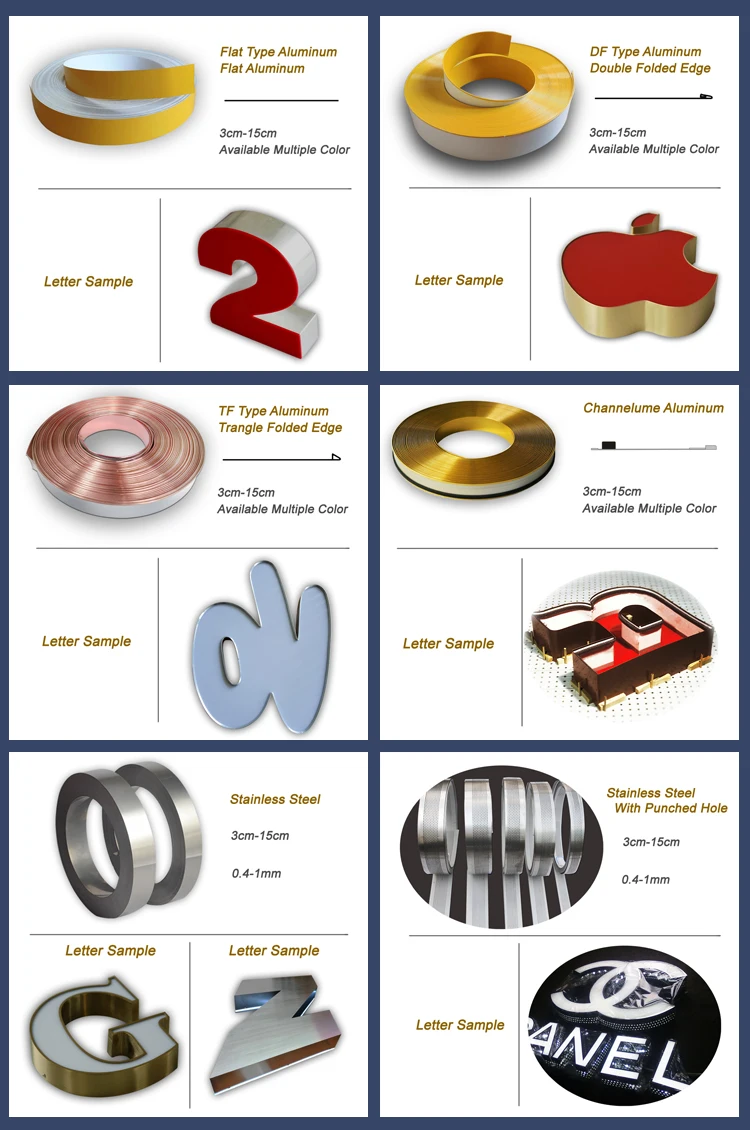

Letter Samples
Company Introduction
After Sales Service
2.We will provide the consumable parts with agency price.
3.24 hours online service,free technical support by whatsapp/wechat/teamviewer.
4.Machine has beed adjusted well before shipping.
5.We have letter bender manual and video for installation,operation and machine's using and maintenance.
6.Engineer are available to service machinery overseas.

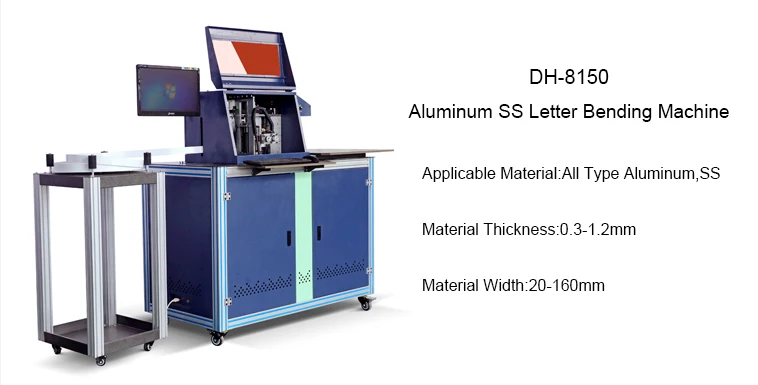

DH-8150 Aluminum stainless steel letter bending machine training video:
Machine installation:https://youtu.be/g9tNLKw1j2w
Software installation:https://youtu.be/JmIaJZxzeYk
Parameter setting:https://youtu.be/YwOA9AgaLTM
Bending tool changing:https://www.youtube.com/watch?v=mbhy9Vrqra4&t=6s
Adjusting video:
Aluminum:https://youtu.be/H9GkWsIiS0o
Stainless steel:https://youtu.be/ehi48ndZeNU
Showing video:
Flat aluminum:https://youtu.be/vdQaQwB05Ss
Aluminum profile:https://youtu.be/K6H-PaVpL-E
Channelume:https://youtu.be/ZjWcF9AKQHQ
Stainless steel:https://youtu.be/LGbdbLUQKk8
Packing&Shipping
FAQ
A: 1. We can provide free training in our company.
2. If you need,we can send our enginner to your workshop for training.
Q: How about the warranty?
A: Warranty time is one year,except the vulnerable part(including blade,belt).
Q: Before i did not use the machine,if easy to study and operate?
A: Before shipping,we will send the machine install and operation video,when you receive the machine,our enginner will use
teamview help you.
Q: How long of your delivery time?
A: The common delivery time is 7-15 working days.
Q: Which model is the best one for me?
A: You should tell me your request material,material thickness and width,then my here will recommend suitble model to you.
Q:Can you provide the aluminum and stainless steel coil?
A:Yes,we can provide different type aluminum and stainless steel.
