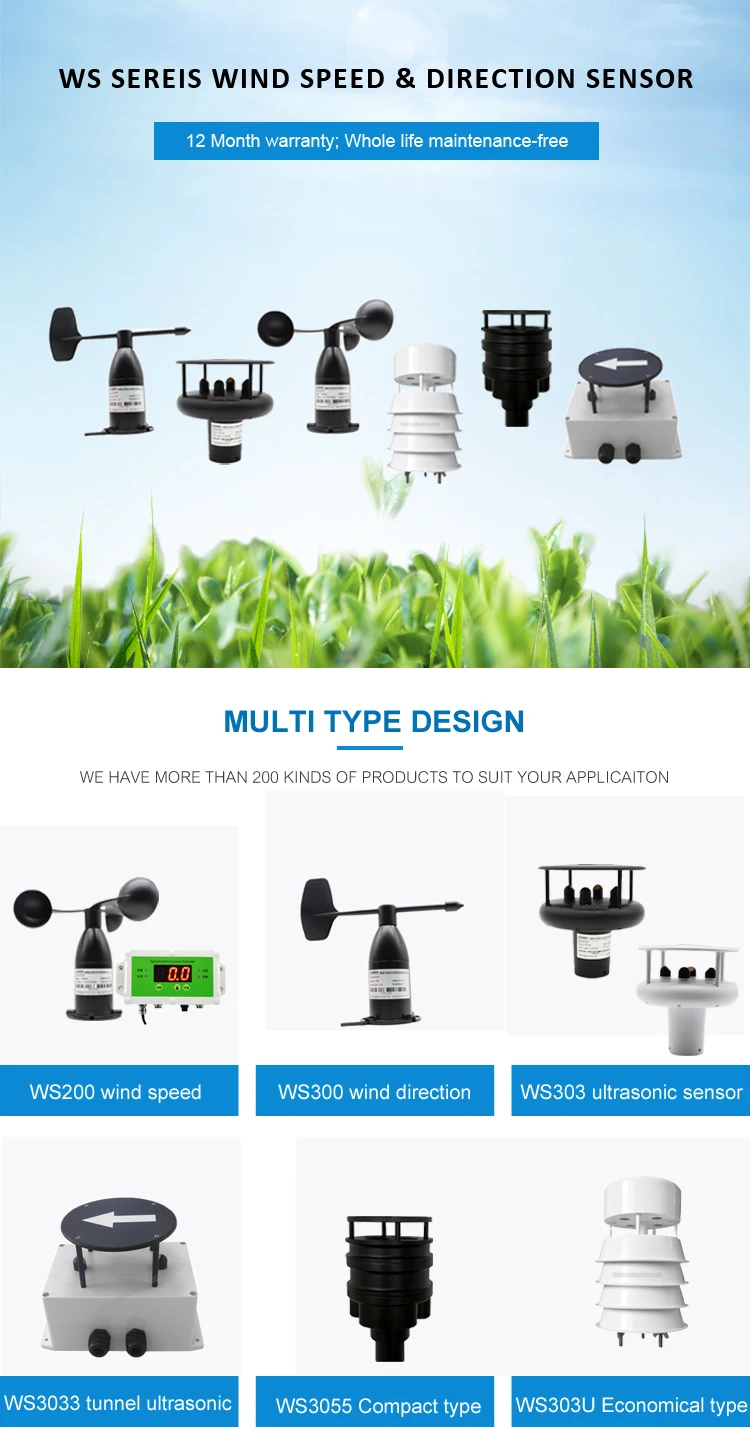

WS200 wind speed sensor adopts non-contact magnetic sensor measurement principle, high measurement accuracy and high reliability; overall aluminum alloy material, polyester coating, strong wind and corrosion resistance; wide wind speed measurement range, low starting wind speed; compact design, sensor circuit protection uses a fault-tolerant design.The sensor adopts all-aluminum alloy material, high performance, strong anti-radio frequency, anti-electromagnetic interference, anti-lightning surge protection.
Operating Voltage | 12~30VDC,15~30VDC | ||||
Material | Polycarbonate plastics, aluminum alloy metal | ||||
Output signal | 4~20mA, 0~5V, 0~10V, RS485,Pulse | ||||
Measuring range | Wind seed: 0~30m/s, 0~60m/s | ||||
Accuracy | ±0.5m/s(<5m/s) | ||||
Operating temperature | -20~+85°C, Humidity: 0%~95% (non-condensing) | ||||
Starting wind speed | ≤0.5m/S | ||||
Surge protection | EMC III | ||||
Wind strength | >70m/S 30min | ||||
Direction | 16 | ||||
Resolution | 22.5° | ||||
Electrostatic protection | 15KV | ||||
The main body material | Aluminum alloy/polyester coating | ||||
Protection level | IP65 | ||||
The specific price is subject to the parameters, please contact us for the quotation
