Name of Product
Popular YUCHAI YCR180 Rotary Drilling Rig
Product Description
Chassis
shantui mature chassis used is made by using worldclass technology, stable and reliable.
Engine
Engine provided is Com B3.9-C turbocharged engine imported with original packaging, and is trustworthy.
Main winch
It is provided with the complete set of imported hydraulic system assembly, which makes the main winch high-efficiency and powerful.
Auxiliary winch
It has auxiliary winding function, which makes construction conveniently.
Mast
It is one of main components of rotary drilling rig, is main body of suspending and guiding working device; the equipment has function of automatically making mast upside down, and is equipped with reinforced type mast, and service life of mast can be ensured.
Oil cylinder
Specially-equipped oil cylinder used for pressurizing can make drilling powerful, and travel after pressurizing reach to 1500mm
Parameter
YUCHAI water well drilling machine YCR180 rotary drilling rig for sale
| YUCHAI | ||||
| MODEL | YCR50 | YCR120 | YCR180 | YCR220 |
| Max. pile Diameter(mm) | 1200 | 1500 | 1800 | 2500 |
| Max. pile Depth(m) | 23 | 40 | 59.3 | 82 |
| Max.output torque(kN m) | 50 | 120 | 180 | 260 |
| Speed of rotationrpm | 6-35 | 8~28 | 7~26 | 6~24 |
| Engine model | CU-MMINS B3.9 | CU-MMINS 6BT5.9-150 | CU-MMINS 6C8.3 | CU-MMINS QSM11-C330 |
| Rated power (kw/rpm) | 86/2200 | 112/1950 | 186/2,200 | 246/2,100 |
| Working pressure(Mpa) | 34 | 34 | 34 | 34 |
| Diameter of the steel wire rope(mm) | 16 | 16 | 26 | 32 |
| The length of crawler (mm) | 4310 | 4446 | 5538 | 5816 |
| Track shoe width(mm) | 600 | 600 | 700 | 800 |
| Operating weight (t) | 18.2 | 35t | 64.2 | 81.1 |
| Transport Dimensions (LxWxH/mm) | 9950x2600x3480 | 12630x2990x3350 | 14320x3200x3512 | 16165x3300x3510 |

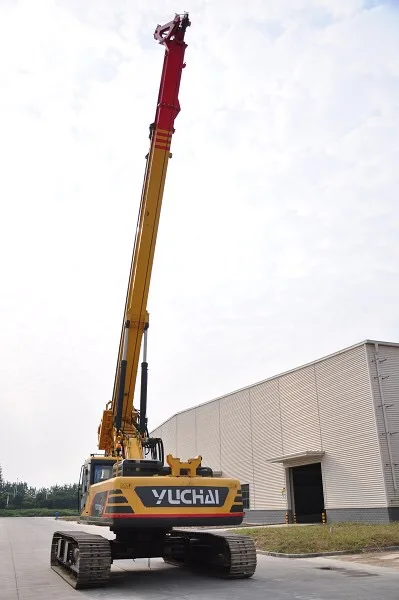

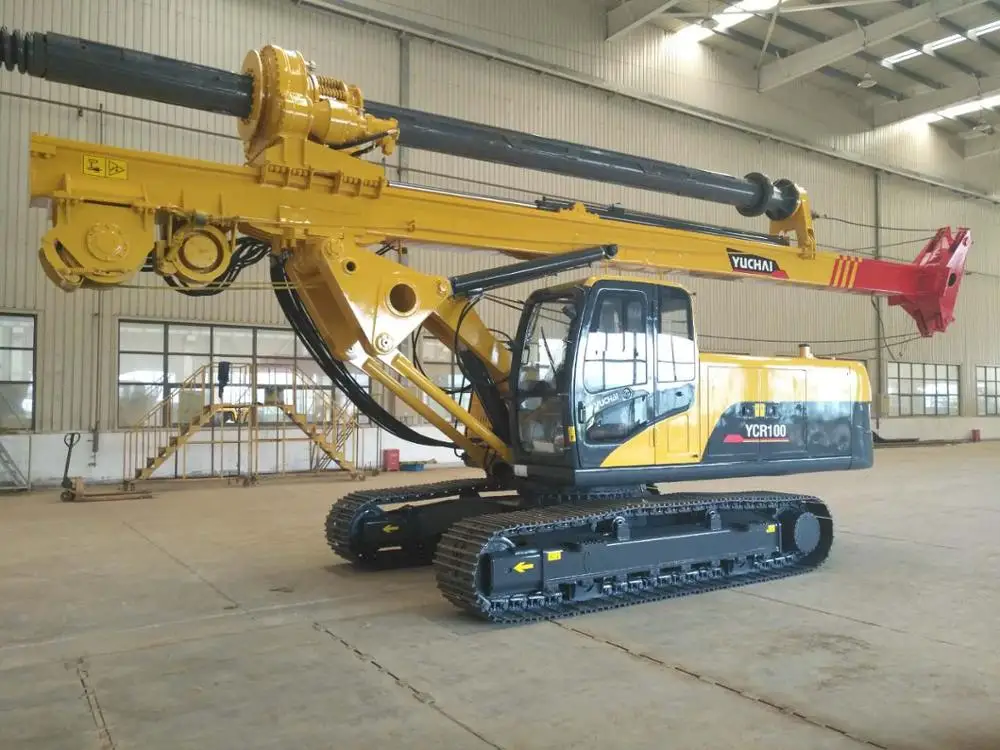

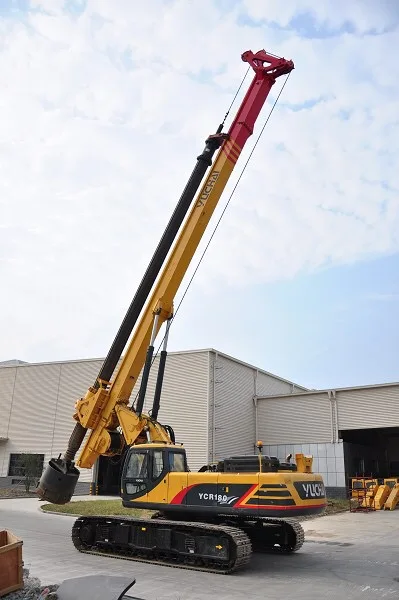

Product show
