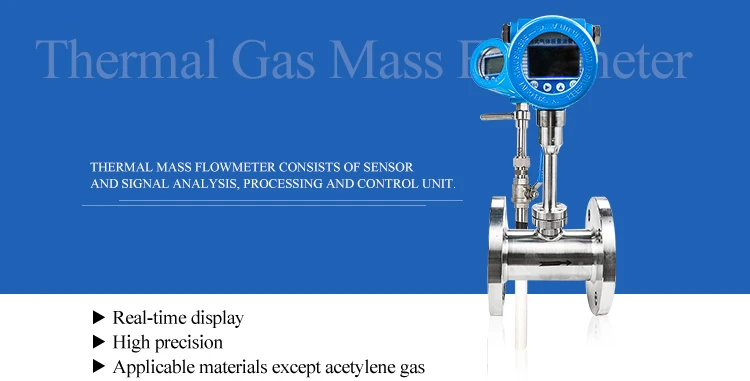

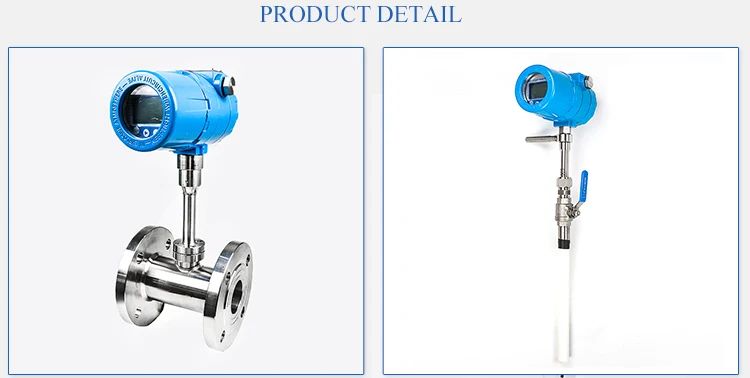

      Thermal Type Gas Mass Flowmeter utilizes the principle of heat exchange to measure fluid -flow. This meter employs method of constant temperature difference to accurately measure gas mass flow, and it has the advantages of small size, high degree of digitization, easy installation, accurate measurement, etc.

     The sensor part consists of two platinum resistance converters of reference level. It utilizes bridge type loop circuit, with one converter measuring fluid temperature, and another maintaining constant temperature difference that is higher than fluid temperature. The measurement can be made under high temperature and high pressure situation.





Technical Parameters Of Thermal Gas Mass Flow Meter

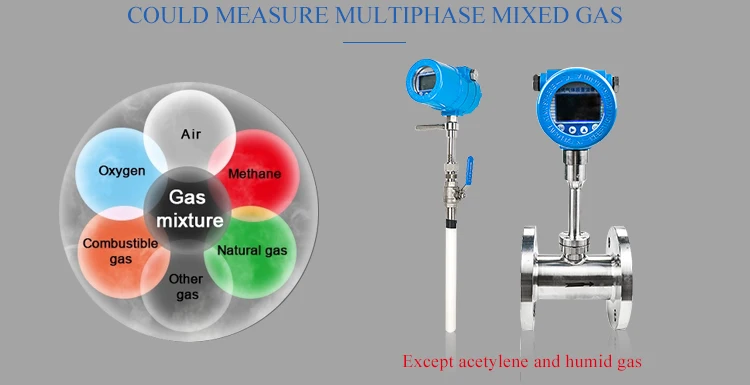

Measuring medium	All kinds of gases (excluding acetylene)
Range of caliber	DN10~4000mm	DN25~2000mm
Range of velocity of flow	0.5~100Nm/s
Order of accuracy	±1%
Working temperature	Sensor: ambient temperature-10~+200C high temperature modification-10~+350C Converter: -10~+45C
Working pressure	Medium pressure<2.5 Mpa	Medium pressure<4.0 Mpa
Power supply source	DC24V or AC220V
Output signal	4~20mA(photoelectric isolation with top load of 500Ω) RS-485(photoelectric isolation), HART protocal
Pipeline material	carbon steel, stainless steel,plastics,etc.

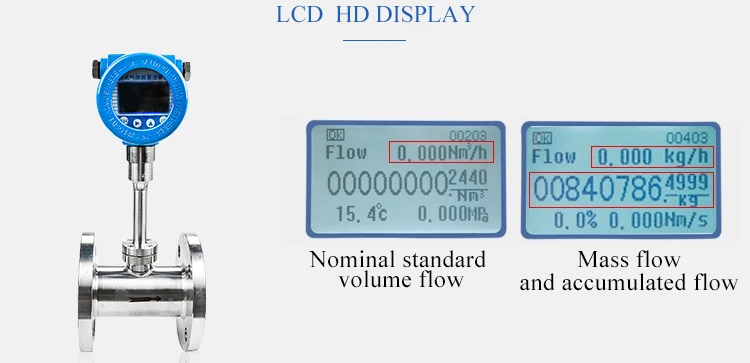

Display	All-in-one type: four lines with LCD
Level of protection of one-time meter	IP67
Keywords	flange connection 4-20ma co2 gas flow meter
Converter material	Stainless steel	Stainless steel, carbon steel





Features

1) Measuring the mass flow or volume flow of gas.

2) Do not need to do temperature and pressure compensation in principle with accurate measurement and easy operation.

3) Wide range: 0.5Nm/s~100Nm/s for gas.

4) Good vibration resistance and long service life.

5) Easy installation and maintenance.

6) Digital design, high accuracy and stability.

7) Configuring with RS485 or HART interface to realize factory automation and integration.





Flow Range

Item	Thermal gas mass flow meter
Diameter	Flow range((Nm3/h))
DN20	1.2~120 (Flange type)
DN25	2.5~168.5 (Flange type)
DN32	4~275 (Flange type)
DN40	6~430 (Flange type)
DN50	9~671.5 (Flange type)
DN80	20~1718.5 (Flange type)
DN100	30~2685 (Flange type)
DN150	60~6045 (Flange type)
DN150	60~6045 (plug-in)
DN200	120~12738.5 (plug-in)
DN250	150~18779 (plug-in)
DN300	200~28000 (plug-in)
DN400	350~48955.5 (plug-in)
DN500	600~77177.5 (plug-in)
DN600	800~100000 (plug-in)
