CSSGO-02 Dc24V двойные качели автоматические
- Категории: Gate Operators >>>
- Поставщик: Chisung,Intelligence,Technology,(shenzhen),Co.,Limited
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Name | Swing gate opener DC24V 250KG X2 factory suppliers liner gate motors |
Model | CSSGO-02-DC24V |
Power Supply | AC220V±10V 50/60HZ,AC110V±10V, 60Hz |
Electric motor | DC 24V |
Current | 2A |
Absorbeb power of motor | 28W |
Max each leaf length | 2.5m |
Max each gate weight | 250Kg |
Motor speed | 1.6cm/s |
Rotational speed | 4500RPM/min |
Thrust | 400N |
Running time protection | Adjustable |
Rod's max travel | 400mm |
Auto closing delay time | Adjustable |
Gate move speed | 12S/90degrees |
Operating Temperature | -20°C~+70°C |
Relative Humidity | ≤95%, No Condensation |
Protection class | IP45 |
Application | home automation |
limit switch | with the limit switch |
condenser | / |
Door opening angle | 90°,100°,110°,120° |
Packing | 19kg, 2 motors in one carton: 950*230*170mm, 1 control panel in one carton: 320*250*190mm, Together 2 cartons |
Product performance description

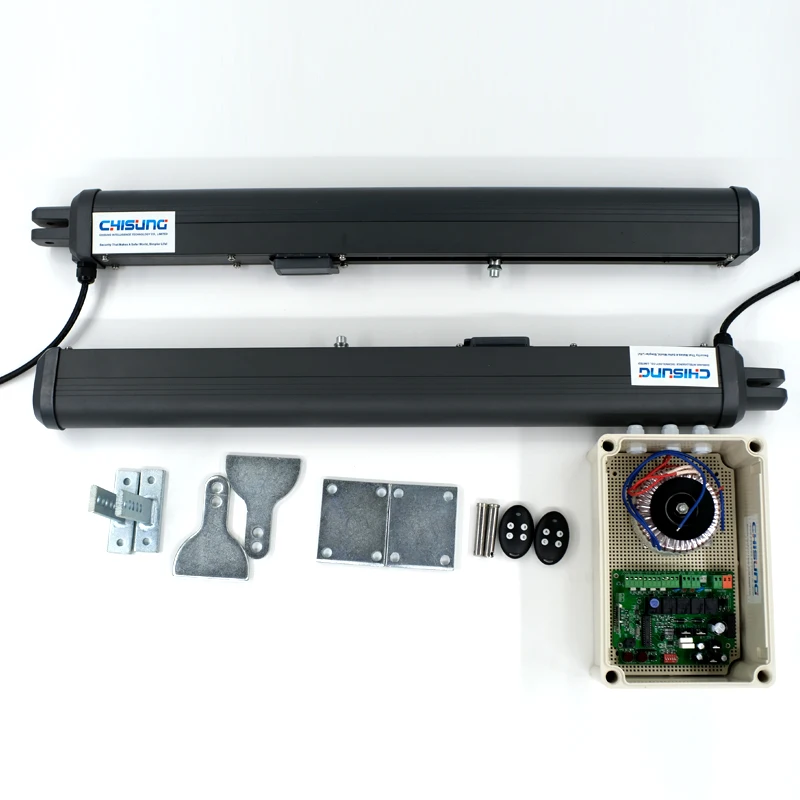

1 .Standard Each kit includes :
2 motor + 1 control panel(board+box) + 2 remote control +1 pair photocells sensor + others mounting brackets.
（This model has with the limit switch, back-up battery interface, solar panel&battery interface）
2 motor + 1 control panel(board+box) + 2 remote control +1 pair photocells sensor + others mounting brackets.
（This model has with the limit switch, back-up battery interface, solar panel&battery interface）
2. Safe and reliable home automation system
Durable, stylish European design and functionality, metal parts are galvanized steel, powder coated outer body part to prevent
corrosion and rust .
Durable, stylish European design and functionality, metal parts are galvanized steel, powder coated outer body part to prevent
corrosion and rust .
Details Images
Product Function
Electronic protection
Anti-extrusion protection is achieved by control of the CPU directly controls the driving force to open the door in emergency manual operation is available , to protect the internal and external damaged .
Anti-extrusion protection is achieved by control of the CPU directly controls the driving force to open the door in emergency manual operation is available , to protect the internal and external damaged .
Easy installation, no need much space
Strict production testing to ensure that each machine only needs to be installed on the door , you can simply adjust the ease of use , due to the compact shape ,can be installed in narrow space of the occasion , can be used on 2.5m wide and weights 250kg .
Strict production testing to ensure that each machine only needs to be installed on the door , you can simply adjust the ease of use , due to the compact shape ,can be installed in narrow space of the occasion , can be used on 2.5m wide and weights 250kg .
Limit switch and release device
CSSGO-02 type gate opener has limit stops (see below) can be used to adjust the door open or closed the door in place, and it is equipped with a release switch (see below), allowing in emergency situations , the door can be opened and closed manually .
CSSGO-02 type gate opener has limit stops (see below) can be used to adjust the door open or closed the door in place, and it is equipped with a release switch (see below), allowing in emergency situations , the door can be opened and closed manually .
Product Usage
Product usage introduction
DC24V motors , each leaf max width is 2 meters , each leaf max weight is 200kg , it has the back-up battery interface, solar panel&battery interface , you could use the solar panel and back-up battery .
Such as your each gate is 50 to 200kg , welcome to use this model swing gate opener. .
Such as your each gate is 50 to 200kg , welcome to use this model swing gate opener. .
Description of product use effect
Optional
We could supply the double whole kit product ,the single whole kit gate opener , or single motor , or just the control board etc .
For our swing gate opener , you could add other accessories depand on your demand , such as the warning light , photocell sensor
,Keypad , or other RFID card, fingerprint machine and other functions.
For our swing gate opener , you could add other accessories depand on your demand , such as the warning light , photocell sensor
,Keypad , or other RFID card, fingerprint machine and other functions.
Packing&Shipping
Packing is carton , if you need more ,we will do the Plywood tray for delivery .
For the shipping , Express , Sea shipping are welcome .
Company Introduction
Chisung company is a high-tech enterprise in Shenzhen China, now a leader in the research and development,manufacture and distribution of intelligent security and protection, Gate motors products and service. Chisung products series mainly include all kinds of gate motor(Swing gate motor, Sliding Gate motor, Underground Gate motor, Curve Arm gate motor, Automatic control board and Accessories,Solar-powered system).Chisung apply itself to provide our customers with constant innovative and high quality products, services and solutions, also provides ODM,OEM service to the related products, in order to create long term and steady customer satisfaction and value for our customers.
FAQ
1. Are you manufacturer or Trade Company?
We are professional and leading gate opener manufacturer, Our gate motors technology originates from 1991.
We have more than 30 models different gate motors .
2. Can I order only some parts of the gate opener ?
Yes, we supply motor, control panel , remote controller , electric lock etc ,they could be sold separately .
3.What terms of payment you use?
T/T, L/C ,Western Union, Alibaba Assurance Trade Order ,Paypal
4..What's you warranty?
One year and life time technology suppport
We are professional and leading gate opener manufacturer, Our gate motors technology originates from 1991.
We have more than 30 models different gate motors .
2. Can I order only some parts of the gate opener ?
Yes, we supply motor, control panel , remote controller , electric lock etc ,they could be sold separately .
3.What terms of payment you use?
T/T, L/C ,Western Union, Alibaba Assurance Trade Order ,Paypal
4..What's you warranty?
One year and life time technology suppport
