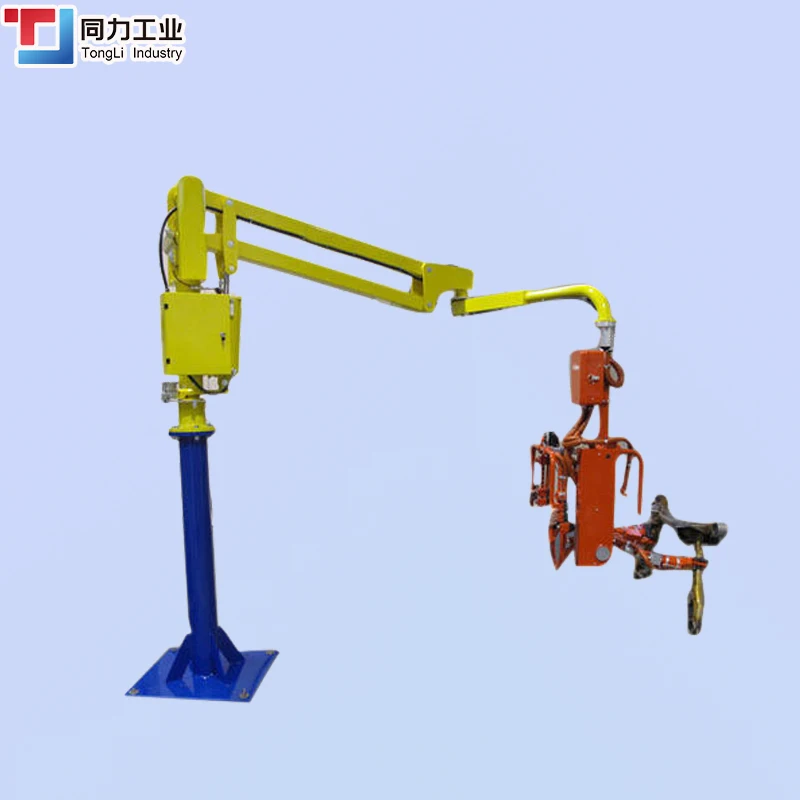

Mini Crane 300KG Hoist Lifting Equipment High Productivity Manipulator
Product Description
With the high development of modern high-tech power, more and more advanced technologies have been applied to logistics activities, and one of the relevant important applications is the transport manipulator.Pneumatic manipulator, as a kind of manipulator, is widely used because of its advantages including simple structure, light weight, fast movement, stable, reliable, energy saving and environmental protection.
The carrying manipulator usually has the following three characteristics: 1.The pins can be designed with pneumatic or mechanical clamps and vacuum suckers. 2.Each arm is individually designed for practical use. The metal body of the manipulator is suitable for various industrial applications. 3.Watch moves, lifts and clamps by PLC or industrial computer to complete a set task.
Technical Parameter of Industrial Manipulator
Model
Operational air pressure
(bar)
Max. Action Radius
(m)
(It can be adjusted according to actual conditions)
Max payload
(Kg)
Maximum lifting stroke
(m)
(It can be adjusted according to actual conditions)
TLJXS-50
5
2.5
50
2
TLJXS-75
5
2.5
75
2
TLJXS-100
5
2.5
100
2
TLJXS-125
5
2.5
125
2
TLJXS-150
5
2.5
150
2
TLJXS-175
5
2.5
175
1.5
TLJXS-200
5
2.5
200
1.5
TLJXS-250
5
2.5
250
1.5
TLJXS-300
5
2.5
300
1.5
TLJXS-400
5
2.5
400
1.5
TLJXS-500
5
2.5
500
1.5
Working radius and lifting stroke can be set according to workpiece size and site requirements
Manipulator Application:
The company's products are widely used in Glass Industry,Packaging,Paper and Printing Industry,Building Industry,Machinery Manufacturing,Foundry Industry,Chemical and Pharmaceutical Industries,Auto Parts Industry,Automotive Assembly and many other industries.
It can handle workpieces and products of various shapes and weights. For example, bags, carton boxes, chemical barrels, oil drums, large rolls of plastic rolls, glass, plates, air conditioners, condensers, compressors, metal castings, molds, sand cores, car tires, front wall, skylights, Dashboard, cylinder head, etc. The fixtures of each manipulator are specially designed and manufactured according to the customer's specific conditions.
Provide clamp customization services to meet the needs of all industries!
package : Ordinary packaging is wood and tray, if exports to Europe, the cases will befumigated (insect disinfection). If the container has remaining space, we will use PE film , or also can pack according to requirements
Delivery:By sea, air and land transportation
Company Information
Jiangyin Tongli Iindustrial co., LTD is a manufacturing enterprise specialized in the automation research and development, design, production, sales and service of storage and handling equipment.
Since its establishment, the company has been committed to solving the storage and handling problems of various materials, and providing corresponding perfect and professional solutions for the complex and changeable storage and handling requirements. It also provides effective and competitive solutions to customer budgets.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory for OEM Manipulator
Q: How long is your delivery time?
A: Generally it is 35-50days
Q: What about payment terms ?
A: Usually 30% T/T in advance,70% Balance before shipping out goods against B/L
