Токарный станок с ЧПУ VMC
US $9600-$10000
Китайский фрезерный станок с ЧПУ VMC650 обрабатывающий
- Категории: Основные и запасные части машин >>>
- Поставщик: Taian,Yuzhuo,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
VMC650 Chinese CNC Milling Machine CNC Machining Center
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
ITEM | UNITS | VMC300 | VMC550 | VMC650 |
X axis travel | mm | 300 | 550 | 650 |
Y axis travel | mm | 200 | 300 | 400 |
Z axis travel | mm | 300 | 450 | 500 |
Spindle nose to table | mm | 80-380 | 90-540 | 100-600 |
Spindle center to column | mm | 205 | 350 | 460 |
Max. X axis rapid feed | m/min | 12 | 20 | 20 |
Max. Y axis rapid feed | m/min | 12 | 20 | 20 |
Max. Z axis rapid feed | m/min | 12 | 18 | 18 |
Cutting feed | mm/min | 1-3000 | 1-5000 | 1-5000 |
Table size | mm | 600x200 | 800x260 | 800x400 |
Table max. load | kg | 100 | 400 | 500 |
T slot | 3-16-60 | 3-16-80 | 3-16-90 | |
Main spindle | BT30-100 | BT40-120 | BT40-120 | |
Spindle speed | rpm | 100-5000 | 50-8000 | 50-8000 |
Main motor | kw | 2.2/3.7 | 3.7/5.5 | 5.5/7.5 |
Positioning Accuracy | mm | ±0.01/300 | ±0.01/300 | ±0.01/300 |
Repeatibility | mm | ±0.005 | ±0.005 | ±0.005 |
Machine size | mm | 1525x1520x1810 | 2100x1700x2200 | 2250x2000x2300 |
Net weight | kg | 1300 | 2200 | 3000 |
Standard configuration:
1. GSK25i CNC Controller.
2. Taiwan BT40-150-8000 spindle.
3. Taiwan Funnel Type Tool Changer.
4. Taiwan Hiwin linear guideway.
1. GSK25i CNC Controller.
2. Taiwan BT40-150-8000 spindle.
3. Taiwan Funnel Type Tool Changer.
4. Taiwan Hiwin linear guideway.
5. Taiwan Hiwin ball screw.
6. Work Lamp.
7. Automatic Central Lubrication System.
8. Full Enclosure Machine Guard.
6. Work Lamp.
7. Automatic Central Lubrication System.
8. Full Enclosure Machine Guard.

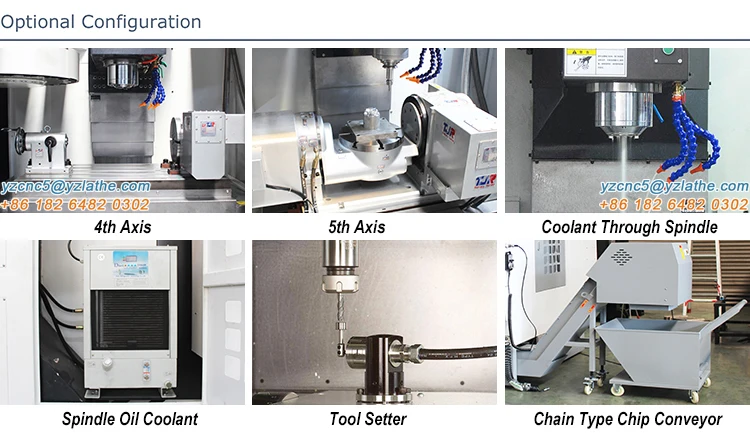

Optional Configurations:
1. GSK KND Siemens Fanuc Mitusbishi GUNT.
2. Taiwan arm type ATC.
3. Automatic chip conveyor.
4. 4th axis and 5th axis
5. Spindle oil coolant,center to water.
6. Renishaw probe for workpiece and tool.
1. GSK KND Siemens Fanuc Mitusbishi GUNT.
2. Taiwan arm type ATC.
3. Automatic chip conveyor.
4. 4th axis and 5th axis
5. Spindle oil coolant,center to water.
6. Renishaw probe for workpiece and tool.

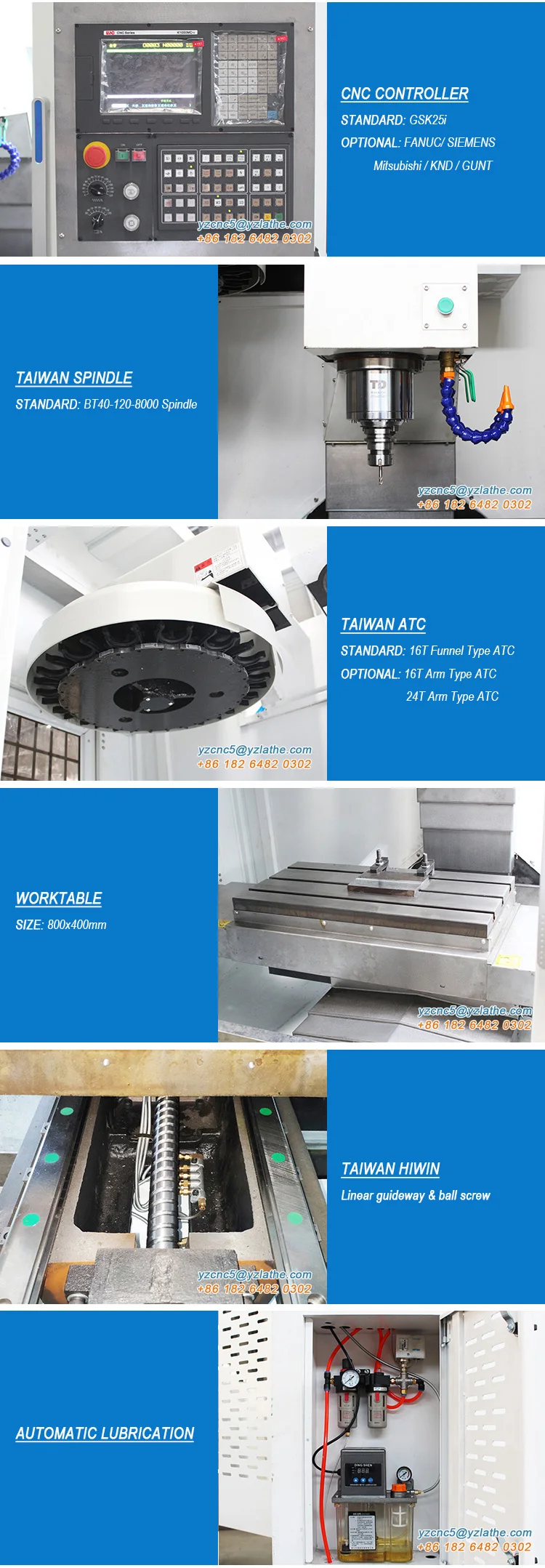

Details Display

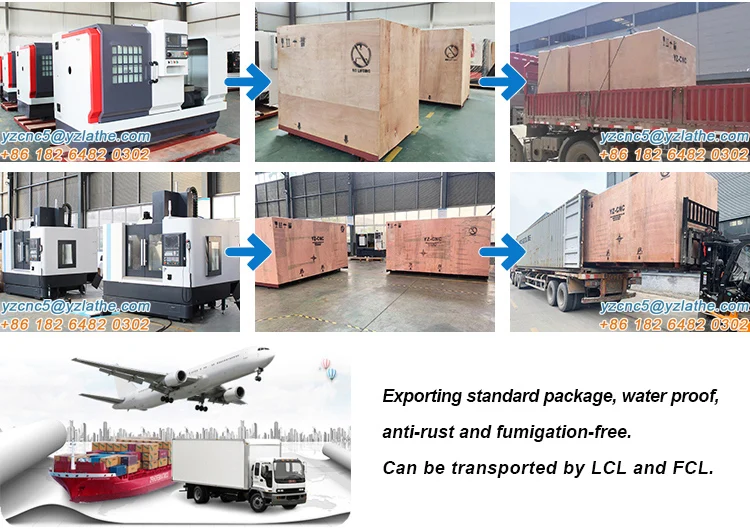

Packaging And Transportation

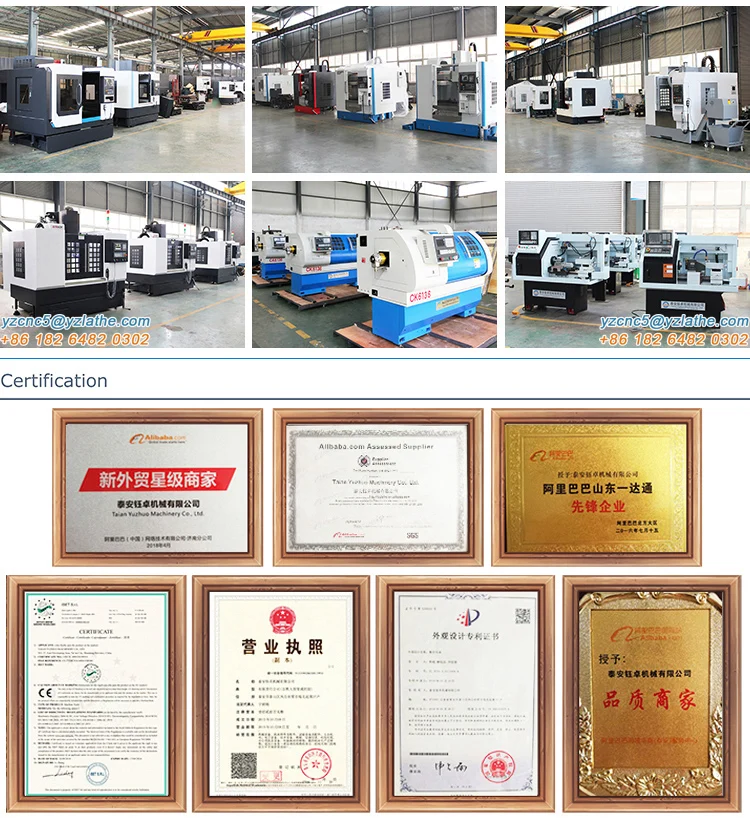

Company Profile
Taian Yuzhuo Machinery Co., Ltd. is a professional manufacturing enterprise engaged in the research, development, production, sale and service of CNC machines. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Our main products are Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center. All the above products have passed CE, SGS certificates.
Our Serivce
Pre-Sales Service:
1.Customers provide the detailed workpiece size or drawing, our professional engineer will check and recommend suitable machine model for you.
2. Customers can also send us samples by courier, we can machining some samples for your checking.
3. All of our machines can be customized according to the requirements.
4.Welcome to come to our Taian Yuzhuo factoy for visiting and checking machine.
After-Sales Service:
1. Our experienced engineers can offer answers to your technical questions, and in many cases, solve your problems effectively over the phone.
2. Engineers are available to service machines or to train how to use machine overseas.
3. Warranty period is one year, with lifelong after sale service.
4. We would provide parts for free during warranty period if it's caused by quality problem.
FAQ
Q1. How can I choose the most suitable machines ?
A: FOB, CFR and CIF all acceptable.
Q5. What's the Payment Terms ?
A: 30% T/T initial payment as deposit, 70% T/T balance payment before shipment.
Q6. What's the MOQ?
A: MOQ is 1 set.
A: Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Q2. What's the main products of your company?A: We specialized in many kinds of CNC machines, such as Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center and so on.
Q3. Where is the factory located? How can I visit there?A: Our factory is located in Tai’an City, Shandong Province, China. With very convenient transportation access, you can come by airplane or by high speed railway. And warmly welcome you to visit us.
Q4. What is the Trade Terms?A: FOB, CFR and CIF all acceptable.
Q5. What's the Payment Terms ?
A: 30% T/T initial payment as deposit, 70% T/T balance payment before shipment.
Q6. What's the MOQ?
A: MOQ is 1 set.
Contact Us
If any interest about our cnc milling machine, cnc vertical machining center, cnc lathe, wheel repair cnc lathe and pipe threading lathe, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.
