Zigbee Home Automation Industrial Street Lighting Medical Systems Remote zigbee module for lift control
We offer OEM/ODM service for modules, PCB & PCBA manufacturing.
Antenna type | IPEX | 50Ω characteristic impedance |
Operating temperature | -40 ~ +85℃ | - |
Operating humidity | 10% ~ 90% | Relative humidity,No condensation |
Storage temperature | -40 ~ +125℃ | - |
Size | 16.0 * 22.5 mm | - |
Weight | 1.5g | - |
Connector | 3*8*1.27 mm | SMD |
Operation Range | About 1000m | Test condition: clear and open area& 20dBm, antenna gain:5dBi, height: 2m, air data rate: 250kbps |
Communication interface | I/O | See details in Pin definition |
Transmitting length | 1 ~ 103 bytes | For one package |
Receiving length | 1 ~ 103 bytes | For one package |
Product Description
RFS200 is a High Performance and long range PA/LNA versions of ZigBee module with the connection of external antenna and onboard chip antenna which features the SOC + PA solution from TI
User can integrate the module into any device without the need for RF experience and expertise, and complex software engineering.It’s very easy to add powerful Wireless networking capability to your products and quickly bring them to market.
Product use effect
RF4CE remote control systems
Home/Building automation
Lighting systems
Industrial control and monitoring
Low-Power wireless sensor networks
Automatic meter-reading system
M2M Industrial Controls
Wireless Alarms and Security

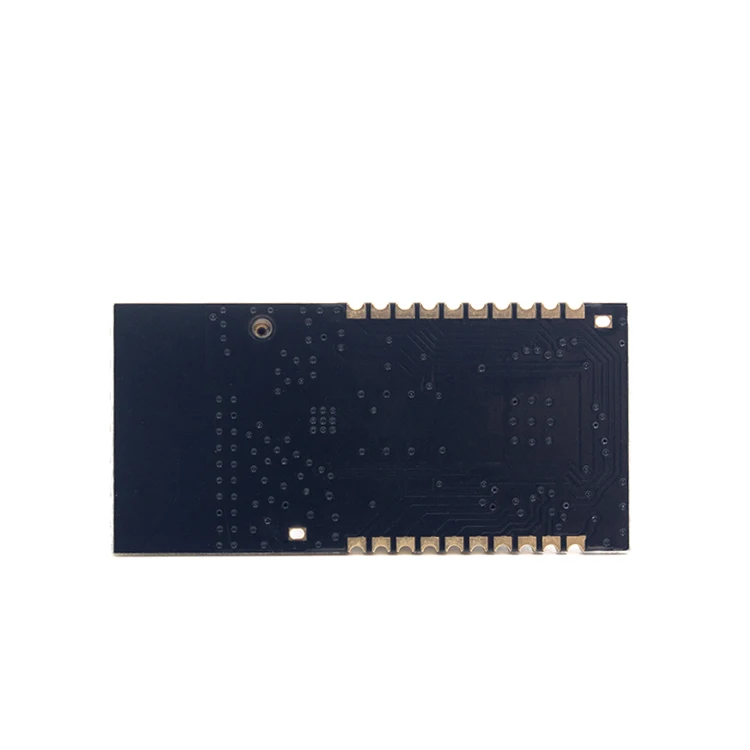

Detailed Images
Radio Feature
Based on the TI CC2530 single chip ZigBee®/IEEE802.15.4 solution 2.4GHz ISM Band
250kbit/s over the air data rate – NB: actual usable data throughput with ZigBee is about 20kbps 16 channels (802.15.4 Channel 11 to 26) Output power: up to 20 dBm (with power amplifier)
Communication range: Up to 1000 meters with external antenna
Based on the TI CC2530 single chip ZigBee®/IEEE802.15.4 solution 2.4GHz ISM Band
250kbit/s over the air data rate – NB: actual usable data throughput with ZigBee is about 20kbps 16 channels (802.15.4 Channel 11 to 26) Output power: up to 20 dBm (with power amplifier)
Communication range: Up to 1000 meters with external antenna
Module Feature
Small Size, SMT module 32 x 15 x 2 mm
Available with an on board antenna or an external antenna
256 KB internal Flash and 8 KB RAM
16 general -purpose I/O lines
Hardware supported encryption (AES-128)
Operating temperature range: -40°C to 80°C
Current consumption below 1µA in deep sleep mode
256 KB internal Flash and 8 KB RAM
16 general -purpose I/O lines
Hardware supported encryption (AES-128)
Operating temperature range: -40°C to 80°C
Current consumption below 1µA in deep sleep mode

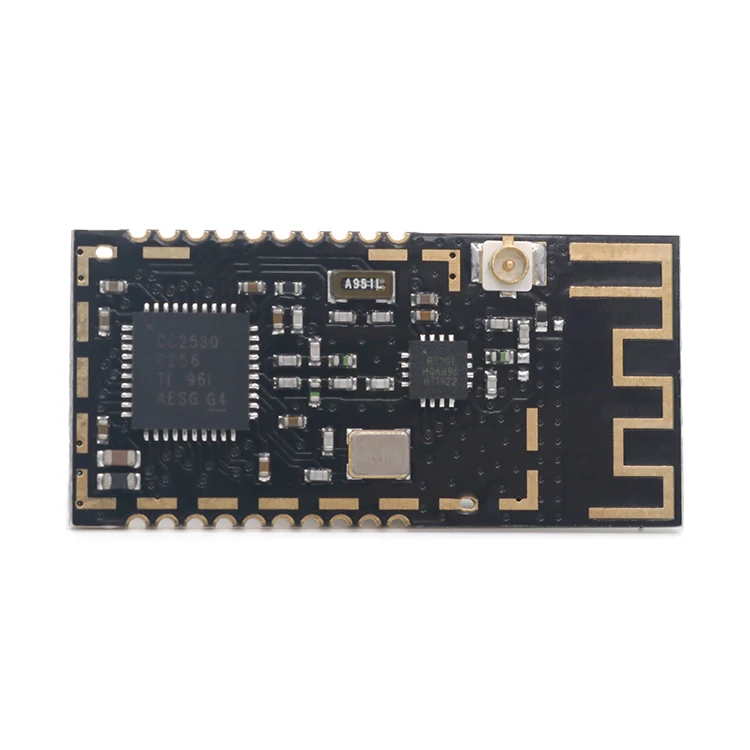

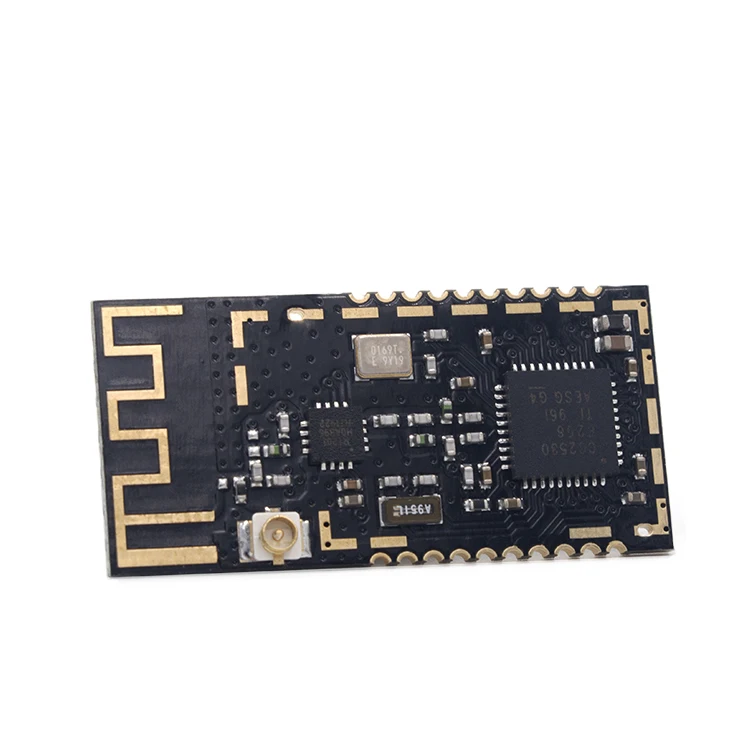

1) Male UFL connector for external antenna
2) Chip antenna
3) RF shield
What we can offer | cc2530 module low cost zigbee module zigbee wall switch module zigbee sensor module zigbee module uart zigbee wireless module 433mhz zigbee module zigbee wifi module zigbee io module low power zigbee module zigbee cc2530 module zigbee lighting module cc2530 zigbee module cheap zigbee module zigbee dimmer module zigbee switch module price of zigbee module zigbee relay module |
