Product Description
The automatic drawer box machine is the third generation of our cown reation with exclusive patent enclosure drawer box machine. The machine adopts modular design concept, and uses independent modular vision manipulator positioning machine to glue the positioning host and molding machine combination. The positioning accuracy is as high as 0.1mm. Suitable for luxury gift box of high quality, appearance, such as high-end wine cosmetics boxes, boxes and other electronic.
Technical Parameters
Paper thickness
157-320g/m2

Cardboard size
L: 250-640mm
W:120-350mm
Cardboard thickness
1-3mm


Finished box size W*L*H
L: 95-160mm
W: 95-160mm
H: 160-320mm
Positioning accuracy
±0,。1mm
Positioning accuracy
16-22pcs/min
Air pressure
0.6-0.8mpa
Power Supply
380V/50Hz/3phases
Line power
23KW
Edge size
15-35mm
Overall size of equipment
L10000*W2250*H1950mm
Product features
1、High precision in visual positioning:
he host LY-485C uses two 5 million pixel industrial cameras plus the manipulator imported from Japan, and the positioning accuracy is ± 0.1mm
2、High precision in forming:
using the visual manipulator to find the straight line position of the platform, directly to the molding machine molding edge, reduce the operation error of the synchronous belt.
3、High accuracy in baseboard positioning:
Using the rotating cylinder to suck the bottom plate to the mold, the cylinder on the mold firmly sucks the bottom plate, and reduces the error caused by the deformation of the bottom plate.
4、Exquisite appearance:
in production and processing, the surface paper is wrapped and stuck, and there are no defects such as overflow glue, virtual Lens, folds, scratches, warping, foaming and so on.
5、Fast production:
production speed reaches 16-22pcs/min;with independent man-machine control system, it has memory function, quick changing and simple operation.
6、The mainframe function is powerful:
the host
can locate the flat board , the stereoscopic box , and can
attach any other molding module, which reduces the cost in buying extra equipment。

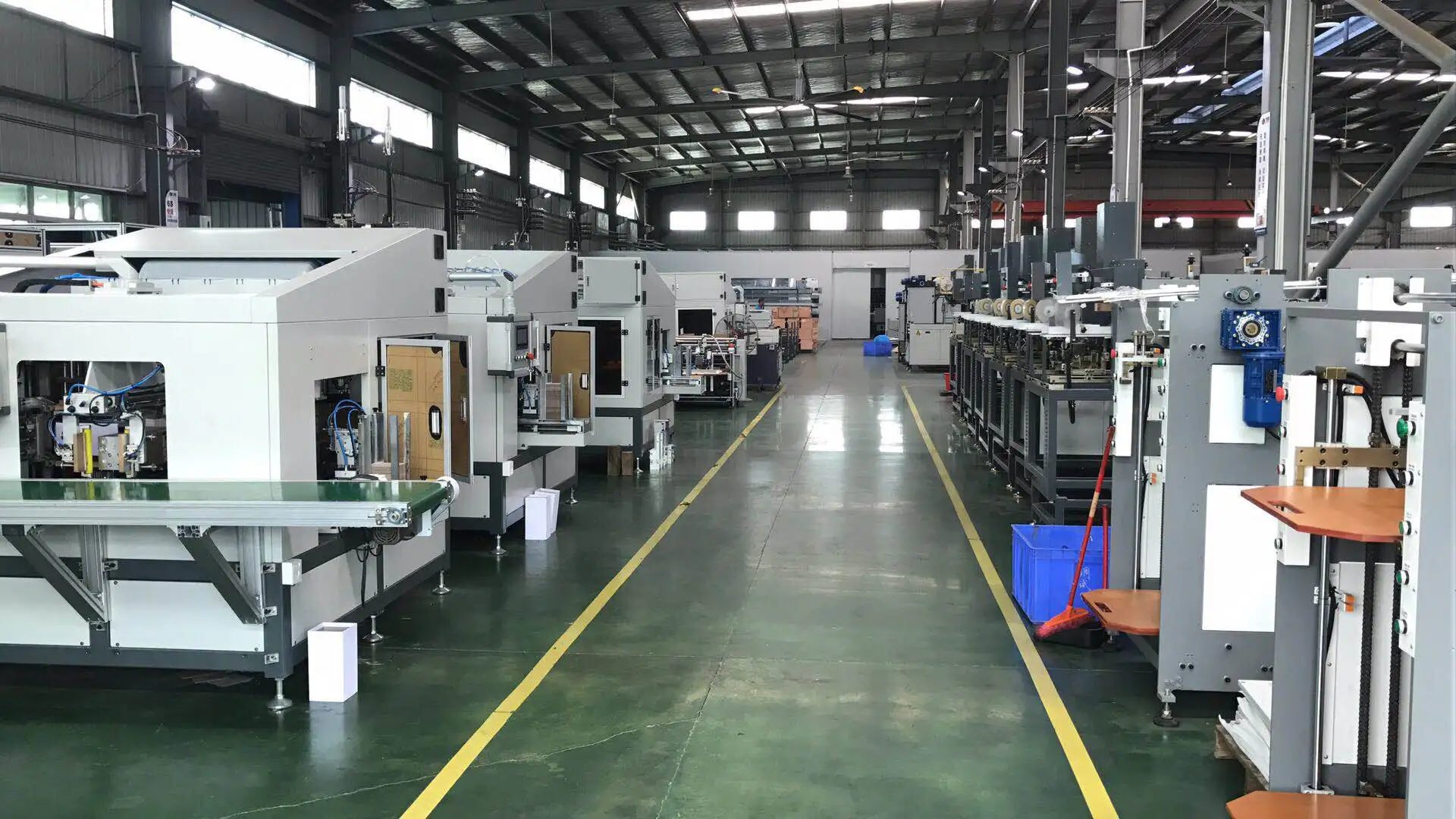

Workshop
Workshop Office Area
Partial Install Area
Packing&Shipping
Film and plywood crate.
Company Introduction
LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters, after 17 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.

Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.

Lishunyuan adheres to the development concept of “customer first, service to the world” and adheres to the development strategy of “keep improving and bring forth the old and new”. Lishunyuan devotes itself to the development of new products with high performance and high efficiency in the industry and leads the rapid development of intelligent automation in the industry.
Our Services & Strength
We have competitive machines, the quality team and the thoughtful service. Lishunyuan emphasizes on giving complete support to our customers, from consultation and development of the machine as per client requirements, to production of the box machine and providing extensive after sales service.Dedicated to providing the highest production rates, maximum accuracy and consistent pouch quality of boutique boxes as per each individual client’s requirements.
Certifications
Exhibition
Contact Information
Phone：0769-88116769
Mobile：+86-139 2585 9535
mail: evian@dglyjx.com
Website: http://www.dglyjx.com
