Latest Nema 34 Ce Closed Loop Servo Motor Supplier China
Product Description
You Must Know Before Order
Dear Customers, Thanks for visiting our website and product. In order to have a better understanding of our product ,
please allow us to remind you with following two tips :
- (1) We set up the price based on different quantity , please contact our sales with your estimated order quantity so we can quote you accordingly .
- (2) The above price is not shipping included , please tell us your delivery address for shipping cost quote if you don't have your own carrier or forwarder.
Contact Supplier Get More Detail
Product Features:
- 1. 15-bit absolute encoder, up to 32768 pulses per loop.
- 2. Multi-turn absolute value, the maximum record is 65,535.(batteries needed).Pulse mode: reenergize automatically return to power off position.
- Communication mode: power off to record location.
- 3. Multi-stage DD motor structure, large torque output.

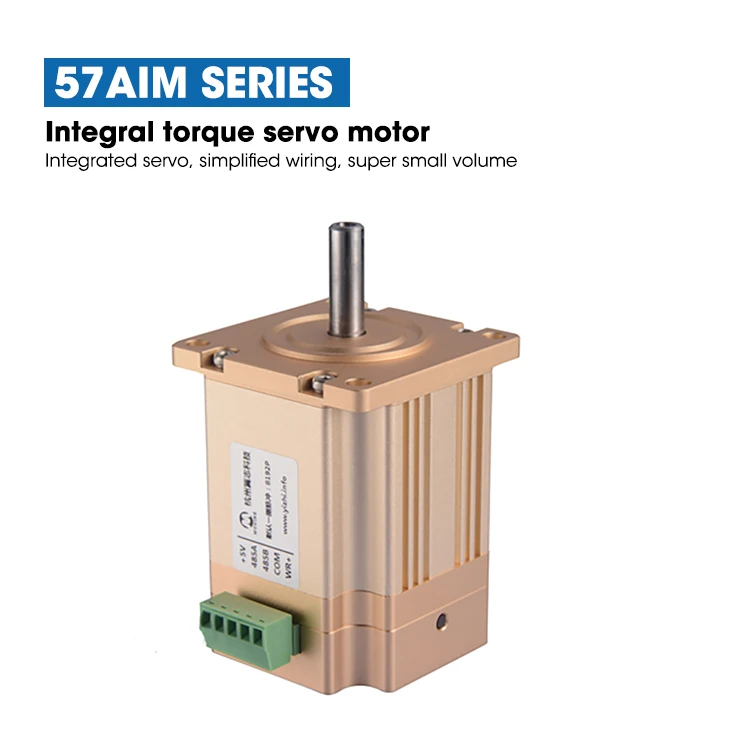

- 4. Integrated servo, simplified wiring, ultra-small volume.
- 5. Low noise, low vibration, high speed positioning, high reliability.
- 6. FOC field oriented vector control, supporting position/velocity closed-loop.
- 7. It can work in the given pulse state with zero lag and follow zero lag.
- 8. 16-bit electronic gear function.
- 9. Modbus RTU communication (1920, 8,N,1).
- 10. Position mode, support pulse + direction signal
- 11. With blocked rotation, overcurrent protection, overpressure protection.
| 57AIM15 | 57AIM15B | 57AIM30 | 57AIM30B | |
Driver | Voltage | 24~36VDC | 24~36VDC | 24~36VDC | 24~36VDC |
Rated current(A) | 2.2A | 2.2A | 4.4A | 4.4A | |
Motor data | Rated torque(N.m) | 0.48NM | 0.24NM | 0.96NM | 0.48NM |
Rated speed (rpm) | 1000RPM | 2500RPM | 1000RPM | 2500RPM | |
Max torque(N.m) | 1500RPM | 3000RPM | 1500RPM | 3000RPM | |
Power | 50W | 50W | 100W | 100W | |
resistors | 2.65Ω | 2.65Ω | 1.3Ω | 1.3Ω | |
Feedback signal | Multi-coil absolute value encoder | ||||
Cooling mode | natural cooling | ||||
Maximum input pulse frequency | 500KHz | ||||
Communication interface | RS485(modbusRTU 19200,8,N,1) | ||||
Working | Temperature | 0~40° | |||
Max temperature | 85° | ||||
Humidity | 5~95% | ||||

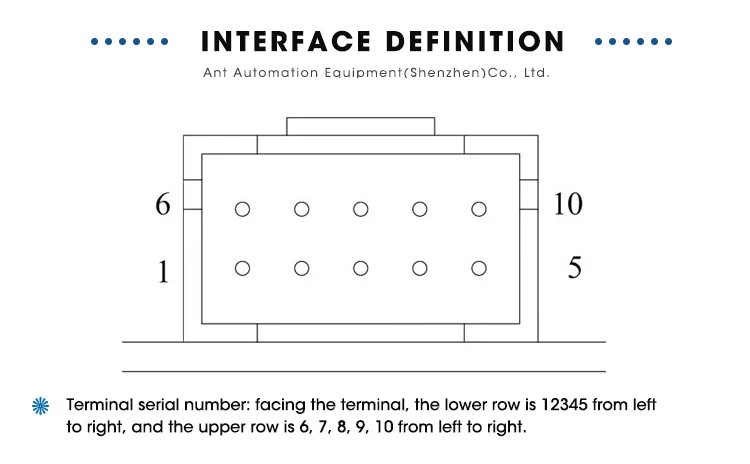

Terminal serial | Name | Function |
1 | NC | / |
2 | 485A | 485 positive communication terminal |
3 | 485B | 485 communication negative terminal |
4 | NC | / |
5 | NC | / |
6 | COM | The output signal is public with 485 power supply. |
7 | WR | Alarm signal output, internally for photocoupler NPN output. Normally, it is in |
8 | RDY/PF | Servo ready signal / in-position signal. There is a signal (conduction) after power-on automatic operation, when the following error is less than 0.5 ° |
9 | ZO | Encoder zero output. There is a zero-point signal optocoupler NPN output on signal. |
10 | 485_5V | 485 communication 5V power supply requires external power supply. |
Our Services
- Pro-Sale Service:
1. Good Quality / Factory Price / Quick Response Reliable Service, is our working faith.
2. Professional and High efficient foreign sale- team, Reply your Alibaba inquiry and trade massages in 6 working hours, you can totally believe our service.
- Middle-Sale Service:
1. Checking the most suitable shipping ways for customers.
2. Testing quality again before sending goods.
3. Sending the tracking numberbil of loading. and update the situations of the goods customers receive the goods
- After-Sale Service:
1. We are very glad that customer give us some suggestion for price and products.
2. If have any question, please contact with us freely by E-mail or Telephone for more details.
Company Information
Ant Automation Equipment (Shenzhen) Co., Ltd. is a high-tech enterprise specializing in the research and development, production, sales and service of industrial automation equipment. The company introduced advanced technology from developed countries and combined with its many years of industry experience, developed and developed a series of industrial automation control products. The current product line has covered robots arm, harmonic reducers, servo motors, and industrial control systems. Users are involved in food, pharmaceutical and other industries.
The company has established a huge sales and service network in China to provide our customers with timely and thoughtful services.
If you need any favorable or fast shipping
Welcome to contact us
FAQ
Q: Are you a factory?
A: Yes,we are factory,have more than 10 years experience;
Q: What is your MOQ;
A: At present, our MOQ is 1 set;
Q: How long is the delivery time?
A: In general, the delivery time is 15 days for 1 set.
Q: What is your guarantee term?
A: The warranty period for our products is one year along with lift time technical support.
Q: Are you manufacturer or trading company?
A: We are manufacturer for automation robot in Shenzhen city, China.
Q: How about your after-sale service?
A: We provide technical support via online communication.Moreover, if you need, we can also send our technical staff for onsite installation or debugging. Welcom to you visit our company to learn and check the robot.
Q: What is your payment term?
A: The payment method is 50% prepayment, 50% balance before cargo delivery.
